Roborock F25 RT Wireless Wet Dry Vacuum Cleaner User Manual

1. Bubuka

Thank you for choosing the Roborock F25 RT Wireless Wet Dry Vacuum Cleaner. This 3-in-1 cordless floor cleaner is designed to simplify your cleaning routine by vacuuming, mopping, and self-cleaning in one efficient process. It delivers powerful suction and rotation to effectively tackle daily messes and deep grime on various hard floor surfaces, including tile, hardwood, vinyl, and sealed floors.

The F25 RT features a lightweight design, flexible maneuverability, and advanced self-cleaning capabilities to ensure a fresh and hygienic cleaning experience. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Émbaran Kasalametan

Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat listrik pikeun ngirangan résiko kahuruan, kejutan listrik, atanapi tatu.

• Baca sadaya parentah sateuacan nganggo alat.
• Do not immerse the appliance, charging dock, or adapter in water or other liquids.
• Use only the manufacturer-specified charging adapter.
• Ulah nganggo alat ieu pikeun nyokot cairan anu gampang kaduruk atanapi kaduruk, atanapi naon waé anu kaduruk atanapi ngebul.
• Jauhkeun rambut, pakean longgar, ramo, sareng sadaya bagian awak tina bukaan sareng bagian anu obah.
• Ensure the dirty water tank and filter are properly installed before operation.
• This appliance is for household use only. Do not use outdoors or on wet surfaces other than those intended for wet cleaning.
• Ngawaskeun barudak sareng mastikeun aranjeunna henteu maén sareng alatna.

3. Eusi Paket

Pastikeun yén sadaya komponén aya dina bungkusan:

• Roborock F25 RT Main Unit
• Majelis Pakem
• Ngecas Dock
• Adaptor kakuatan
• Sikat beberesih
• Alat celah
• Manual pamaké

4. Produk Langkungview

Familiarize yourself with the main components and features of your Roborock F25 RT.

Gambar: Leuwihview of Roborock F25 RT key features, including powerful suction, hot water self-cleaning, lie-flat design, and tangle-free performance.

Image: The Roborock F25 RT main unit, showcasing desain sareng komponénna sacara umum.

5. Setélan

5.1 Majelis

1. Pasang gagang: Selapkeun rakitan gagang kana unit utama dugi ka ngaklik pageuh kana tempatna.
2. Tempatkeun Dok Pangisi Daya: Position the charging dock on a flat, stable surface near a power outlet. Ensure there is enough space around it for easy access.

5.2 Ngecas

1. Sambungkeun adaptor daya kana dok ngecas teras colokkeun kana stop kontak témbok.
2. Place the Roborock F25 RT onto the charging dock. The indicator lights will show the charging status. Fully charge the device before first use.

5.3 Ngeusian Tangki Cai Beresih

1. Remove the clean water tank (located at the bottom of the unit).
2. Open the tank cap and fill it with clean tap water. For optimal cleaning, you may add a small amount of Roborock cleaning solution or a low-foaming, diluted floor cleaner. Avoid high-foaming solutions to prevent damage.
3. Close the cap securely and reattach the tank to the main unit.

6. Parentah Operasi

6.1 Powering on / Pareum

• To power on, press and hold the power button on the handle.
• Pikeun mareuman, pencét jeung tahan deui tombol daya.

6.2 Modeu beberesih

The F25 RT offers different cleaning modes for various needs:

• Modeu Eco: For light cleaning and extended battery life (up to 35-40 minutes).
• Modeu Turbo: For stubborn stains and deep cleaning. Note that this mode consumes more battery power.

Pindah antara mode ngagunakeun tombol pilihan mode dina cecekelan.

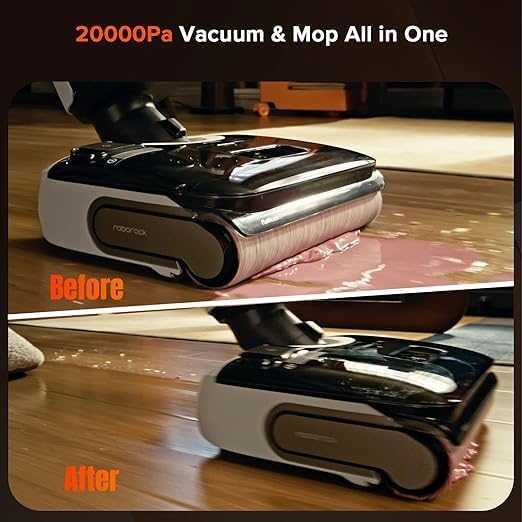

Image: Demonstrates the Roborock F25 RT's ability to vacuum and mop, showing a 'before' and 'after' cleaning scenario.

6.3 Maneuverability and Edge Cleaning

The F25 RT is designed for easy navigation:

• Desain Ngagoler 180°: Allows the cleaner to reach under low furniture like sofas and beds with ease.
• 70° Swivel Steering: Provides flexible movement around obstacles and into tight corners.
• Triple Edge Cleaning: The brush head is designed to clean close to edges (less than 0.03 inches), ensuring thorough cleaning along walls and baseboards.

Image: The Roborock F25 RT in its 180-degree lie-flat position, illustrating its capability to clean under low-clearance areas.

Image: A user easily pushing the Roborock F25 RT, emphasizing its lightweight (8.8 lbs) and flexible 70-degree swivel design.

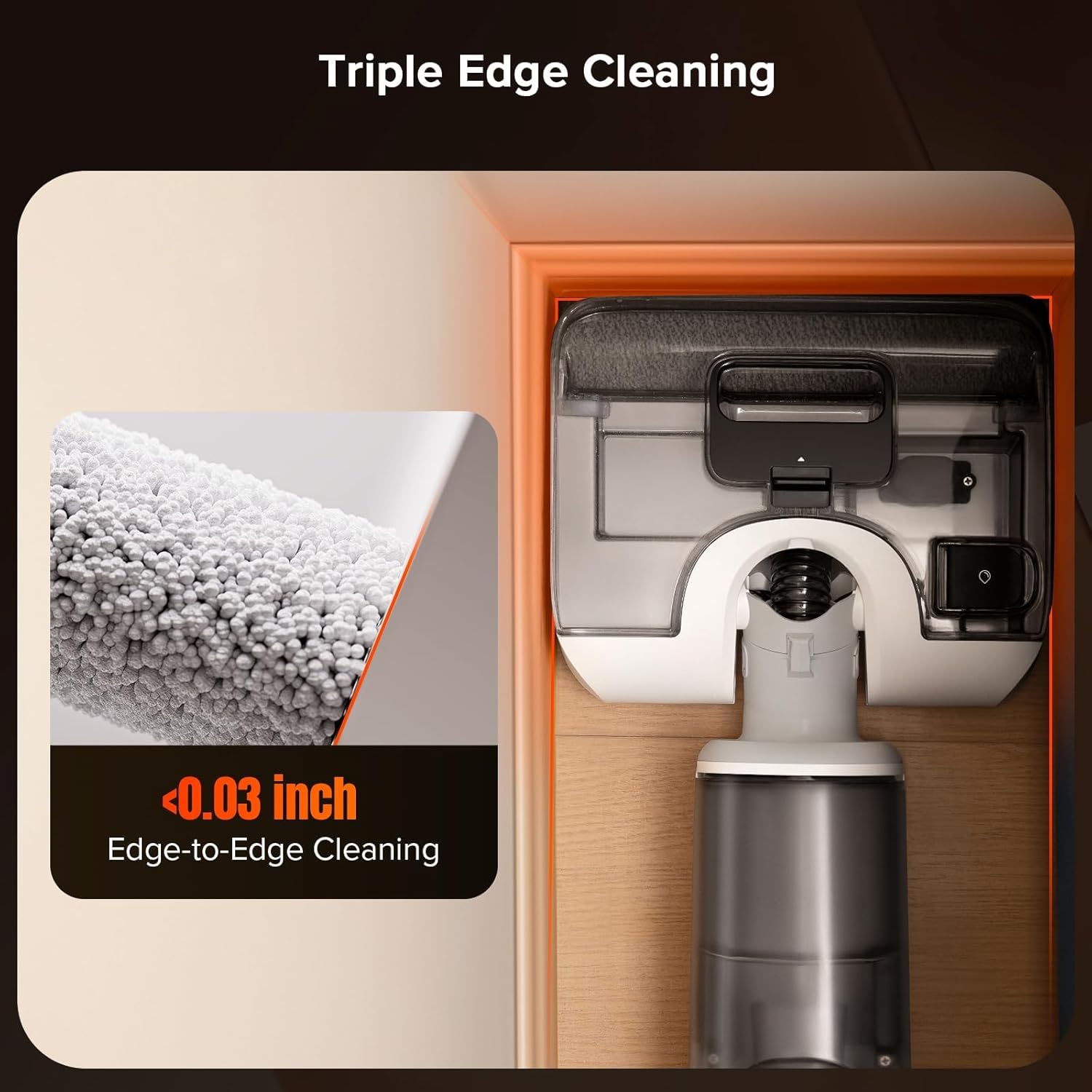

Gambar: Deukeut view of the Roborock F25 RT's brush head demonstrating its triple edge cleaning capability, reaching within 0.03 inches of edges.

7. Pangropéa

Regular maintenance ensures optimal performance and extends the lifespan of your Roborock F25 RT.

7.1 Siklus ngabersihan diri

1. After each cleaning session, place the F25 RT back on its charging dock.
2. Initiate the self-cleaning cycle (refer to the device's display or specific button for activation). The device will use 194°F (90°C) hot water to clean the roller brush and internal pathways.

7.2 Hot Air Drying

Following the self-cleaning cycle, the hot air drying system will activate to dry the roller brush, preventing odors and bacterial growth.

Image: Illustrates the Roborock F25 RT's self-cleaning process using 194°F hot water and subsequent hot air drying for the roller brush.

7.3 Ngosongkeun Tangki Cai Kotor

Kosongkeun tangki cai kotor saatos dianggo pikeun nyegah bau sareng ngajaga kabersihan.

1. Cabut tank cai kotor tina unit utama.
2. Buka tangkina kalawan ati-ati teras miceun cai kotorna.
3. Bilas tank tuntas ku cai bersih.
4. Pasang deui bak cai kotor.

7.4 Ngabersihkeun Sikat Rol sareng Filter

The F25 RT features dual scrapers to prevent hair tangles. Periodically inspect and clean the roller brush and filter manually.

Image: Close-up of the Roborock F25 RT's dual scrapers working to prevent hair tangles on the roller brush, ensuring streak-free cleaning.

• Remove the roller brush cover and then the roller brush.
• Use the provided cleaning tool to remove any tangled hair or debris from the brush.
• Bilas sikat rol dina cai ngocor.
• Remove the filter from the dirty water tank and rinse it. Allow both the brush and filter to air dry completely before reinstallation.

8. Cara ngungkulan

If you encounter issues with your Roborock F25 RT, refer to the following common problems and solutions:

If the problem persists, please contact Roborock customer support for assistance.

9. Spésifikasi

Key technical specifications for the Roborock F25 RT:

• merek: Roborock
• model: F25 RT
• Daya nyeuseup: 20000 Pa
• Brush Rotation Speed: 450 rpm
• Runtime: Nepi ka 40 menit (mode Eco)
• Kapasitas Tangki Cai Bersih: 900 ml
• Voltage: 120 volt
• Beurat barang: 7.6 kg (kira-kira 16.7 lbs)
• Fitur husus: Lightweight, 180° Lie-Flat Design, 70° Swivel Steering, Hot Water Self-Cleaning (90°C/194°F), Hot Air Drying, Triple Edge Cleaning, Dual Scrapers
• Permukaan anu disarankeun: All hard floors

Image: Details the Roborock F25 RT's battery life (up to 35 minutes) and clean water tank capacity (870ml), based on Eco mode data.

10. Émbaran jaminan

The Roborock F25 RT comes with a standard manufacturer's warranty. The duration and terms of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.

For detailed warranty information, including coverage and how to make a claim, please refer to the official Roborock websitus atanapi hubungi dealer resmi lokal anjeun.

11. Rojongan

For further assistance, technical support, or to purchase replacement parts and accessories, please contact Roborock customer service:

• Websitus: Visit the official Roborock websitus pikeun FAQ, artikel dukungan, sareng pilihan kontak.
• Email/Telepon: Refer to the contact information provided on the Roborock websitus atawa dina bungkusan produk Anjeun pikeun rojongan régional.

Always provide your product model (F25 RT) and serial number when contacting support to expedite service.
