This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Eleglide T2 Electric Bicycle. Please read this manual thoroughly before your first ride and keep it for future reference.
Image: The Eleglide T2 Electric Bicycle, showcasing desain sareng komponénna sacara umum.
Pedoman Kasalametan
Kasalametan Umum
- Salawasna make helm jeung gear kaamanan luyu.
- Biasakeun diri sareng undang-undang sareng peraturan lalu lintas lokal.
- Laksanakeun pamariksaan sateuacan numpak sateuacan unggal dianggo.
- Ulah numpak dina pangaruh alkohol atawa narkoba.
- Ensure proper lighting for night riding. The T2 features StVZO certified lighting for enhanced visibility without glare.
Sistem ngerem
The Eleglide T2 is equipped with premium hydraulic disc brakes. These brakes offer superior control, increased braking effort, and a 30% shorter braking distance compared to traditional mechanical brakes. The sealed hydraulic system is less prone to contamination, wear, or damage, ensuring longer lifespan and minimal maintenance.
Gambar: Deukeut view of the hydraulic disc brake system on the Eleglide T2, highlighting its advanced design for safer stopping.
Komponén Langkungview
The Eleglide T2 Electric Bicycle is designed with high-quality components for optimal performance and comfort.
Komponén konci:
- Pigura: Durable stainless steel frame (STL).
- Motor: 250W, 36V brushless hub motor with 45 N.M max torque.
- Batré: Removable 36V, 13Ah (468Wh) lithium-ion battery.
- Rem: Hydraulic disc brakes with automatic stop system.
- Suspensi: Front suspension fork with lockout feature (80mm travel).
- Gears: Shimano professional 7-speed derailleur.
- Ban: 27.5" x 2.1" pneumatic rubber tires.
- tampilan: Smart LCD display.
- Sadel: Soft padded saddle.
- Rak: Sturdy luggage rack.

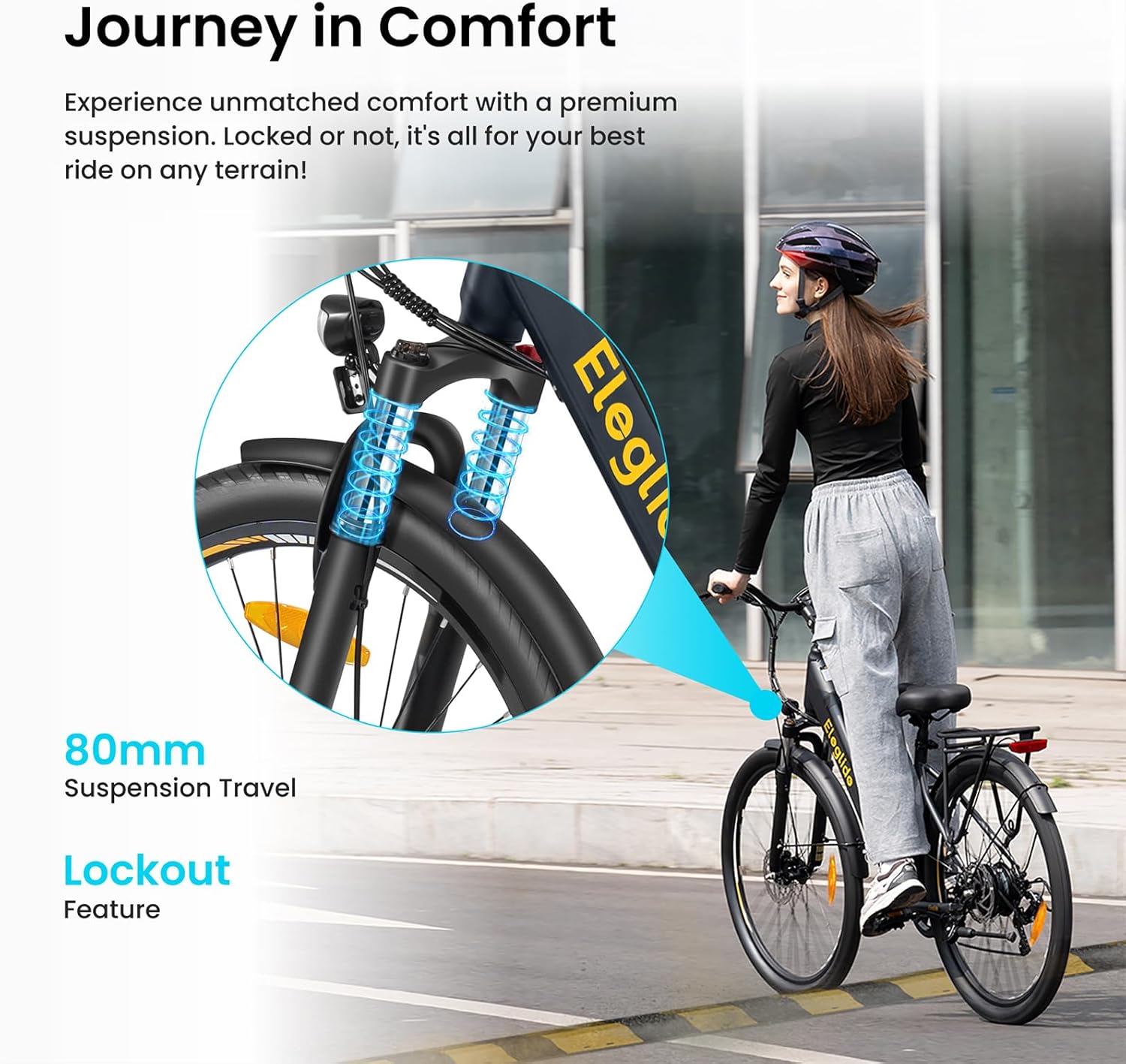

Image: Front suspension fork of the Eleglide T2, illustrating its 80mm travel and lockout feature for varied terrains.

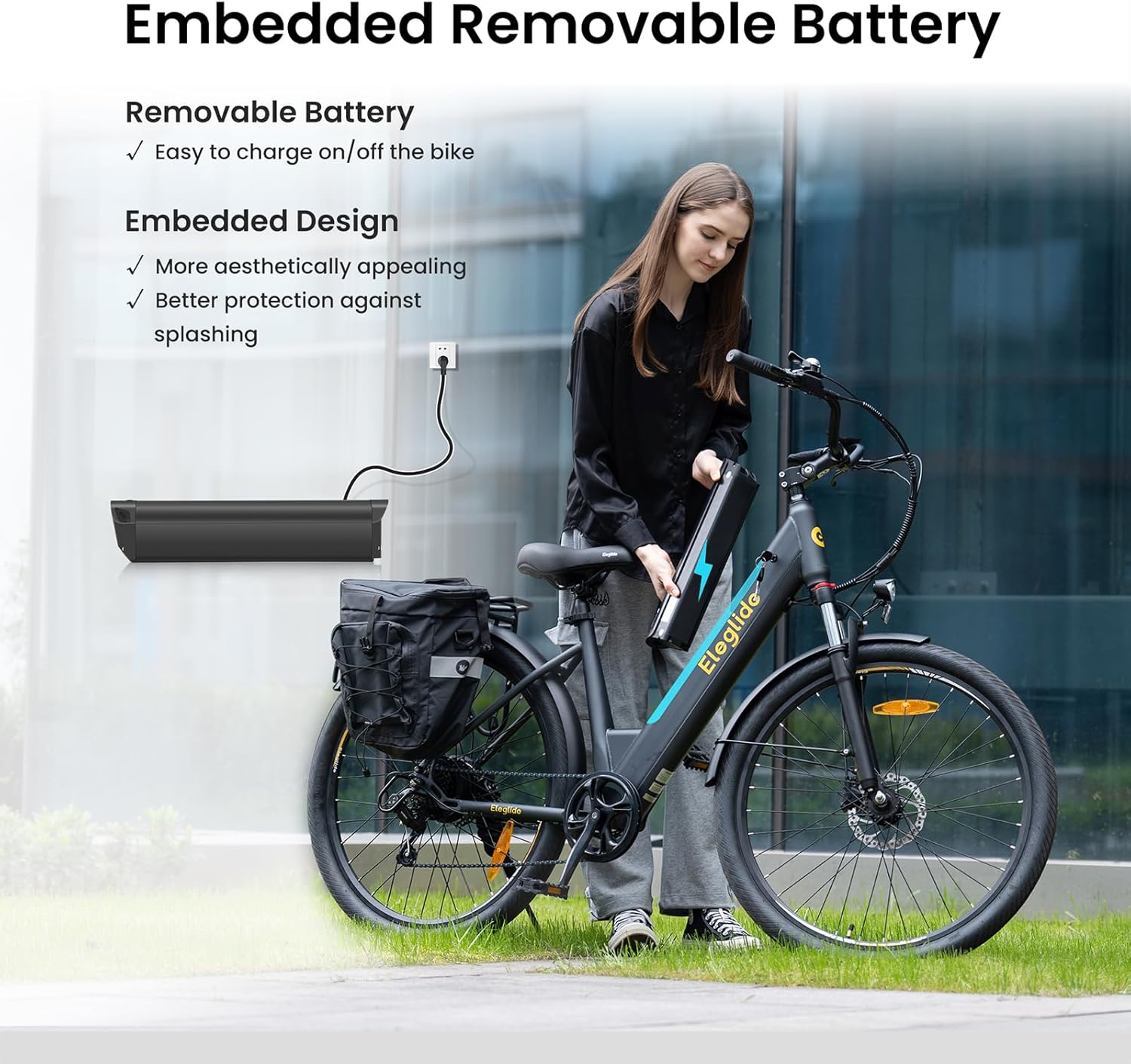

Image: The removable 468Wh battery of the Eleglide T2, showing how it can be charged on or off the bike.
Gambar: Detil view of the Eleglide T2's smart LCD display, 27.5" pneumatic tires, sturdy luggage rack, and soft padded saddle.
Setup sareng Majelis
Your Eleglide T2 Electric Bicycle comes partially assembled. Please follow these general steps for final assembly. A detailed user manual and tool kit are included with your purchase.
Léngkah awal:
- Ngabongkar bungkusan: Sacara saksama miceun sadaya komponén tina bungkusan.
- Pamasangan Handlebar: Attach and secure the handlebar. Ensure all bolts are tightened to the recommended torque.
- Kantétan pedal: Identify left (L) and right (R) pedals and screw them into the crank arms. Note that the left pedal has a reverse thread.
- Penyesuaian Pos Korsi: Insert the seat post into the frame and adjust the saddle height for comfortable riding. The T2 allows for flexible adjustments of seat height (32.7"-43.3") and stem angle (10°-50°), with a handlebar height range of 46.1"-47.2".
- Inflasi ban: Inflate tires to the recommended pressure (30-45 psi).
- Pamasangan batré: Insert the battery securely into its compartment.
- Pariksa Pra-Naik: Before your first ride, double-check all connections, brakes, and tire pressure.
Image: Diagram illustrating the adjustable seat height, stem angle, and handlebar height for ergonomic riding posture on the Eleglide T2.
Parentah Operasi
Ngahurungkeun/Pareuman
Press and hold the power button on the smart LCD display to turn the bicycle on or off.
Tingkat Pitulung Pedal
The Eleglide T2 offers 5 levels of pedal assistance, allowing you to choose your desired speed: 12, 15, 18, 21, and 25 km/h. Use the controls on the display to cycle through these levels.
Mode Leumpang
Activate the 6 km/h walk mode for easy maneuvering when not riding.
Pindah gear
Utilize the professional Shimano 7-speed derailleur to adapt to various terrains and riding conditions. Shift gears smoothly to maintain an optimal pedaling cadence.
Smart LCD Display & App Control
The intelligent LCD screen provides real-time information including speed, distance traveled, and battery level. For enhanced control, download the Eleglide smartphone application. The app allows for remote locking, password setting, screen timeout adjustment, and more, providing a comprehensive riding experience.
Image: Visual representation of the Eleglide T2's impressive 100km (62 miles) maximum range in assist mode, powered by its 36V 13Ah (468Wh) removable battery.
Pangropéa
Regular maintenance ensures the longevity and safe operation of your Eleglide T2 Electric Bicycle.
Perawatan batré:
- Ngeusi batre sapinuhnya sateuacan dianggo heula.
- Ulah ngeusi batre leuwih atawa lengkep solokan batréna.
- Simpen batréna di tempat anu tiis sareng garing upami henteu dianggo.
- The integrated design of the battery offers better protection against splashing.
Sistem rem:
- Regularly inspect brake pads for wear and replace as needed.
- Check hydraulic fluid levels periodically.
- Ensure brake levers provide firm and responsive braking.
Ban:
- Maintain tire pressure between 30-45 psi for optimal performance and safety.
- Pariksa ban naha aya nu motong, bocor, atawa geus aus kaleuleuwihi.
beberesih umum:
Ngabersihan sapédah sacara teratur nganggo iklanamp lawon. Ulah nganggo semprotan cai tekanan tinggi langsung kana komponén listrik.
Pamérésan masalah
This section addresses common issues you might encounter with your Eleglide T2 Electric Bicycle. For problems not listed here, please contact customer support.
Masalah umum:
- Henteu aya kakuatan:
Check if the battery is fully charged and properly seated. Ensure the power button on the display is pressed correctly.
- Motor teu mantuan:
Verify that pedal assist mode is activated and not in walk mode. Check for any error codes on the LCD display. Ensure the cadence sensor is clean and unobstructed.
- Brakes Feel Spongy:
This may indicate air in the hydraulic lines or worn brake pads. Consult a professional bicycle mechanic for hydraulic brake bleeding or pad replacement.
- Sora anu teu biasa:
Inspect for loose components, chain issues, or debris in the drivetrain. Lubricate the chain regularly.
- Tampilan Teu Gawé:
Check battery connection and ensure the display cable is securely connected. If the issue persists, contact support.
Spésifikasi teknis
Detailed specifications for the Eleglide T2 Electric Bicycle.
| Fitur | Spésifikasi |
|---|---|
| Beurat bersih | 27.9 kg |
| Diménsi Unfolded | 1800 x 670 x 1100 mm |
| Diménsi pigura | 27.5 x 17.5 inci |
| Dianjurkeun Rider Jangkungna | 160-195 cm (5' 3"-6' 5") |
| Beban maksimum | 120 kg (264.5 lb) |
| Bates Kacepetan | 25 km/h |
| Maximum Range (Assist Mode) | 100 km |
| Tingkat Pitulung Pedal | 12/15/18/21/25 km/h |
| Mode Leumpang | 6 km/h |
| Waterproofing | IPX4 |
| Bahan Pigura | Stainless Steel (STL) |
| Sistem ngerem | Hydraulic Disc Brakes with Automatic Stop |
| Tipe Motor | Hub Unpad |
| Motor Rated Power & Voltage | 250 W, 36 V |
| Maximum Output Torque | 45 NM |
| Derailleur Speeds | 7 (Belakang) |
| Jinis gantung | Garpu Gantung sareng Lockout |
| Perjalanan gantung | 80 mm |
| Batré Voltage & Capacity | 36 v,13 ahk |
| Waktu Ngeusi batre | 6.5 jam |
| Battery Energy Capacity | 468 wh |
| System Protection batré | Sumuhun |
| Tire Dimensions | 27.5 inci x 2.1 inci |
| Tipe Tirus | Karét Pneumatik |
| Tekanan Ban | 30-45 psi |
Image: Detailed diagram showing the dimensions and recommended rider height for the Eleglide T2 Electric Bicycle.
Garansi sareng Rojongan
Eleglide provides a standard warranty for the T2 Electric Bicycle. Please refer to the warranty card included with your product for specific terms and conditions, including coverage duration and claim procedures.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Eleglide customer support through their official websitus atanapi inpormasi kontak anu disayogikeun dina dokuméntasi pameseran anjeun.
Pabrikan: Eleglide
