1. Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your DASAN AT249W-ORB Wall Mount Shower System. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your shower system.
2. Émbaran Kasalametan
- Salawasna pareumkeun suplai cai utama sateuacan ngamimitian padamelan pipa.
- Anggo alat pelindung pribadi anu pas, sapertos kacamata kaamanan sareng sarung tangan.
- Upami anjeun henteu yakin kana bagian mana waé tina prosés pamasangan, konsultasi ka tukang ledeng anu mumpuni.
- Pastikeun sadaya sambungan aman pikeun nyegah bocor.
- Ulah overighten komponén, sabab ieu bisa ngabalukarkeun karuksakan.
3. Eusi Paket
Verify that all components are present and undamaged before installation. If any parts are missing or damaged, please contact customer support.
Gambar: Ngabeledug view of the DASAN AT249W-ORB shower system components.
- Sirah Pancuran
- Lempeng raray
- Klep kasar
- Pancuran Panangan
- Handheld Wand
- Tembok Supply Siku
- Body Jets (4 units)
- Shower Handle
- Pamasangan Hardware
- Knob diverter
- Flange for Handheld
- Selang Pancuran (59 inci)
- Flange for Shower Arm
4. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | Dasan |
| Nomer modél | AT249W-ORB |
| Warna | Minyak Digosok Perunggu |
| Bahan | Kuningan, Baja stainless |
| Tipe rengse | Matte |
| Jumlah gagang | 1 |
| Tipe Pamasangan | Dipasang témbok |
| Laju Ngalir | 1.8 GPM |
| Ukuran Kepala Pancuran | 9 inci |
| Panjang Selang Pancuran | 59 inci |
| In-Wall Depth (Min-Max) | 2-3/16" (55 mm) to 3-1/16" (78 mm) |
| Sambungan | 1/2" Male NPT |

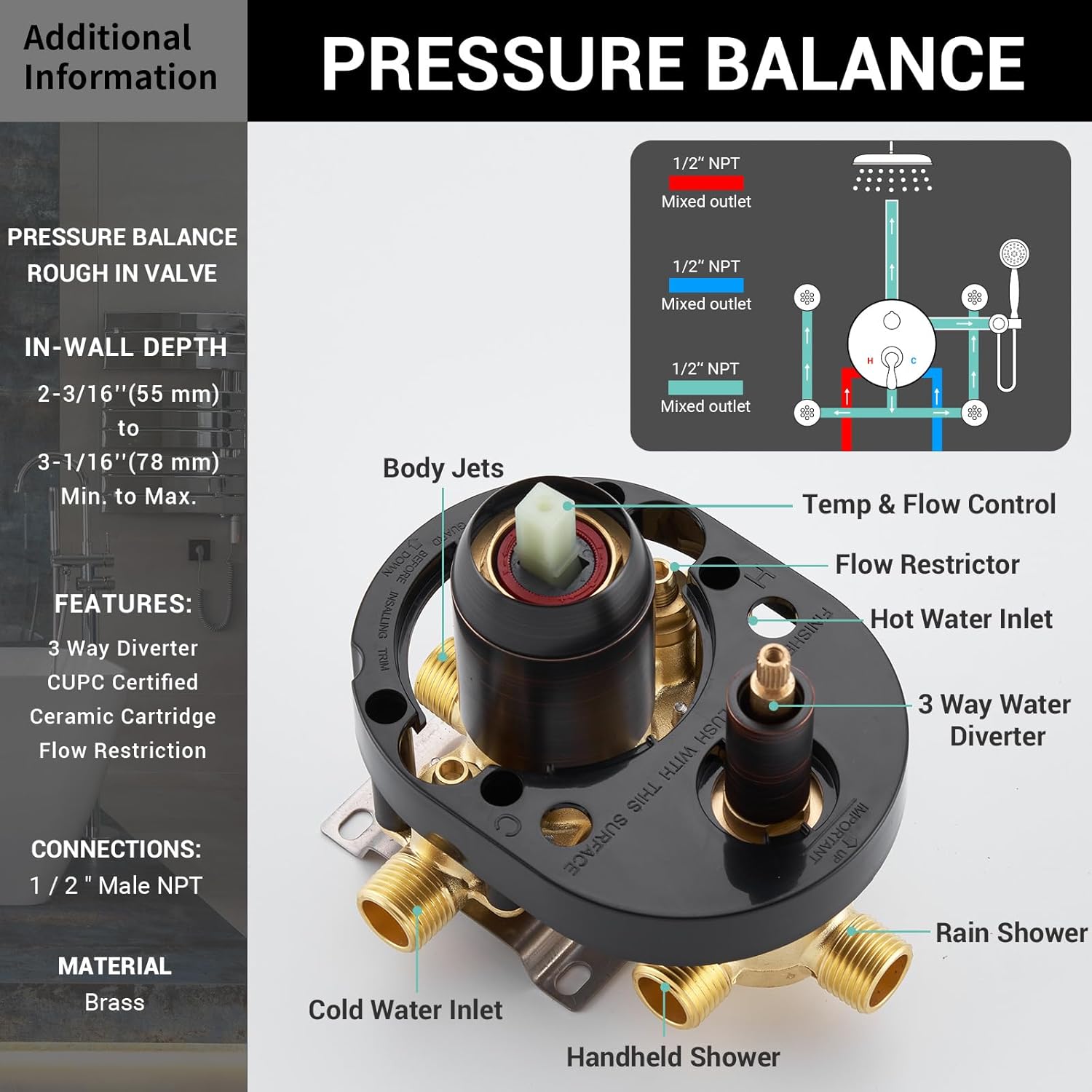

Image: Pressure balance rough-in valve details, including in-wall depth and connections.
5. Parentah instalasi
It is recommended to have this product installed by a professional plumber. Ensure the main water supply is turned off before proceeding.
5.1 Léngkah-léngkah Pra-Pamasangan
- Pastikeun sadaya eusi bungkusan aya sareng henteu ruksak.
- Prepare the wall opening according to the rough-in valve dimensions, ensuring the in-wall depth is between 2-3/16" (55 mm) and 3-1/16" (78 mm).
- Flush the water lines to remove any debris before connecting the valve.
5.2 Rough-in Valve Installation
- Mount the rough-in valve (3) securely within the wall, ensuring it is level and at the correct depth.
- Connect the hot and cold water supply lines to the designated inlets on the valve (1/2" NPT connections).
- Connect the mixed outlets from the valve to the rain shower, handheld shower, and body jet supply lines.
- Perform a leak test by turning on the main water supply and checking all connections.
5.3 Pamasangan komponén
- Shower Arm and Head: Install the shower arm (4) into the wall outlet, ensuring it is securely tightened. Attach the shower head (1) to the shower arm.
- Pancuran genggam: Install the wall supply elbow (6) for the handheld shower. Connect the shower hose (12) to the wall supply elbow and the handheld wand (5). Mount the flange (11) for the handheld.
- Jet Awak: Install the body jets (7) into their respective wall outlets. Ensure they are securely tightened and oriented as desired.
- Face Plate and Handle: Install the face plate (2) over the rough-in valve. Attach the shower handle (8) and diverter knob (10) according to the valve's instructions, securing them with the provided mounting hardware (9).
Gambar: Leuwihview of the assembled DASAN AT249W-ORB shower system.
6. Parentah Operasi
Your DASAN shower system offers multiple functions for a customized showering experience.
Image: Control functions for the shower system.
6.1 Kontrol Suhu sareng Aliran
- The main handle controls both water temperature and flow.
- Rotate the handle to adjust the temperature from cold to hot.
- Pull the handle outwards to increase water flow and push inwards to decrease it.
6.2 Function Selection (Diverter Knob)
The diverter knob allows you to switch between the rain shower, handheld shower, and body jets.
- Pancuran Hujan: Rotate the diverter knob to activate the overhead rain shower. The 9-inch shower head provides broad coverage.
- Pancuran genggam: Rotate the diverter knob to activate the handheld shower. The 59-inch hose allows for flexible use.
- Jet Awak: Rotate the diverter knob to activate the body spray jets. These jets feature a 360-degree adjustable angle for targeted water flow.
Image: Rain shower head with adjustable angle feature.

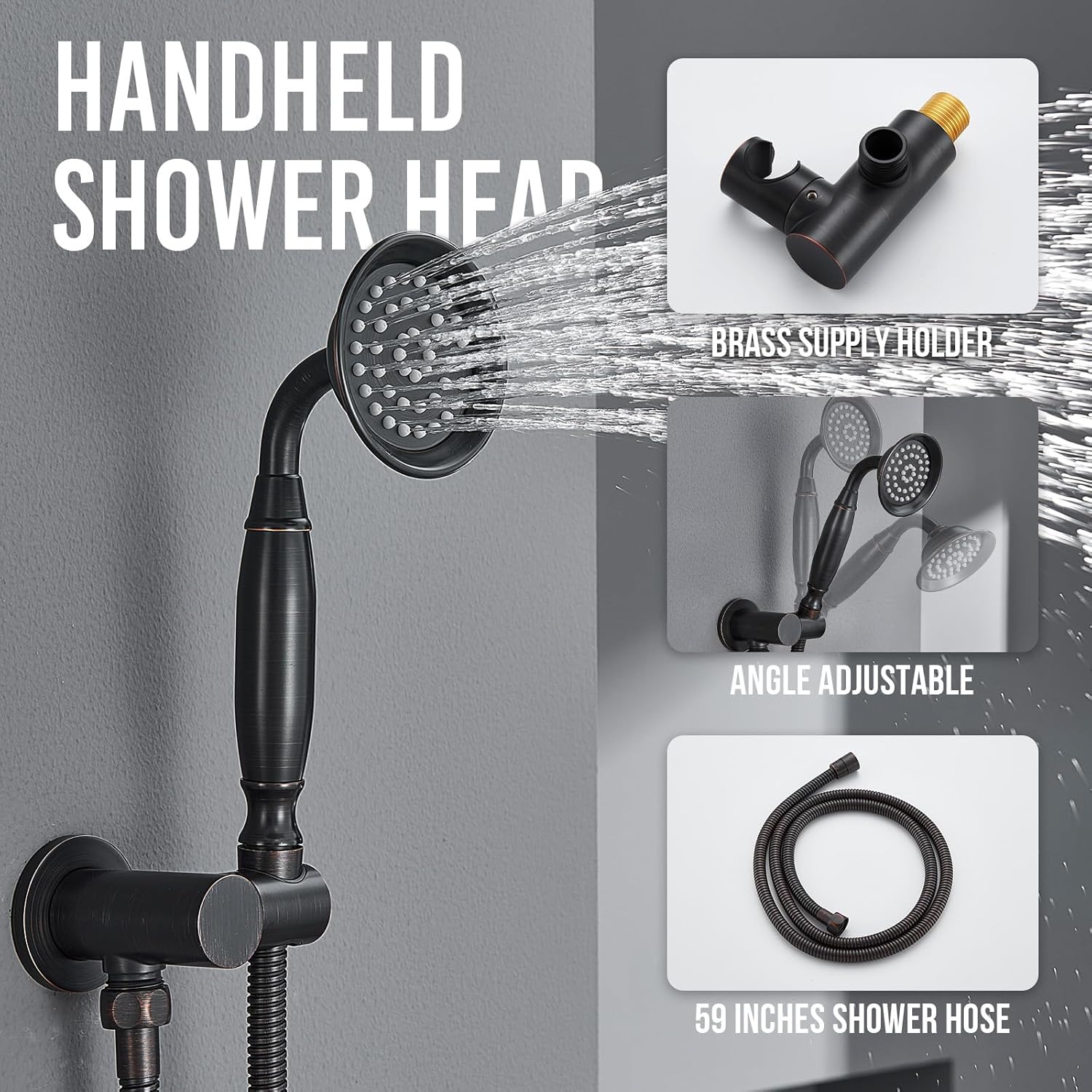

Image: Handheld shower head with 59-inch hose and brass supply holder.
Image: Body jets with easy-clean nozzles and 360-degree adjustable angle.
7. Pangropéa
Regular cleaning and maintenance will help preserve the finish and functionality of your shower system.
- Ngabersihkeun finish: Clean the oil rubbed bronze finish with a soft, damp lawon. Hindarkeun pembersih abrasive, bahan kimia kasar, atanapi bantalan scouring, sabab ieu tiasa ngaruksak finish.
- Nozzles beberesih: The rain shower head, handheld shower, and body jets feature silicone nozzles. To remove mineral buildup (limescale), gently rub the nozzles with your finger or a soft brush. This helps maintain consistent water flow.
- Cék périodik: Periodically check all connections for tightness and signs of leaks.
8. Cara ngungkulan
If you encounter issues with your shower system, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Aliran Cai Lemah | Clogged nozzles, partially closed shut-off valves, debris in lines. | Clean silicone nozzles. Ensure shut-off valves are fully open. Flush water lines if debris is suspected. |
| Cai Bocor | Loose connections, damaged O-rings/washers. | Tighten all connections. Inspect and replace any damaged O-rings or washers. Do not overtighten. |
| Suhu Cai teu konsisten | Pressure balance valve issue, hot/cold water supply imbalance. | Ensure hot and cold water supplies are balanced. If the problem persists, consult a plumber to inspect the pressure balance valve. |
| Fungsi Diverter Teu Ngaganti | Debris in diverter mechanism, worn diverter cartridge. | Flush the system. If the issue continues, the diverter cartridge may need inspection or replacement by a professional. |
If these solutions do not resolve the issue, please contact Dasan customer support.
9. Émbaran jaminan
The DASAN AT249W-ORB Wall Mount Shower System comes with the following warranty:
- Pamakéan padumukan: 10-Taun jaminan kawates
- Pamakéan komérsial: 5-Taun jaminan kawates
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use and service. For full warranty terms and conditions, please refer to the official Dasan websitus atanapi ngahubungan rojongan customer.
10. Rojongan
For further assistance, technical support, or to inquire about replacement parts, please visit the official Dasan store or contact their customer service department.
