ALLSTAND 63-inch Floating TV Stand with Doors Instruction Manual

Bubuka

This manual provides comprehensive instructions for the assembly, installation, operation, and maintenance of the ALLSTAND 63-inch Floating TV Stand with Doors, Model FAST0146ABRUSY. Designed for TVs up to 80 inches, this wall-mounted entertainment center offers two tiers of storage with barn-door style cabinets. Please read all instructions carefully before beginning assembly and installation.

Figure 1: The ALLSTAND 63-inch Floating TV Stand with Doors.

Émbaran Kasalametan

PERHATOSAN:

• Always ensure the product is securely mounted to a suitable wall structure (brick, wooden, or concrete wall). Avoid mounting on plasterboard walls without proper reinforcement.
• Ulah ngaleuwihan kapasitas beurat maksimum 110 lbs (50 kg) pikeun dudukan TV.
• Exercise caution during transportation and assembly. Inspect packaging for damage upon receipt. If damage is observed, refuse delivery or contact customer support immediately.
• Use appropriate tools and follow all assembly steps to prevent injury or damage to the product.
• Jauhkeun bagian leutik sareng bahan bungkusan tina murangkalih pikeun nyegah bahaya choking.

Figure 2: The TV stand is constructed from high-density wood panels and can support up to 110 lbs.

Daptar bagian

Before assembly, verify that all components listed below are present and undamaged. Refer to the included assembly diagram for visual identification.

• Panel luhur (1)
• Panel handap (1)
• Panel samping (2)
• Middle Divider Panels (2)
• Rak anu tiasa disaluyukeun (1)
• Barn-Door Style Cabinet Doors (2)
• Gagang Panto (2)
• Mounting Brackets (Metal)
• Wall Anchors (for various wall types)
• Sekrup (rupa-rupa ukuran)
• Obeng (1)
• Kunci Allen (1)

Angka 3: Ngabeledug view of the TV stand components, highlighting storage areas.

Setup sareng Majelis

Assembly typically takes approximately 30-60 minutes. Two individuals are recommended for the wall mounting process to ensure stability and safety.

Alat anu Dibutuhkeun (Kalebet):

• Obeng
• Allen rengkuh

Léngkah-léngkah Majelis:

1. Buka bungkus sareng Identipikasi Bagian: Carefully unpack all components and lay them out. Match each part to the provided parts list and assembly diagram.
2. Nyusun pigura utama: Connect the side panels and middle dividers to the bottom panel using the provided screws and metal joints. Ensure all connections are secure.
3. Install the Top Panel: Attach the top panel to the assembled frame. The top panel features pre-drilled holes for cable management.
4. Pasangkeun Panto Kabinet: Install the barn-door style cabinet doors. These doors feature magnetic closures for secure storage.
5. Pasang Rak Anu Bisa Diatur: Place the adjustable shelf in the central open compartment at your desired height.
6. Nyiapkeun pikeun Pasang Tembok:
   • Identify suitable wall type: This unit is designed for brick, wooden, or concrete walls. Do not mount directly onto plasterboard without additional structural support.
   • Determine mounting height: Consider the optimal viewing height for your TV.
   • Mark drilling points: Use the pre-installed metal mounting brackets on the back of the TV stand as a template to mark the drilling locations on your wall. Ensure marks are level.
7. Bor Liang sareng Sisipkeun Jangkar: Drill holes at the marked locations. Insert the appropriate wall anchors for your wall type.
8. Mount the TV Stand: With assistance, carefully lift the assembled TV stand and align the mounting brackets with the installed wall anchors. Secure the unit to the wall using the provided screws. Ensure the stand is level and firmly attached.

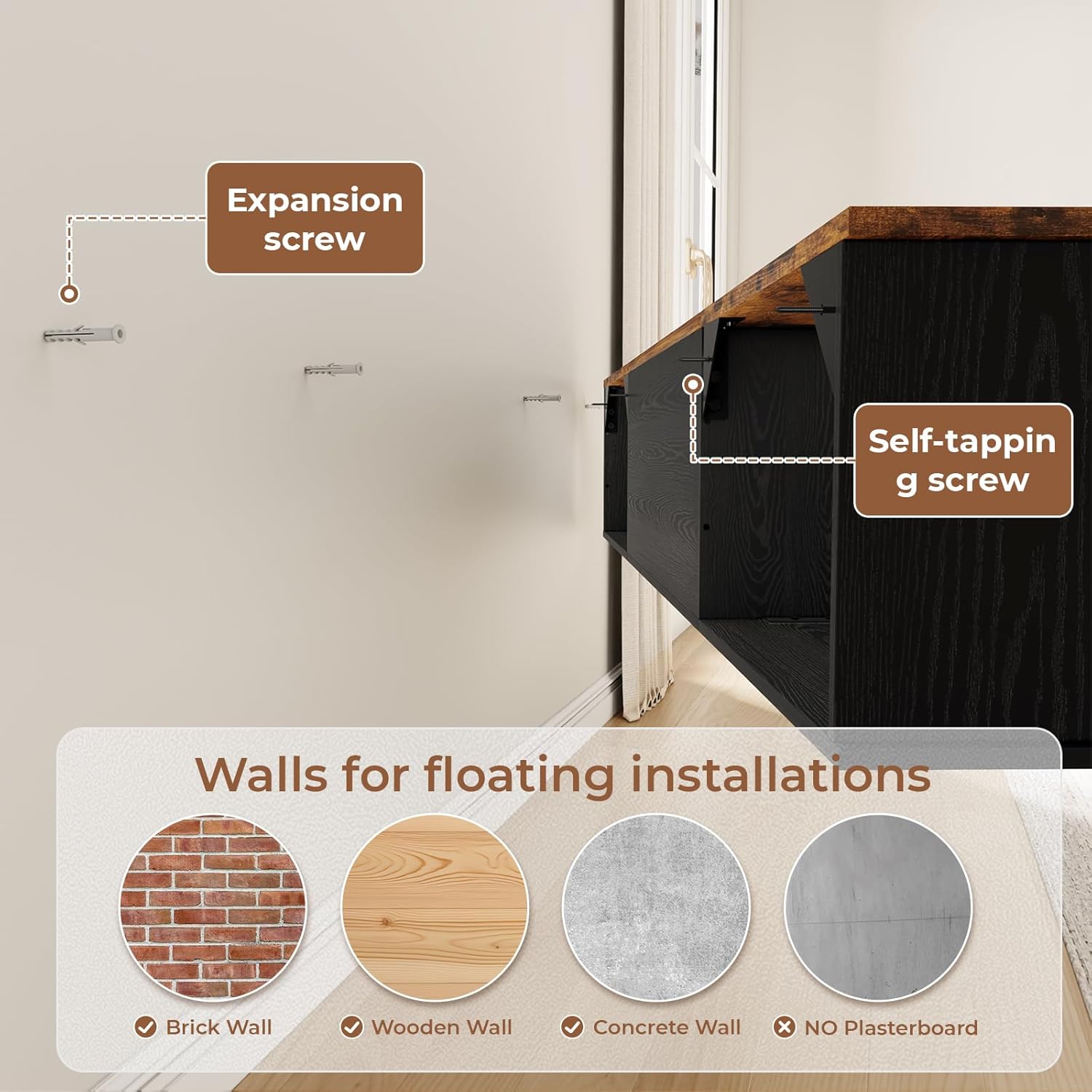

Figure 4: Wall compatibility for mounting. Ensure your wall type is suitable for secure installation.

Parentah Operasi

The ALLSTAND Floating TV Stand is designed for convenient storage and display of your entertainment devices.

• Buka Panyimpenan: The central open compartments are ideal for media players, gaming consoles, or decorative items.
• Panyimpenan disumputkeun: The two side cabinets with barn-door style doors provide hidden storage for items you wish to keep out of sight. The magnetic closures ensure doors remain shut.
• Manajemén Kabel: Utilize the pre-drilled holes on the top and shelves to route and organize cables, maintaining a tidy appearance.

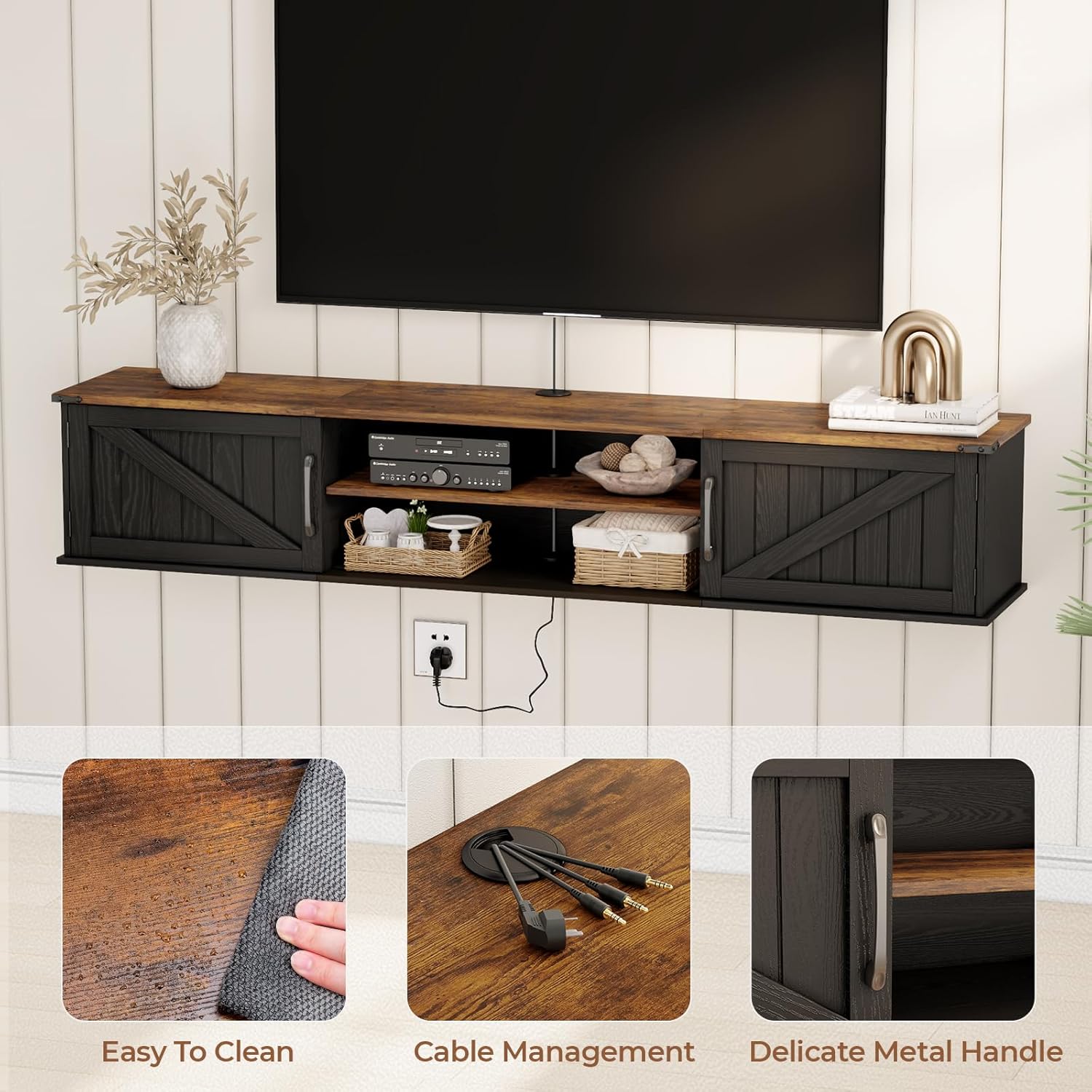

Figure 5: Detail of cable management features and magnetic door design.

Pangropéa

To maintain the appearance and longevity of your ALLSTAND Floating TV Stand, follow these simple care instructions:

• beberesih: Ngusap permukaan nganggo iklanamp lawon. Hindarkeun ngagunakeun bahan kimia anu kasar atanapi pembersih abrasive, anu tiasa ngarusak finish.
• Debu: Rutin lebu ku kaén anu lembut sareng garing.
• Pamariksaan: Periodically check all screws and mounting hardware to ensure they remain tight and secure. Tighten as necessary.

Pamérésan masalah

If you encounter any issues during or after installation, please refer to the following common solutions:

• Unit is not level: Re-check the wall markings and adjust the mounting points as needed. Ensure the wall anchors are properly installed and secure.
• Panto teu nutup kalawan bener: Verify that the magnetic closures are correctly aligned and that no obstructions are preventing the doors from fully closing.
• Wobbly or insecure: Ensure all screws are tightened, and the unit is firmly anchored to the wall studs or appropriate wall anchors. If using drywall anchors, consider upgrading to heavy-duty anchors if the provided ones feel insufficient for your specific wall condition.

For further assistance, please contact ALLSTAND customer support.

spésifikasi

Figure 6: Dimensions of the TV stand and supported TV sizes.

Ngarojong

For any questions, concerns, or assistance with your ALLSTAND Floating TV Stand, please contact our customer support team. We are committed to resolving any issues within 24 hours.

Note: This product does not include an explicit manufacturer's warranty beyond standard consumer rights. Third-party protection plans may be available for purchase separately.
