BNCF NewBook 11 2-in-1 Laptop User Manual

Bubuka

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your BNCF NewBook 11 2-in-1 Laptop. Please read this guide thoroughly to ensure optimal performance and longevity of your device.

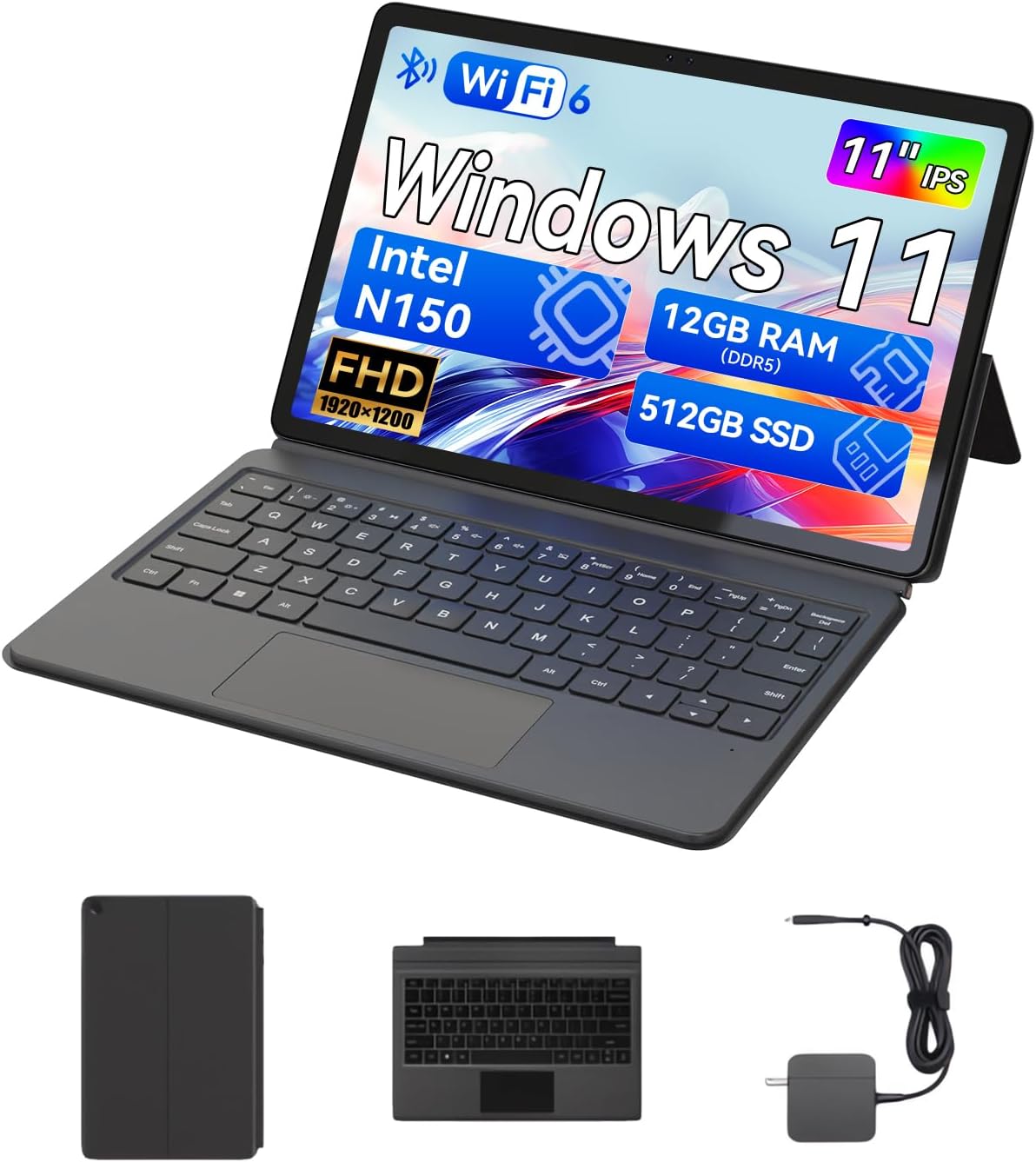

The BNCF NewBook 11 2-in-1 Laptop, shown here in its laptop configuration, featuring an 11-inch display, detachable keyboard, and kickstand.

1. Setup Guide

1.1 Unboxing sareng Inspeksi Awal

Upon receiving your BNCF NewBook 11, carefully unpack all components. Ensure the following items are present:

• BNCF NewBook 11 2-in-1 Laptop
• Kibor Magnét
• Kickstand
• Adaptor Daya (12V/3A)
• Manual pangguna (dokumén ieu)

Illustration of the items included in the BNCF NewBook 11 package, including the main unit, keyboard, kickstand, and power adapter.

1.2 Ngecas Alat

Before first use, fully charge your NewBook 11. Connect the provided power adapter to the Type-C charging port on the device and then to a power outlet. The charging indicator will illuminate.

1.3 Attaching the Keyboard and Kickstand

The magnetic keyboard and kickstand are designed for easy attachment and detachment:

1. kibor: Align the magnetic connector on the keyboard with the docking port at the bottom edge of the tablet. The magnets will secure it in place.
2. Kickstand: The kickstand attaches magnetically to the back of the tablet. Position it to achieve your desired viewing angle. Note that frequent adjustments may require re-aligning the kickstand.

The BNCF NewBook 11 demonstrating its three flexible modes: laptop, tablet, and stand, enabled by the magnetic keyboard and kickstand.

1.4 Initial Power-On and Windows 11 Setup

Press and hold the power button located on the side of the device until the screen illuminates. Follow the on-screen instructions to complete the Windows 11 initial setup, including language selection, network connection, and user account creation.

2. Parentah Operasi

2.1 2-in-1 Fungsionalitas

The BNCF NewBook 11 offers versatile usage modes:

• Modeu Laptop: With the keyboard and kickstand attached, use the device as a traditional laptop for productivity tasks.
• Modeu tablet: Detach the keyboard to use the device as a standalone tablet for touch-based interactions, browsing, or media consumption.
• Mode nangtung: Use the kickstand to prop up the tablet without the keyboard, ideal for watching videos or presentations.

2.2 Touchscreen and Display

The 11-inch FHD IPS In-Cell touchscreen (1920x1200 resolution) provides clear visuals and responsive touch input. Utilize multi-touch gestures for navigation within Windows 11.

The 11-inch FHD IPS In-Cell display of the NewBook 11, designed for clear and vibrant visuals.

2.3 Konéktipitas

The device features various ports and wireless options:

• Port USB-C (2): One for charging/data, one full-featured.
• USB 3.0 Port (1): Pikeun nyambungkeun périferal.
• Micro HDMI Port (1): For external display output (supports 1080P HD).
• 3.5mm Audio Jack (1): Pikeun headphone atanapi speaker éksternal.
• Wi-Fi 6: For high-speed wireless internet connectivity (2.4/5GHz).
• Bluetooth 5.0: Pikeun nyambungkeun asesoris nirkabel.

Diwincik view of the BNCF NewBook 11's ports and external features, highlighting its comprehensive connectivity options.

2.4 Kaméra

The device includes dual cameras: a 5MP front camera and an 8MP rear camera, suitable for video calls and basic photography.

3. Pangropéa sarta perawatan

3.1 beberesih

• layar: Anggo lawon anu lemes sareng henteu lint anu dirancang khusus pikeun éléktronika. Dampsaeutik ku cai atanapi pembersih layar upami diperyogikeun. Hindarkeun bahan kimia anu keras.
• awak: Wipe the metal chassis with a soft, dry cloth.

3.2 Perawatan Batré

Pikeun manjangkeun umur batre:

• Hindarkeun sering-sering ngeusi batre.
• Ulah ngalaan alat ka suhu ekstrim.
• Use only the provided BNCF power adapter for charging.

3.3 Sistim cooling

The NewBook 11 features an active cooling system with a PC-level fan and dual-copper heat pipe. Ensure the air vents are not obstructed to maintain optimal performance and prevent overheating.

An illustration of the internal active cooling system, showing the PC-level fan and copper heat pipe designed to maintain stable device temperature.

4. Cara ngungkulan

This section addresses common issues you might encounter with your BNCF NewBook 11.

4.1 Alat Teu Dihurungkeun

• Ensure the device is fully charged. Connect the power adapter and wait a few minutes before attempting to power on again.
• Pencét jeung tahan tombol daya pikeun 10-15 detik pikeun ngalakukeun reset teuas.

4.2 Hirup batré pondok

• Atur kacaangan layar ka setélan anu langkung handap.
• Tutup aplikasi latar tukang anu teu perlu.
• Ensure Wi-Fi and Bluetooth are turned off when not in use.
• Check for Windows updates, as power management improvements may be included.

4.3 Display Issues (e.g., Washed Out Colors)

• Check display settings in Windows 11 (Settings > System > Display) for color calibration options.
• Mastikeun supir grafik up to date.

4.4 Keyboard or Trackpad Not Responding

• Ensure the magnetic keyboard is securely attached to the tablet's docking port.
• Detach and reattach the keyboard.
• Balikan deui alat.
• If issues persist, contact BNCF support.

4.5 General Performance Slowdown

• Tutup aplikasi anu henteu dianggo sareng tab browser.
• Check for sufficient free storage space on the 512GB SSD.
• Jalankeun scan sistem pikeun malware.
• Ensure Windows 11 is updated to the latest version.

5. Spésifikasi

6. Garansi jeung Rojongan

BNCF is committed to providing high-quality products and customer satisfaction.

6.1 Émbaran jaminan

Your BNCF NewBook 11 comes with a jaminan hiji taun. This warranty covers manufacturing defects and ensures that your device meets BNCF's quality standards. For specific details regarding the RMA (Return Merchandise Authorization) policy, please refer to the official BNCF websitus atanapi ngahubungan rojongan customer.

6.2 Rojongan Téknis

BNCF offers rojongan teknis hirupna for its products. If you encounter any issues or have questions regarding your device, please contact BNCF customer service. You can expect a response within 24 hours.

BNCF provides a one-year warranty and dedicated support to ensure customer satisfaction.
