1. Parentah Kasalametan penting
Before operating the UREVO URTM030 Treadmill, please read all instructions carefully. Retain this manual for future reference.
- Salawasna nempatkeun treadmill dina datar, permukaan stabil.
- Pastikeun aya rohangan kosong anu cekap di sabudeureun treadmill (sahenteuna 2 méter di tukangeun sareng 0.6 méter di unggal sisi).
- Jauhkeun barudak sareng piaraan tina treadmill salami operasi.
- Anggo sapatu atletik anu pantes.
- Do not use the treadmill if you weigh more than 120 kilograms (265 lbs).
- Cabut treadmill tina stop kontak listrik nalika henteu dianggo atanapi sateuacan beberesih/pangropéa.
- Taroskeun ka dokter sateuacan ngamimitian program latihan naon waé.
2. Produk Langkungview
The UREVO URTM030 Treadmill is designed for home fitness, featuring a powerful motor, dual display, and a remote control for convenient operation. Its foldable design allows for easy storage.
Gambar 2.1: The UREVO URTM030 Treadmill highlighting its 2.5 horsepower motor, capable of providing speeds up to 12 KM/H.

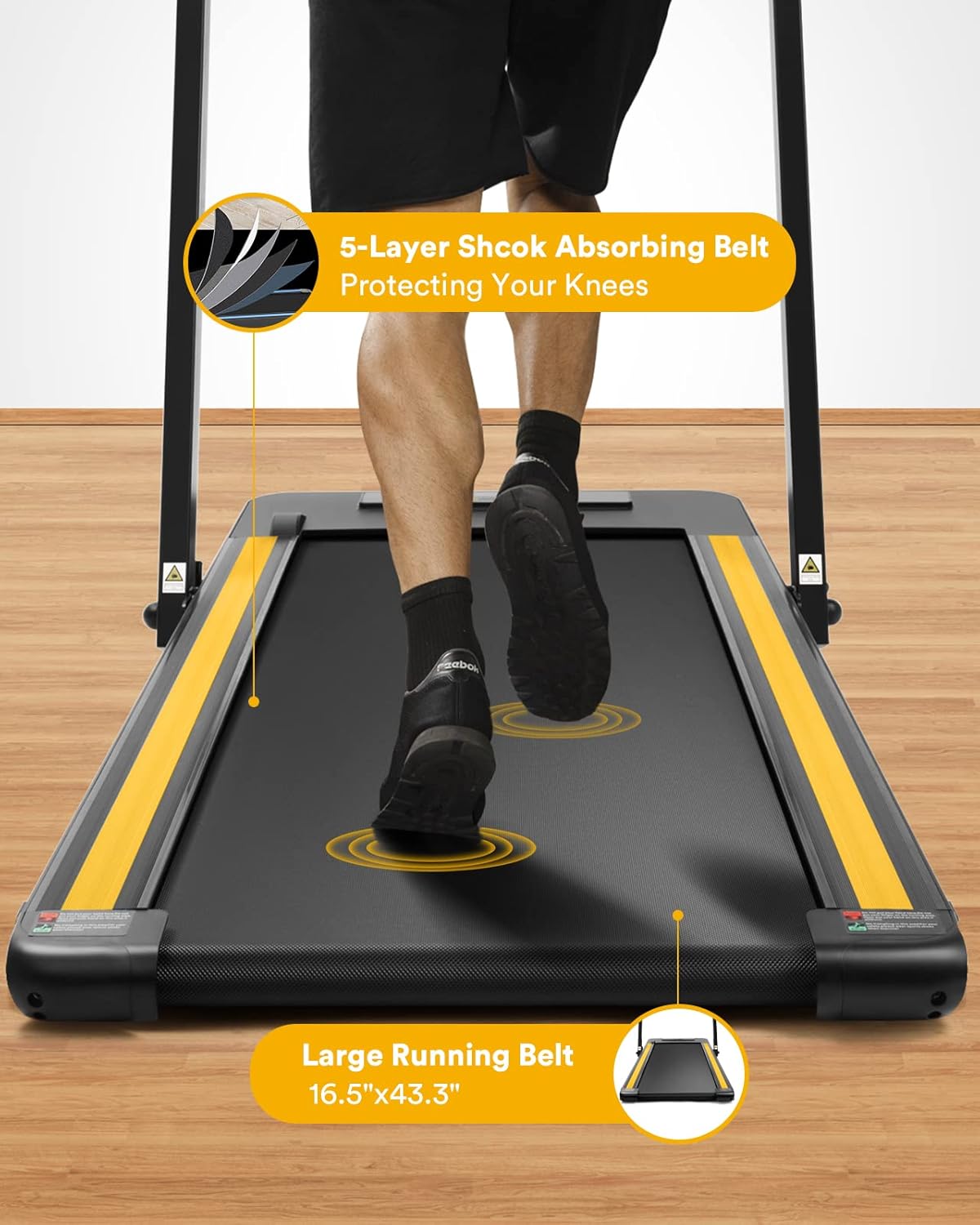

Gambar 2.2: A nutup-up view of the treadmill belt, emphasizing its five-layer shock absorption system designed to protect joints, along with the generous running belt dimensions (16.5"x43.3").
3. Setup jeung Majelis
3.1 Ngabongkar bungkusan
Carefully remove the treadmill from its packaging. Inspect all components for any damage. Ensure all parts listed in the 'What's in the Box' section are present.
3.2 Unfolding nu Treadmill
The URTM030 treadmill features a one-step folding mechanism for convenience.
- Teundeun treadmill dina datar, permukaan stabil.
- Locate the foot-operated knob near the base of the treadmill.
- Step on the knob to release the locking mechanism.
- Angkat rakitan stang lalaunan dugi ka konci dina posisi nangtung.
Gambar 3.1: A visual guide demonstrating the simple one-step folding mechanism of the treadmill, activated by a foot-operated knob.
3.3 Sambungan Daya
Connect the power cord to the treadmill's power inlet and then plug it into a grounded electrical outlet. Ensure the power switch is in the 'ON' position.
4. Parentah Operasi
4.1 Control Panel Leuwihview
The treadmill features a dual display and an intuitive control panel on the handlebar for easy access to functions.

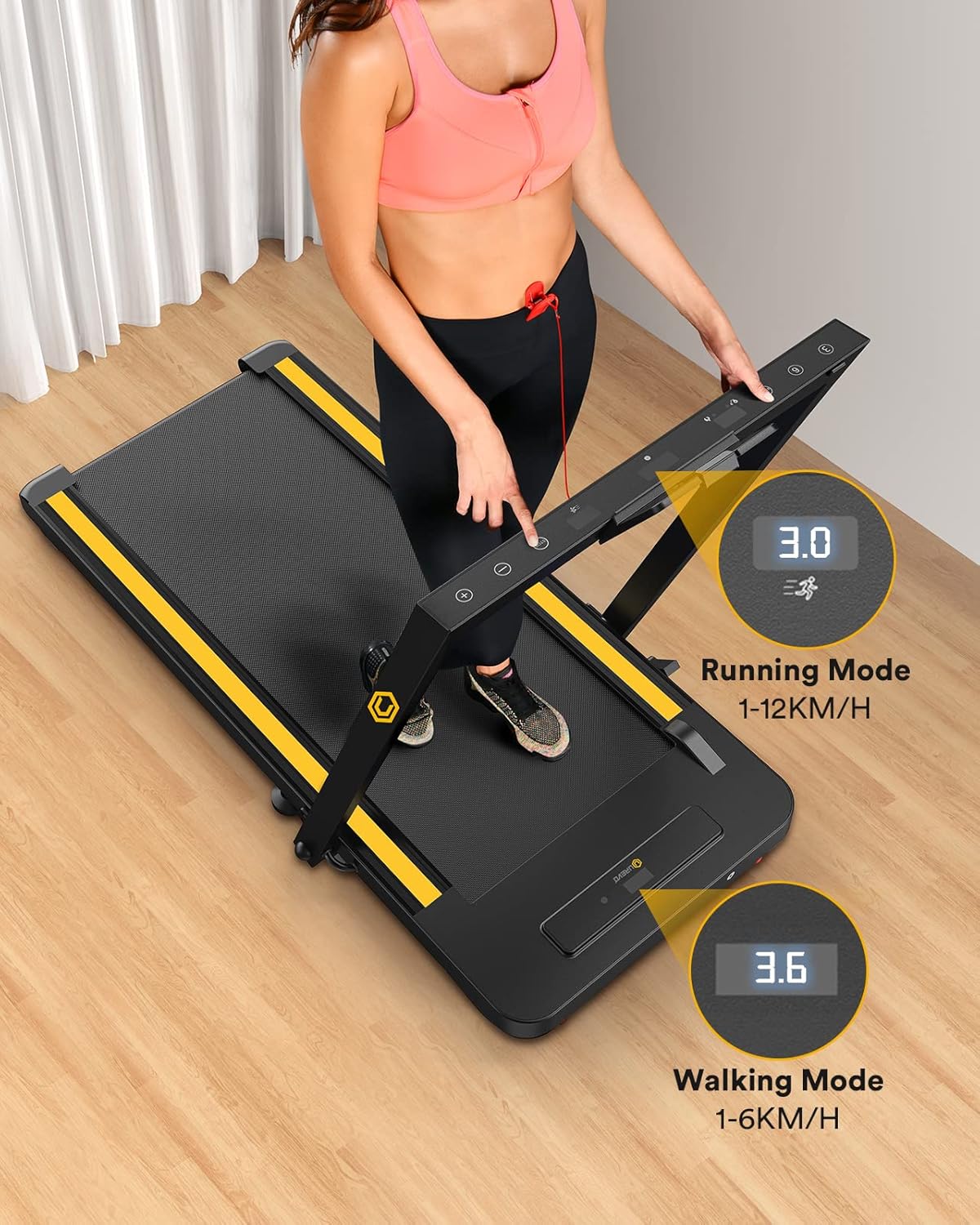

Gambar 4.1: The control panel on the handlebar, indicating the two operational modes: Walking Mode (1-6 KM/H) and Running Mode (1-12 KM/H).
4.2 Mimitian jeung Ngeureunkeun
- Press the START button on the control panel or remote control to begin. The treadmill will start at a low speed.
- Press the STOP button to gradually decrease speed and stop the treadmill.
4.3 Nyaluyukeun Speed
- Use the '+' and '-' buttons on the control panel or remote control to increase or decrease speed.
- The treadmill supports Walking Mode (1-6 KM/H) and Running Mode (1-12 KM/H).
Gambar 4.2: The user operating the treadmill in walking mode using the included remote control for convenient speed adjustments.
4.4 Using with a Standing Desk
The low-profile design of the URTM030 allows for use with a standing desk, promoting active work habits.
Gambar 4.3: Illustrates the treadmill's low-profile design, allowing it to be used comfortably with a standing desk for walking while working.
5. Pangropéa
5.1 beberesih
- Salawasna cabut kabel treadmill sateuacan diberesihan.
- Usap konsol sareng permukaan luar nganggo kaén anu lemes,amp lawon. Ngahindarkeun cleaners abrasive.
- Sedot debu di handapeun treadmill sacara berkala pikeun nyegah ngumpulna lebu.
5.2 Sabuk Lubrication
Regular lubrication of the running belt is crucial for optimal performance and longevity. Refer to the specific lubrication instructions provided with your treadmill's lubricant kit.
5.3 Sabuk adjustment
If the running belt becomes off-center or slips, it may require adjustment. Consult the detailed instructions in the full product manual or contact customer support for guidance.
6. Cara ngungkulan
This section addresses common issues you might encounter with your UREVO URTM030 Treadmill.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Treadmill teu daya on. | Power cord not connected; Power switch off; Circuit breaker tripped. | Pastikeun kabel listrik geus dipasang pageuh. Pariksa saklar daya. Setel ulang pemutus sirkuit upami diperyogikeun. |
| Sabuk lumpat leupas atawa ragu-ragu. | Sabukna kendor teuing; Pelumasanana kurang. | Atur tegangan sabuk (tingali manual lengkep). Lumasi sabuk nu keur ngajalankeun. |
| Noise mahiwal salila operasi. | Loose components; Foreign object; Motor issue. | Check for loose screws. Inspect for foreign objects. If noise persists, contact customer support. |
For issues not listed here, please contact UREVO customer support.
7. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | URTM030 |
| Daya Motor | 2.5 hp |
| Rentang Kagancangan (Modeu Leumpang) | 1 - 6 KM/H |
| Rentang Kagancangan (Modeu Lumpat) | 1 - 12 KM/H |
| Kamampuh beurat maksimum | 120 kg |
| Diménsi Sabuk Lumpat | 16.5" x 43.3" (approx. 42 cm x 110 cm) |
| Ukuran produk (L x W x H) | 158 cm x 58 cm x 13 cm (dilipat) |
| Item Beurat | 22.55 kg |
| Bahan | Alloy Steel |
| Tipe tampilan | LCD, 15.7 Inches |
| Fitur husus | Foldable, Remote Control |
8. Panyimpenan
The UREVO URTM030 Treadmill is designed for convenient, space-saving storage.
- Pastikeun treadmill dipareuman sareng dicabut.
- Fold the treadmill using the one-step folding mechanism as described in Section 3.2.
- Once folded, the compact design allows it to be stored under a sofa, bed, or in other tight spaces.

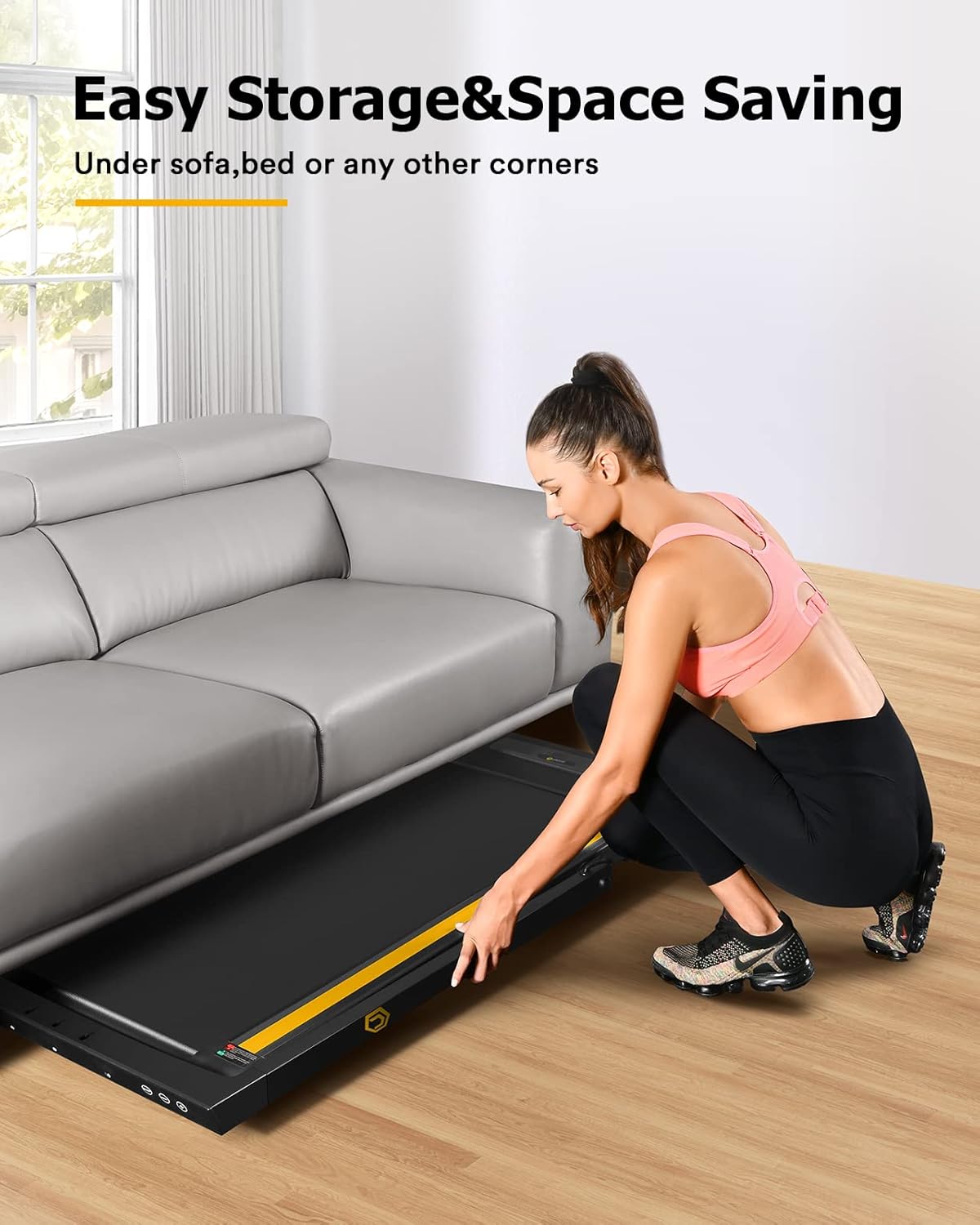

Gambar 8.1: Illustrates how the folded treadmill can be easily stored under furniture like a sofa or bed, highlighting its space-saving design.
9. Garansi jeung Rojongan
UREVO provides a 2-year availability for spare parts for the URTM030 Treadmill.
For technical assistance, warranty claims, or to order spare parts, please contact UREVO customer support through the retailer where the product was purchased or visit the official UREVO websitus pikeun inpo kontak.
Please have your model number (URTM030) and purchase date ready when contacting support.
