1. Bubuka
Thank you for choosing the luckystyle 100FT LED Outdoor String Lights. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new string lights. Designed for outdoor use, these lights feature shatterproof S11 LED bulbs, remote control dimming, and a waterproof construction, providing warm white 2700K illumination for various settings.
2. Émbaran Kasalametan
- Sumber Daya: Ensure the power adapter is connected to a compatible power outlet. This product is corded electric and not solar-powered.
- Low Voltage: The lights operate at a safe 24V low voltage. The adapter includes overload and short-circuit protection.
- Tahan cai: The lights are IP65 waterproof. Ensure all connections are secure to maintain water resistance.
- Penanganan Bohlam: While bulbs are shatterproof, avoid excessive force or intentional damage.
- Pamasangan: Install lights securely to prevent falling or swaying in wind. Do not hang on power lines.
- Rentang Suhu: Suitable for temperatures between 14°F and 113°F (-10°C to 45°C).
3. Eusi Paket
Pastikeun yén sadaya item aya dina pakét anjeun:
- 1 x 100FT LED Outdoor String Lights (with 35 S11 LED bulbs installed)
- 1 x Spare S11 LED Bulb
- 1 x Remote Control (merlukeun 2 batré AAA, kaasup)
- 1 x Adaptor Daya (24V)
4. Setup jeung Instalasi
- Ngabongkar komponén: Sacara saksama miceun sadaya barang tina bungkusan.
- Tata Letak: Determine the desired path for your string lights. Ensure the power adapter can reach a suitable outdoor power outlet. The string has a lead length of approximately 11 feet from the adapter to the first bulb.
- Pamasangan: Use appropriate hooks, zip ties, or guide wires (not included) to securely hang the string lights. Each bulb socket has a small loop for easy hanging. Ensure the lights are not under excessive tension.
- Bulb Installation (if necessary): The lights come with bulbs pre-installed. If a bulb needs replacement, gently screw in the S11 LED bulb into the E12 base until snug. Do not overtighten.
- Sambungkeun Kakuatan: Plug the power adapter into a grounded outdoor electrical outlet.
- Remote Pairing (First-time Use): For initial use, press and hold the remote's power button for 3-5 seconds within 30 seconds of connecting the power supply. This pairs the remote with the lights.
5. Parentah Operasi
The luckystyle string lights are controlled via the included remote. Ensure the remote has fresh AAA batteries installed.
Fungsi Remote Control:
- ON/OFF: Pencét tombol daya pikeun ngahurungkeun atawa mareuman lampu.
- Dimming:
- Tingkat prasetél: Select 25%, 50%, 75%, or 100% brightness.
- Dimming Stepless: Use the "+" and "-" buttons for fine-tuned brightness adjustment.
- Modeu cahaya:
- Pencahayaan: Standard constant illumination.
- Napas: Lampu laun-laun asup jeung kaluar.
- Flash: Lampu hurung sareng pareum.
- Fungsi Timer:
- 3H: Lights will stay on for 3 hours and then automatically turn off.
- 6H: Lights will stay on for 6 hours and then automatically turn off.
6. Pangropéa
- beberesih: Disconnect power before cleaning. Wipe bulbs and wires with a soft, damp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
- Ngagantian bohlam: If a bulb fails, replace it with an S11 LED bulb (E12 base). luckystyle offers a Lifetime Bulb Replacement Service. Contact customer support for assistance.
- Panyimpenan: If storing the lights for an extended period, clean them thoroughly, coil them neatly, and store in a cool, dry place away from direct sunlight.
- Pamariksaan: Periodically inspect the string for any damage to the wire, sockets, or bulbs. Discontinue use if damage is found and contact support.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampu teu hurung. |
|
|
| Lampu kedip-kedip atanapi pareum teu disangka-sangka. |
|
|
| Kadali jauh henteu ngaréspon. |
|
|

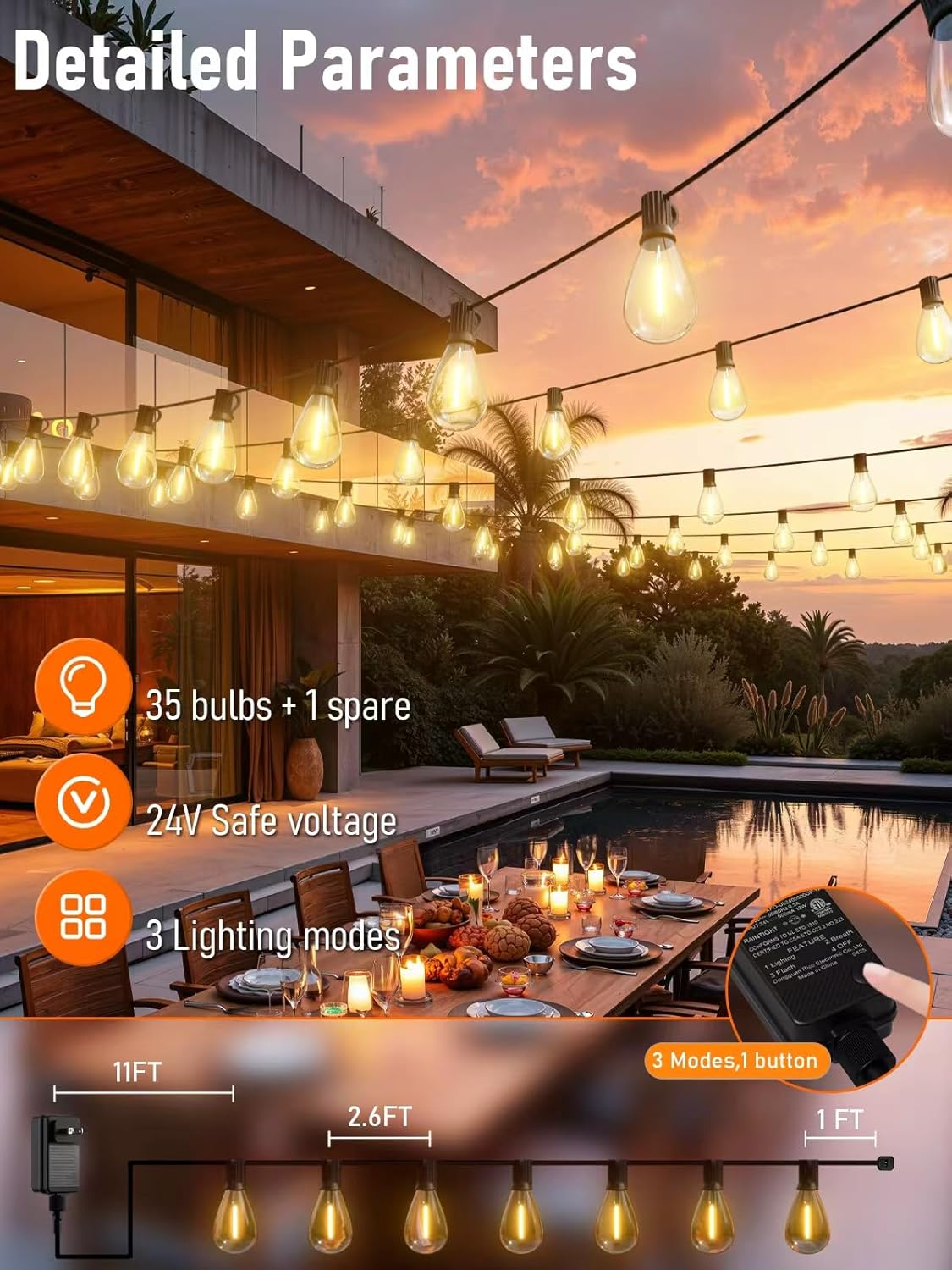

8. Spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | S11 |
| Panjangna | 100 FT |
| Jenis Bohlam | S11 LED (Shatterproof) |
| Jumlah Bulbs | 35 + 1 cadang |
| Dasar Bulb | E12 |
| Warna Cahaya | Bodas haneut (2700K) |
| Voltage | 24V Low Voltage |
| Sumber Daya | Kabel Listrik |
| Métode kontrol | Kadali jauh |
| Dimming Pilihan | 25%, 50%, 75%, 100% & Stepless |
| Modeu Lampu | Constant, Breath, Flash |
| Fungsi Timer | 3H, 6H |
| Tingkat Résistansi Cai | IP65 Waterproof |
| Suhu Operasi | 14°F - 113°F (-10°C - 45°C) |
| Batré Jauh | 2 AAA (kaasup) |
9. Garansi jeung Rojongan
luckystyle is committed to providing high-quality products and customer satisfaction. We offer:
- Rojongan Hirupna: For any questions or issues regarding your product.
- Lifetime Bulb Replacement Service: Contact our customer service team for replacement bulbs if needed.
For assistance, please contact luckystyle customer service through the platform where you purchased the product or visit the official luckystyle store online.
