1. Bubuka
Thank you for choosing the Dasan Thermostatic Dual Shower Head System. This system is designed to provide a luxurious and consistent showering experience with its advanced thermostatic control, dual shower heads, and integrated body jets. This manual provides essential information for the safe installation, proper operation, and effective maintenance of your new shower system. Please read all instructions carefully before installation and use.
Gambar 1.1: Leuwihview of the Dasan Thermostatic Dual Shower Head System components, including the 16-inch rainfall shower head, 6-inch wall-mounted shower head, thermostatic valve, 6 body jets, and handheld sprayer.
2. Émbaran Kasalametan
Mangga perhatoskeun tindakan pencegahan kaamanan ieu pikeun nyegah cilaka atanapi karusakan kana produk.
- Pamasangan profésional disarankeun: Due to the complexity of integrating multiple components and the thermostatic valve, professional plumbing installation is strongly recommended.
- Tekanan cai: Ensure your home's water pressure is within acceptable limits for optimal performance and to prevent damage. Consult a plumber if unsure.
- Kontrol Suhu: The thermostatic valve is factory-set to 38°C (100°F) for safety. Do not attempt to bypass this safety feature without understanding the risks of scalding.
- Pasokan Cai Panas: Ensure your hot water supply system can adequately support the flow rate of multiple shower functions operating simultaneously.
- Kasaluyuan bahan: Do not use harsh chemicals or abrasive cleaners on the brushed gold finish, as this may cause damage.
3. Eusi Paket
Pastikeun yén sadaya komponén aya sareng henteu ruksak sateuacan ngamimitian pamasangan.
- 16-inci Curah Hujan Kepala Pancuran
- 6-inch Wall-Mounted Shower Head
- Thermostatic Shower Valve & Trim Kit
- 6 Awak Jet
- Handheld Shower with 59-inch Stainless Steel Hose
- Pasang Hardware (screws, jangkar, jsb.)
- Instruksi Manual
4. Setup jeung Instalasi
Installation of this shower system requires careful planning and adherence to local plumbing codes. It is recommended for new construction or complete bathroom remodels.
4.1 Pertimbangan Pra-Pamasangan
- Wall Depth: Recommended in-wall depth for the valve is 3.5 inches (Min 3-3/8" - Max 3-3/4").
- Sambungan cai: Inlet connections are 3/4" NPT, and outlet connections are 1/2" NPT.
- Gunung siling: The 16-inch rainfall shower head is designed for ceiling mounting. Ensure adequate structural support.
- Tata perenah: Plan the placement of the 6-inch shower head, body jets, and handheld shower for optimal coverage and accessibility.
Gambar 4.1: Detailed dimensions and connection points for the thermostatic shower system, including the 16-inch shower head, 6-inch shower head, body jets, and handheld shower.
4.2 Thermostatic Valve Installation
The thermostatic valve is the core of the system, controlling water temperature and flow to all outlets.
- Pareuman sumber cai utama sateuacan ngamimitian padamelan pipa ledeng naon waé.
- Install the valve body securely within the wall, ensuring it is level and at the correct depth as indicated in the dimension diagram (Figure 4.1).
- Connect the hot and cold water supply lines to the designated inlets on the valve body (typically marked H for Hot and C for Cold).
- Connect the outlet lines from the valve to the respective shower components: 16-inch rainfall head, 6-inch wall-mounted head, 6 body jets, and handheld shower.
- Once all connections are made and tested for leaks, install the trim plate and control handles.
Gambar 4.2: Internal view of the Dasan thermostatic valve, showing water inlets, outlets, and the cartridge mechanism for temperature and flow control.
4.3 Pamasangan Jet Kepala sareng Awak Pancuran
- Kepala Pancuran Hujan: Securely mount the 16-inch rainfall shower head to the ceiling connection point. Ensure the connection is watertight. This head features 360° rotation for angle adjustment.
- Wall-Mounted Shower Head: Attach the 6-inch shower head to its wall-mounted arm. This head also offers 360° rotation.
- Jet Awak: Install the 6 body jets at desired heights and positions on the wall, connecting them to their dedicated water lines from the valve.
- Pancuran genggam: Mount the handheld shower holder at a convenient height and connect the 59-inch stainless steel hose to the handheld unit and the wall outlet.

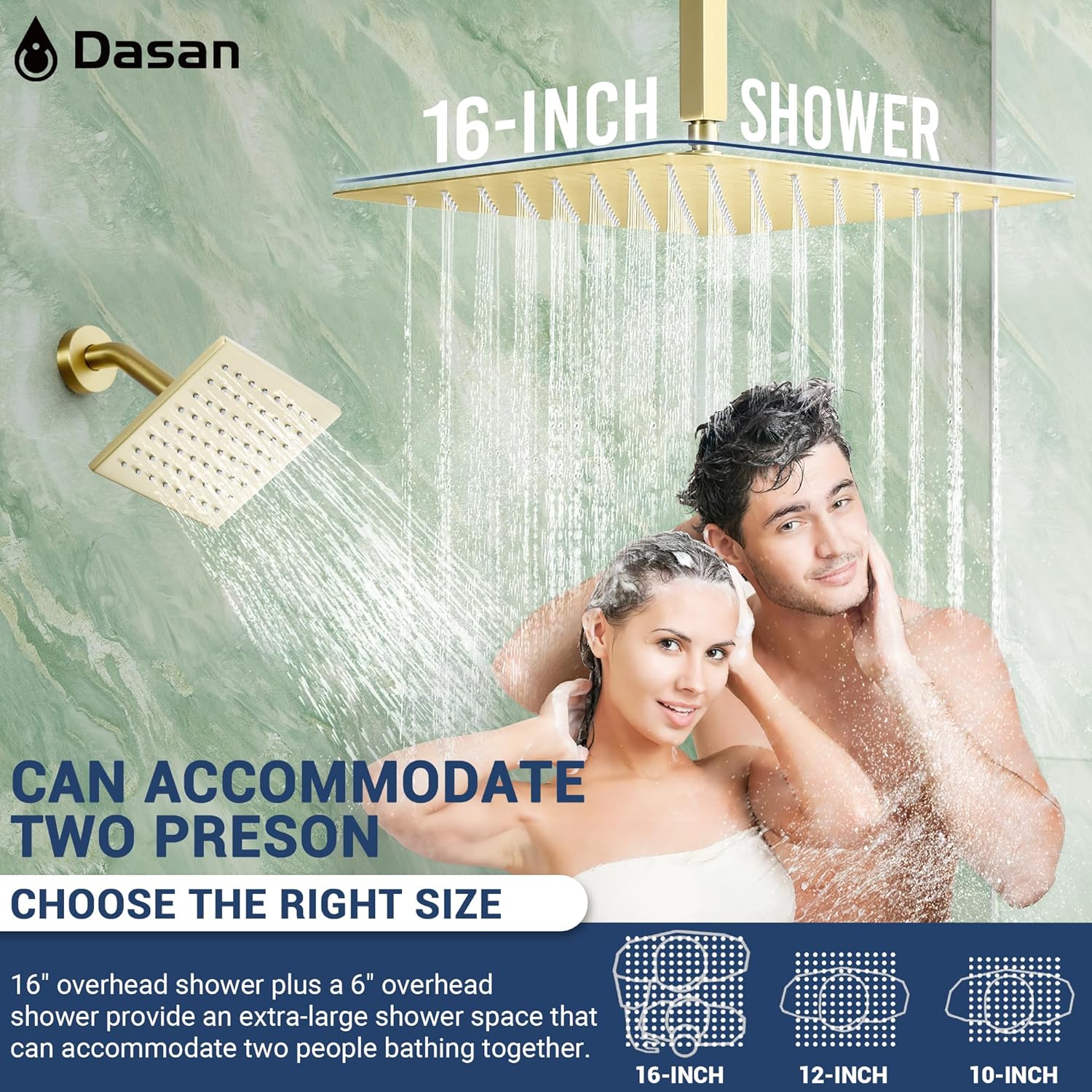

Gambar 4.3: The 16-inch rainfall shower head and 6-inch wall-mounted shower head operating simultaneously, demonstrating their coverage.
5. Parentah Operasi
Your Dasan shower system offers precise control over water temperature and multiple spray functions.
5.1 Thermostatic Temperature Control
- The bottom knob on the valve controls the water temperature. It is factory-set to a safe 38°C (100°F).
- To adjust the temperature, press the safety button on the knob and rotate it to your desired setting. Rotate clockwise for cooler water and counter-clockwise for warmer water.
- The thermostatic valve maintains a consistent water temperature, preventing sudden changes and ensuring comfort and safety.

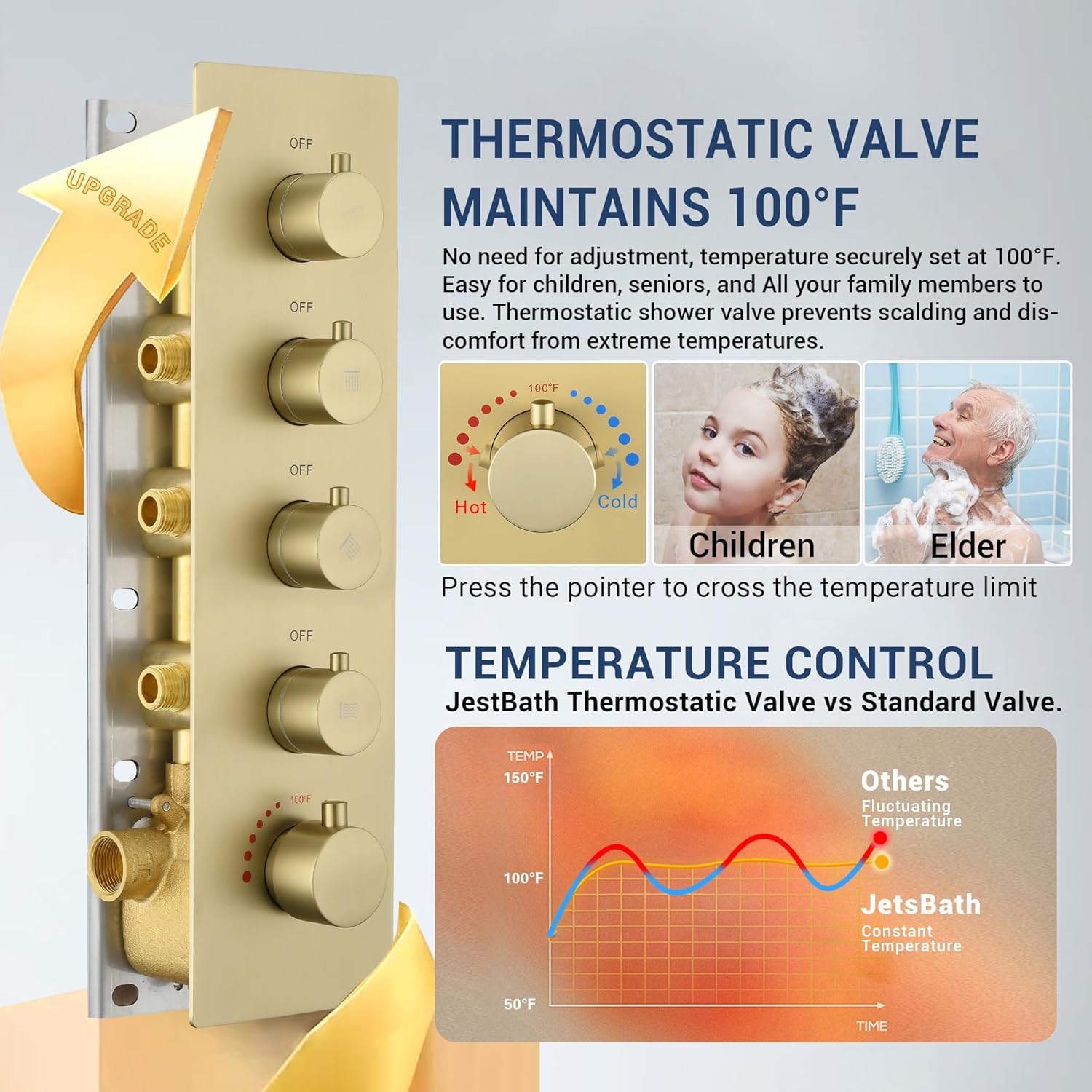

Gambar 5.1: Diagram illustrating the thermostatic valve's temperature control, showing the 100°F safety setting and how to adjust for hotter or colder water.
5.2 4-Function Diverter Control
The four upper knobs on the valve control the individual shower functions. Each knob can be turned ON or OFF independently.
- Knob 1 (Top): Controls the 16-inch Rainfall Shower Head.
- Tombol 2: Controls the 6-inch Wall-Mounted Shower Head.
- Tombol 3: Controls the 6 Body Jets.
- Knob 4 (Bottom): Controls the Handheld Shower.
You can use any single function, or activate multiple functions simultaneously for a customized showering experience.
Gambar 5.2: Visual representation of the four shower functions (16-inch shower head, 6-inch shower head, 6 body jets, handheld) and their ability to be used individually or simultaneously.
5.3 Air Injection Technology
The rainfall shower head incorporates air injection technology, which mixes air with water to create a softer, more voluminous spray. This enhances the showering experience by providing a gentle yet thorough rinse without the stinging sensation of straight water jets.
Gambar 5.3: Illustration of the air injection technology in the 16-inch rainfall shower head, showing how air is mixed with water for a softer spray.
6. Pangropéa
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Dasan shower system.
- Ngabersihkeun finish: The electroplated surface and glazed finish are designed to resist fingerprints and water stains. Clean regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Nozzles beberesih: The silicone nozzles on the shower heads and body jets are designed for easy cleaning. If mineral deposits accumulate, gently rub the nozzles with your finger or a soft brush to dislodge them.
- Kartrid Termostatik: In areas with hard water, the thermostatic cartridge may require periodic cleaning or replacement. Consult a qualified plumber for this service.
7. Cara ngungkulan
If you encounter issues with your shower system, refer to the following common problems and solutions.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Suhu Cai teu konsisten | Fluctuating hot/cold water supply pressure; thermostatic cartridge issue. | Check home water pressure. If problem persists, consult a plumber to inspect or replace the thermostatic cartridge. |
| Low Water Flow from Shower Heads/Jets | Mineral buildup in nozzles; clogged filter screens; low home water pressure. | Clean silicone nozzles. Check and clean filter screens at inlets. Verify adequate home water pressure. |
| Bocor tina Sambungan | Improperly tightened connections; damaged seals/O-rings. | Turn off water supply. Carefully tighten connections. Inspect and replace any damaged seals or O-rings. Professional assistance recommended. |
| Water Not Getting Hot Enough | Thermostatic valve safety limit engaged; insufficient hot water supply. | Ensure the temperature knob is rotated past the safety stop (press button). Check your hot water heater settings and capacity. |
If these solutions do not resolve the issue, please contact Dasan customer support or a qualified plumbing professional.
8. Spésifikasi
| merek | Dasan |
| Nomer modél | DS-SS4616C6-BG |
| Warna | Disikat Emas |
| Bahan | Kuningan, Baja stainless |
| Tipe rengse | Disikat |
| Jumlah gagang | 1 (for temperature control) + 4 (for functions) |
| Tipe Pamasangan | Ceiling Mount (Rainfall Head), Wall Mount (6-inch Head, Body Jets, Handheld) |
| Laju Ngalir | 1.8 GPM (Galon Per Menit) |
| Head Sizes | 16 Inch (Rainfall), 6 Inch (Wall-Mounted) |
| Dimensi produk | 27.55 x 24.8 x 7.67 inci (sadayana pakét) |
| Item Beurat | 29.9 pon (13.59 Kilogram) |
| UPC | 762316972890 |
9. Garansi jeung Rojongan
The Dasan Thermostatic Dual Shower Head System comes with a comprehensive warranty to ensure your peace of mind.
- Garanti Padumukan: 10-Taun jaminan kawates
- Jaminan Komérsial: 5-Taun jaminan kawates
For warranty claims, technical support, or any questions regarding your product, please contact Dasan customer service. Refer to your purchase documentation for specific contact details.
