1. Bubuka
This manual provides essential information for the safe and efficient use of your INDESIT BTW7251CFR top-load washing machine. Please read these instructions carefully before installation, operation, and maintenance. Keep this manual for future reference.
2. Parentah Kasalametan
Salawasna turutan tindakan pencegahan kaamanan dasar nalika nganggo alat listrik pikeun ngirangan résiko kahuruan, sengatan listrik, sareng cilaka ka jalma. Alat ieu dimaksudkeun kanggo panggunaan di bumi waé.
- Pastikeun alatna dibumikeun leres.
- Ulah ngantepkeun barudak maén atawa ngoperasikeun alat.
- Cabut colokan alat sateuacan beberesih atanapi ngalakukeun perawatan naon waé.
- Ulah dipasang atanapi disimpen alat ieu di tempat anu bakal kakeunaan cuaca atanapi suhu anu beku.
- Ulah ngajalankeun alat lamun éta ruksak atawa malfunctioning.
3. Setup jeung Instalasi
3.1 Ngabongkar bungkusan
Carefully remove all packaging materials. Ensure no parts are missing or damaged. Keep packaging out of reach of children.
3.2 Positioning jeung Leveling
Place the washing machine on a flat, stable floor. Adjust the feet to ensure the appliance is perfectly level. This prevents excessive vibration and noise during operation.
Gambar 1: Angled view of the Indesit BTW7251CFR top-load washing machine, illustrating its compact design suitable for various placements. The machine is white with a control panel on top.
3.3 Sambungan cai
Connect the water inlet hose to a cold water tap. Ensure connections are tight to prevent leaks. The appliance requires a water pressure between 0.1 MPa and 1 MPa.
3.4 Selang solokan
Position the drain hose correctly, ensuring it is not kinked or obstructed. The hose should be securely hooked into a drain pipe or sink, at a height between 60 cm and 100 cm from the floor.
3.5 Sambungan Listrik
Plug the appliance into a properly grounded electrical outlet. Do not use extension cords or adapters. Ensure the voltage jeung frékuénsi cocog spésifikasi dina plat rating.
4. Parentah Operasi
4.1 Control Panel Leuwihview

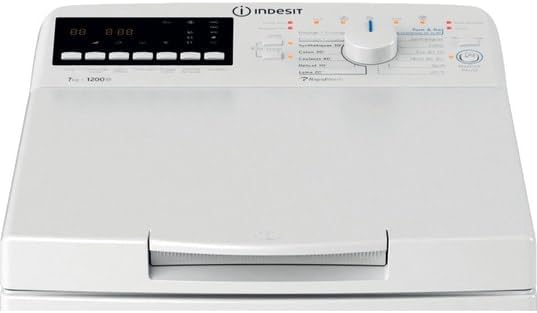

Gambar 2: Puncak view of the Indesit BTW7251CFR washing machine control panel, showing the digital display, program selector knob, and various option buttons.
The control panel features a digital display, a program selector knob, and buttons for various functions and options. Familiarize yourself with these controls before operating the machine.
4.2 Ngamuat laundry
Open the top lid and the drum flaps. Load laundry into the drum, ensuring not to overload the machine. The maximum capacity is 7 kg. Close the drum flaps and the top lid securely.
4.3 Nambahkeun Detergent
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and any fabric softener to the designated compartments. Refer to detergent packaging for dosage recommendations.
4.4 Pamilihan Program
Turn the program selector knob to choose the desired wash cycle. The machine offers 14 programs, including:
- Turn&Go: For mixed loads at 30°C in 45 minutes.
- Rapid Wash: For daily textiles requiring quick cleaning.
- Specific programs for wool, colors, and sportswear.
4.5 Selecting Options
Press the option buttons to activate additional functions such as:
- Mimitian ditunda: Postpone the start of the cycle by up to 24 hours.
- Pra-nyeuseuh: Pikeun item beurat soiled.
- Bilas tambahan: For sensitive skin or to ensure thorough detergent removal.
- Gampang Ironing: Ngurangan kreasing to simplify ironing.
4.6 Ngamimitian Siklus
Once the program and options are selected, press the Start/Pause button to begin the wash cycle. The display will show the remaining time.
5. Pangropéa sarta perawatan
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal mesin cuci anjeun.
5.1 Ngabersihan Dispenser Deterjen
Remove the detergent dispenser drawer and rinse it under running water to remove any residue. Clean the housing of the dispenser with a brush if necessary.
5.2 Ngabersihan Filter
The machine features an accessible drain pump, making filter cleaning straightforward. Regularly clean the filter to prevent blockages and ensure efficient drainage. Refer to the diagram below for location.

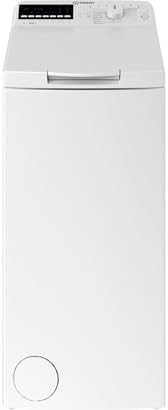

Gambar 3: Hareupeun view of the Indesit BTW7251CFR washing machine. The circular panel at the bottom right provides direct access to the drain pump filter for easy maintenance.
5.3 Drum beberesih
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically to clean the drum and prevent odors.
5.4 beberesih exterior
Ngusap permukaan luar kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
6. Cara ngungkulan
If you encounter issues with your washing machine, consult the following table before contacting technical support.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin teu ngamimitian | Power cord unplugged; door not closed; program not selected; fuse blown. | Check power connection; ensure lid is closed; select a program; check household fuse. |
| Cai teu ngeusian | Keran cai ditutup; selang inlet kinked; suplai cai dipotong. | Open water tap; straighten hose; check water supply. |
| Cai teu draining | Selang solokan bengkok atanapi tersumbat; saringan tersumbat. | Straighten or clear drain hose; clean the drain pump filter. |
| Geter / noise anu kaleuleuwihi | Machine not level; transport bolts not removed; unbalanced load. | Adjust leveling feet; remove transport bolts (if applicable); redistribute laundry. |
The appliance includes an anti-balourd system to manage unbalanced loads and a detector anti-mousse to prevent excessive foam.
7. Spésifikasi
Key technical details for the INDESIT BTW7251CFR washing machine:
- merek: Indesit
- model: BTW7251CFR
- Tipe: Top-Load Washing Machine
- Kapasitas: 7 kg
- Kacepetan Spin: 1200 rpm
- Ukuran (L x W x H): 68 x 44 x 94 cm
- beurat: 56 kg
- Tipe Motor: Inverter (ensures silent and reliable operation)
- Volume kendang: 42 liters, Stainless Steel
- Bahan bak: Polipropilén
- Jumlah Program: 14
- Tingkat Noise (Spin): 78 dB
Gambar 4: Energy label for the Indesit BTW7251CFR washing machine, indicating an energy efficiency class B, 52 kWh per 100 cycles, 7.0 kg capacity, 3:25 cycle duration, 45 L water consumption, and 78 dB noise level.
8. Garansi jeung Rojongan
For warranty information, please refer to the warranty card provided with your appliance or contact your retailer. Keep your proof of purchase for any warranty claims.
Regarding spare parts availability, information is currently unavailable. For technical assistance or service, please contact the authorized Indesit service center in your region.
