Bubuka
This manual provides detailed instructions for the assembly, operation, and maintenance of your SANSI 100W Full Spectrum Tall Standing Grow Light. Designed to mimic natural sunlight, this grow light supports all stages of plant growth, ensuring your indoor plants thrive. Please read this manual thoroughly before use to ensure proper function and safety.
Naon dina Box
- Floor Grow Light (includes Base Plate, Light Source, Lamp Rods, Telescopic Rod, Power Adapter)
- Kadali jauh
- Instruksi Manual
Parentah Majelis
Follow these steps to assemble your SANSI Grow Light:
- Amankeun Pelat Dasar: Ensure the screw on the base plate is securely tightened.
- Pasang Lamp Rod 1: Take out the first lamp rod and align its internal thread with the screw of the base plate. Tighten it securely.
- Pasang Lamp Rod 2: Sambungkeun kadua lamp rod to the first, aligning the threads and tightening.
- Insert Telescopic Rod: Take out the telescopic rod. Loosen its adjusting nut and pull out the inner tube. Do not tighten the adjusting nut at this stage; allow the inner tube to extend and retract freely.
- Attach Light Source: Align the telescopic rod with the light source and tighten it. Hold the light source firmly and tighten the inner tube of the telescopic rod until it is secure. Then, tighten the adjusting nut to prevent the light source from falling.
- Manajemén Kabel: Route the power cable neatly along the pole.
Video 1: Detailed installation guide for the SANSI 100W Floor Grow Light. This video demonstrates each step of the assembly process, from unboxing to final setup.
Parentah Operasi
Jangkungna adjustable
The SANSI grow light features a three-section detachable metal structure with an adjustable height ranging from 47 inches to 70.86 inches when fully extended. You can easily modify the height by sliding the telescoping pole or removing a section for a shorter lamp. This allows for effortless adjustments as your plants grow.
Fungsi Remote Control
Use the included remote control to manage the grow light's settings:
- Daya ON/OFF: Hurungkeun atawa mareuman lampu.
- Timer otomatis: Set the light to operate for 8, 12, or 14 hours daily. The timer function will be disabled if there is a power outage or the unit is unplugged, requiring a reset.
- Tingkat Caang: Adjust brightness to 5 levels (20%, 40%, 60%, 80%, 100%) to meet your plants' specific needs.
Video 2: Showcase of the SANSI 100W 1.8m Tall Grow Light, demonstrating its features and benefits for plant growth.
Fitur konci
Lampu Spéktrum Pinuh
The SANSI Grow Light provides full-spectrum supplementary light across the entire visible range of 400nm to 780nm, closely mimicking the solar spectrum with 4000K daylight. This ensures optimal light for every stage of plant growth, promoting vitality and enhancing yield.
High PPFD & Energy Saving
With an impressive 10,200 lumens and high Photosynthetic Photon Flux Density (PPFD), this 100W grow light effectively accelerates plant growth while consuming significantly less energy than traditional bulbs. It helps your greenery thrive faster and stronger.

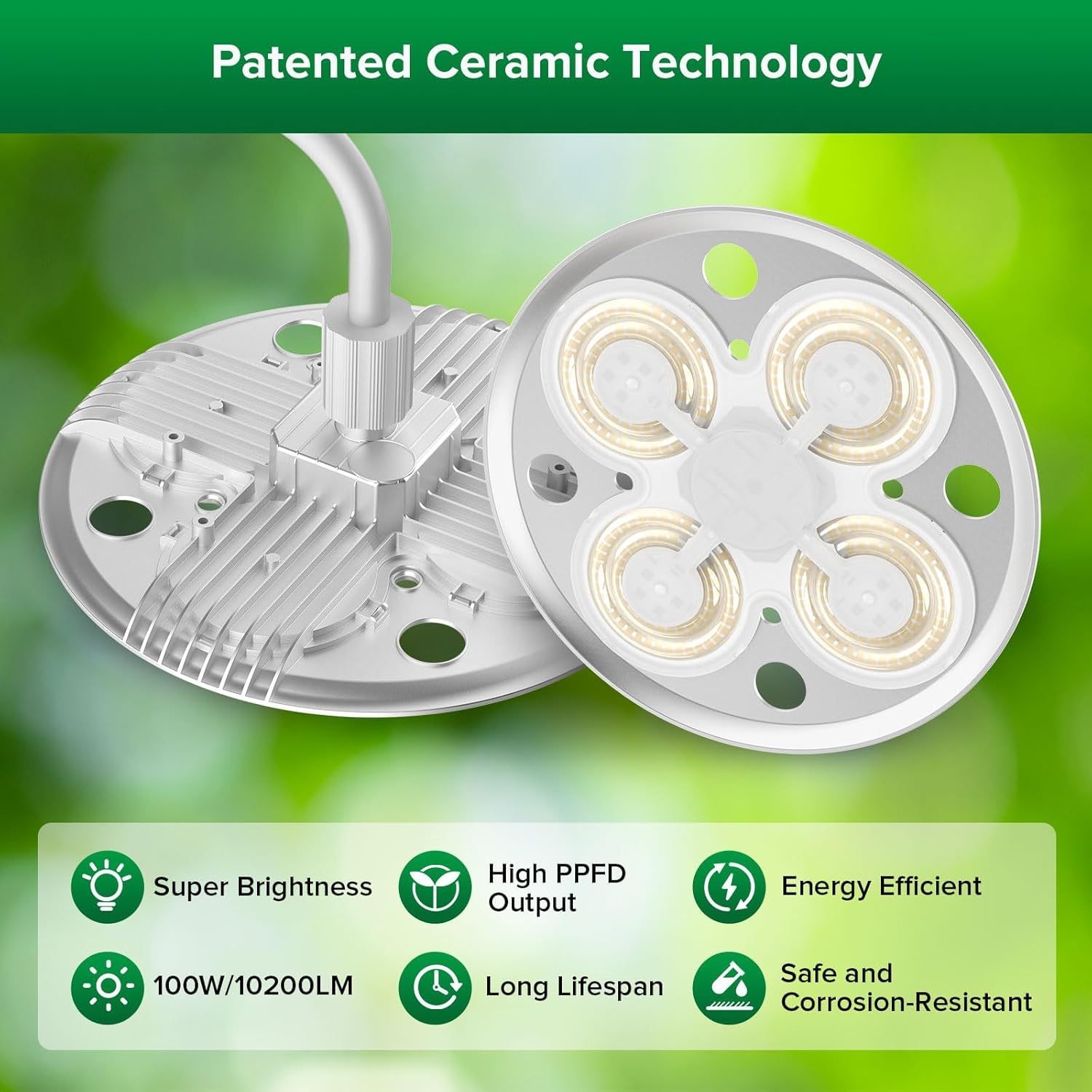

Patented Ceramic Technology
SANSI's patented ceramic technology features a non-conductive ceramic heat sink that directly solders the LED chip. This design ensures superior heat dissipation, boosting light efficiency and extending the lifespan of your grow light compared to traditional aluminum-based LED lights.
Advanced Optical Design
The innovative Secondary Optical Design optimizes light distribution, providing even illumination and enhancing light utilization. This promotes uniform and robust growth for your plants.
Émbaran Kasalametan
To ensure safe operation and optimal plant health, observe the following:
- Maintain a distance of at least 1 foot (30 cm) between the light source and your plants to prevent heat stress.
- Avoid touching the bulb while it is in operation, as it can be hot and cause burns.
- Keep power sources and cables away from water and plants during watering to prevent electrical hazards.
- The light source can be adjusted to a range of 15° to the left and right. Do not exceed this range to prevent damage.
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | SANSI |
| Nomer modél | C23ZW026-V0100A27 |
| Sumber Daya | Kabel Listrik |
| Wattage | 100 Watt |
| Caang | 10200 Lumén |
| Suhu Warna | 4000 Kelvin |
| Indéks Rendering Warna (CRI) | 95 |
| Jumlah Sumber Cahaya | 240 LEDs |
| Jangkungna adjustable | 47" - 70.86" |
| Dimensi produk | 18.2 "L x 18.2" W x 70" H |
| Item Beurat | 12.14 pon |
| Bahan | Aluminum, Polycarbonate (PC), Ceramic |
| Fitur bohlam | Dimmable |
Garansi sareng Rojongan
Your SANSI Grow Light comes with a 2-Year Support Service, ensuring long-lasting illumination for your indoor garden. For any inquiries or assistance, please contact SANSI customer support.
Salian ti éta, rencana panyalindungan sayogi kanggo dipésér:
- Plan Protection 3 Taun
- Plan Protection 4 Taun
- Ngajagi Lengkep (rencana bulanan anu nutupan pameseran anu layak)
