NICRON D10 EDC Flashlight Instruction Manual

1. Bubuka

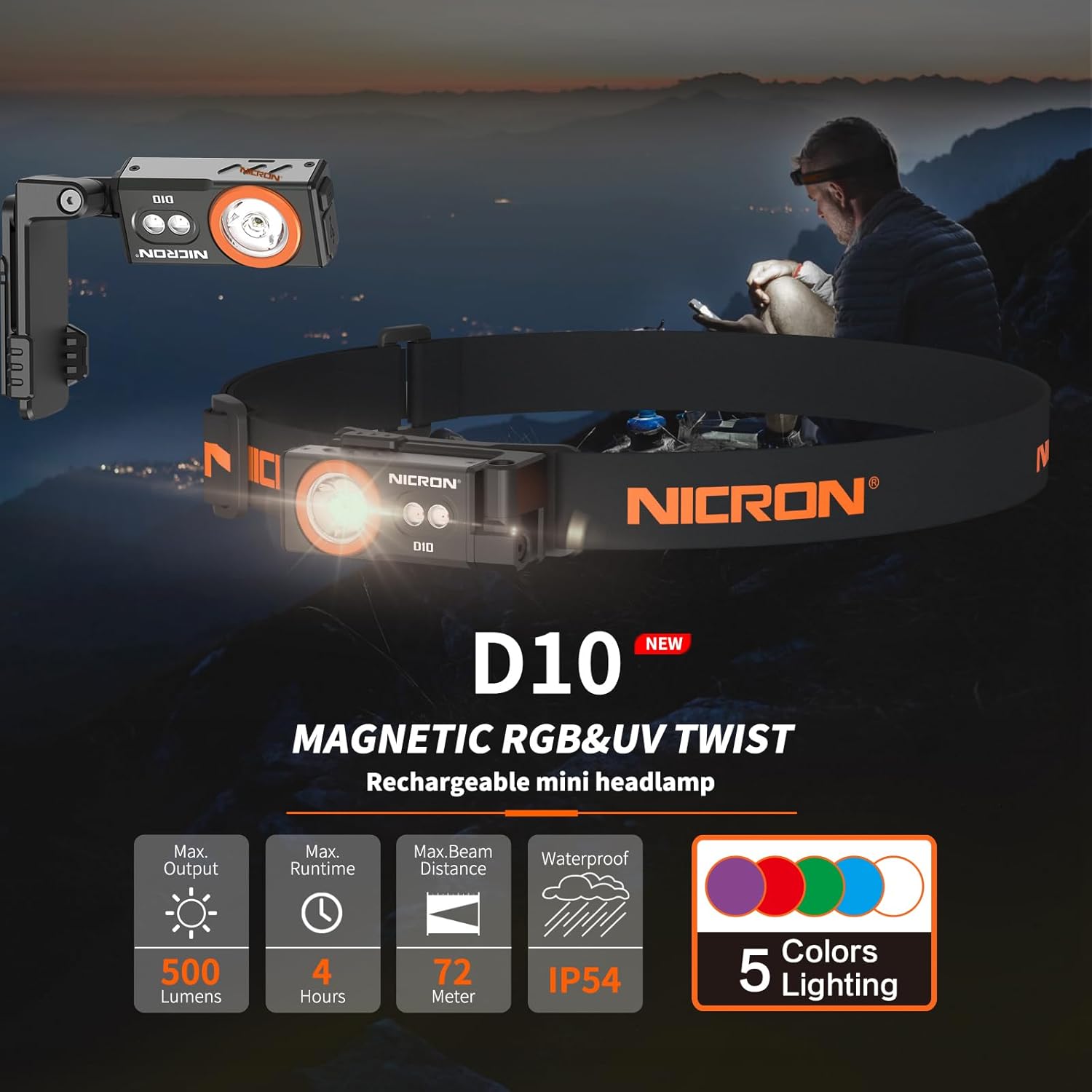

The NICRON D10 is a compact, versatile EDC (Everyday Carry) flashlight designed for various applications, including outdoor activities, work, and emergency situations. It features multiple light sources, including white, RGB, and UV lights, along with a durable, water-resistant design and convenient charging capabilities.

2. Fitur Produk

• Desain EDC Kompak: Small and portable, ideal for daily carry.
• Triple Light Source: Features a main white light (up to 500 lumens), RGB lights (red, green, blue), and a 395nm UV light.
• Konstruksi awét: IP54 water-resistant rating and 1-meter drop test certified, made from aluminum.
• Batré anu tiasa dicas deui: Built-in 450mAh lithium polymer battery with Type-C charging port, offering up to 23 hours runtime (depending on mode).
• Beam serbaguna: Projects light up to 72 meters with 1300cd max intensity.
• Dasar Magnét: Ngamungkinkeun pikeun napelkeun tanpa kudu make leungeun kana permukaan logam.
• Headband adjustable: Included for headlamp use, providing hands-free operation.
• Kepala Puteran: The flashlight head can rotate 180 degrees horizontally and 360 degrees vertically for flexible illumination angles.

3. Eusi Paket

• NICRON D10 Flashlight
• Majelis Lampu
• Kabel Ngecas USB-C
• Manual pamaké

Image: Package contents of the NICRON D10 flashlight, showing the flashlight unit, headband, USB-C cable, and user manual.

4. Setélan

4.1. Ngecas Awal

Before first use, fully charge the flashlight. The D10 uses a Type-C charging port for convenience.

1. Panggihan port ngecas USB-C dina senter.
2. Open the waterproof plug covering the port.
3. Connect the provided USB-C cable to the flashlight and a compatible USB power source (e.g., wall adapter, computer USB port).
4. The charging indicator light will turn red during charging and green when fully charged.
5. Once charging is complete, remove the cable and securely close the waterproof plug to maintain the IP54 rating.

Image: The flashlight showing a red light indicating charging and a green light indicating a full charge.

4.2. Attaching to Headband

To use the D10 as a headlamp, attach it to the provided headband assembly.

1. Align the flashlight with the slide rail on the headband bracket, following the direction of the arrow.
2. Squeeze the D10 and the headlight bracket together to slide them into place.
3. Push firmly until it clicks into position, indicating secure installation.
4. Adjust the headband for a comfortable and secure fit on your head.

Image: Step-by-step guide on attaching the flashlight to the headband bracket.

5. Parentah Operasi

5.1. Power On/Off and White Light Modes

• Hurungkeun/Pareuman: Click the power button once to turn the flashlight on or off.
• Ngalihkeun Modeu: When the flashlight is on, press and hold the power button to cycle through High, Medium, and Low white light modes. The flashlight has intelligent memory, returning to the last used mode when turned on again.
• Max Light Mode: Double-click the power button when the flashlight is off to enter the Max mode directly.

Image: Close-up of the flashlight's front, highlighting the main white LED and the two smaller RGB/UV LEDs.

5.2. Modeu Lampu RGB

• Activate RGB: Triple-click the power button when the flashlight is off to enter the RGB mode.
• Cycle RGB Colors: Press and hold the power button to switch between red light, red flash, green light, green flash, blue light, and blue flash modes.

Gambar: Examples of the flashlight's RGB modes in use, showing red for night vision, green for hunting, and blue for fishing.

5.3. UV Light Mode

• Activate UV: Press the power button for two seconds at any gear to enter the UV mode.

Image: The flashlight's UV mode illuminating a scorpion, demonstrating its use for observing insects or detecting pet stains.

5.4. Panggunaan Serbaguna

• Dasar Magnét: Use the strong magnetic base to attach the flashlight to metal surfaces for hands-free illumination, such as under a car hood or on a workbench.
• Sudut adjustable: The universal joint design allows for 180-degree horizontal and 360-degree vertical rotation, enabling precise light direction.
• Clip-on Function: The integrated clip allows you to attach the flashlight to clothing, hat brims, or pockets for chest lamp or clip hat lamp fungsionalitas.

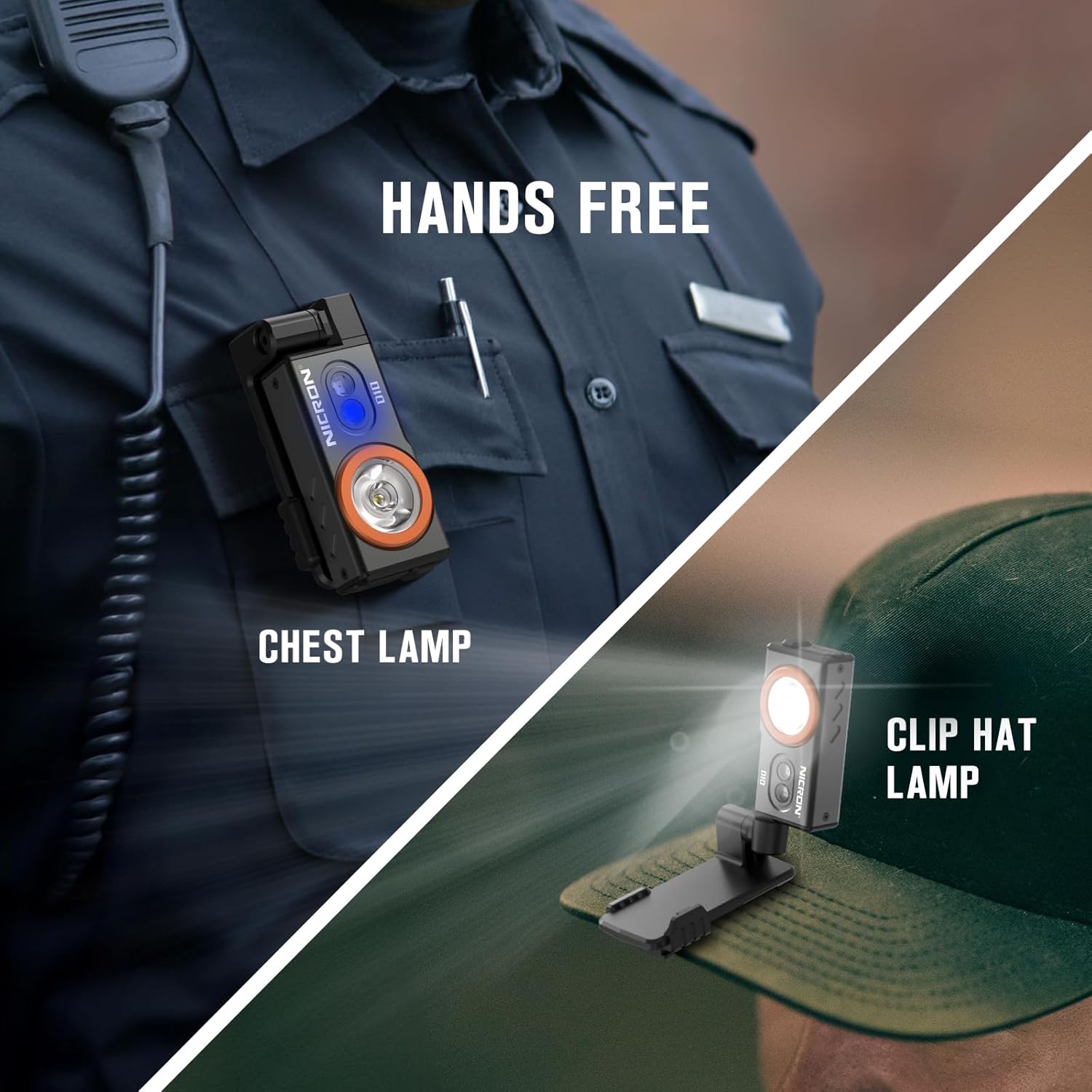

Image: Demonstrates the flashlight's adaptability, showing it clipped to a hat, worn as a chest lamp, and attached magnetically.

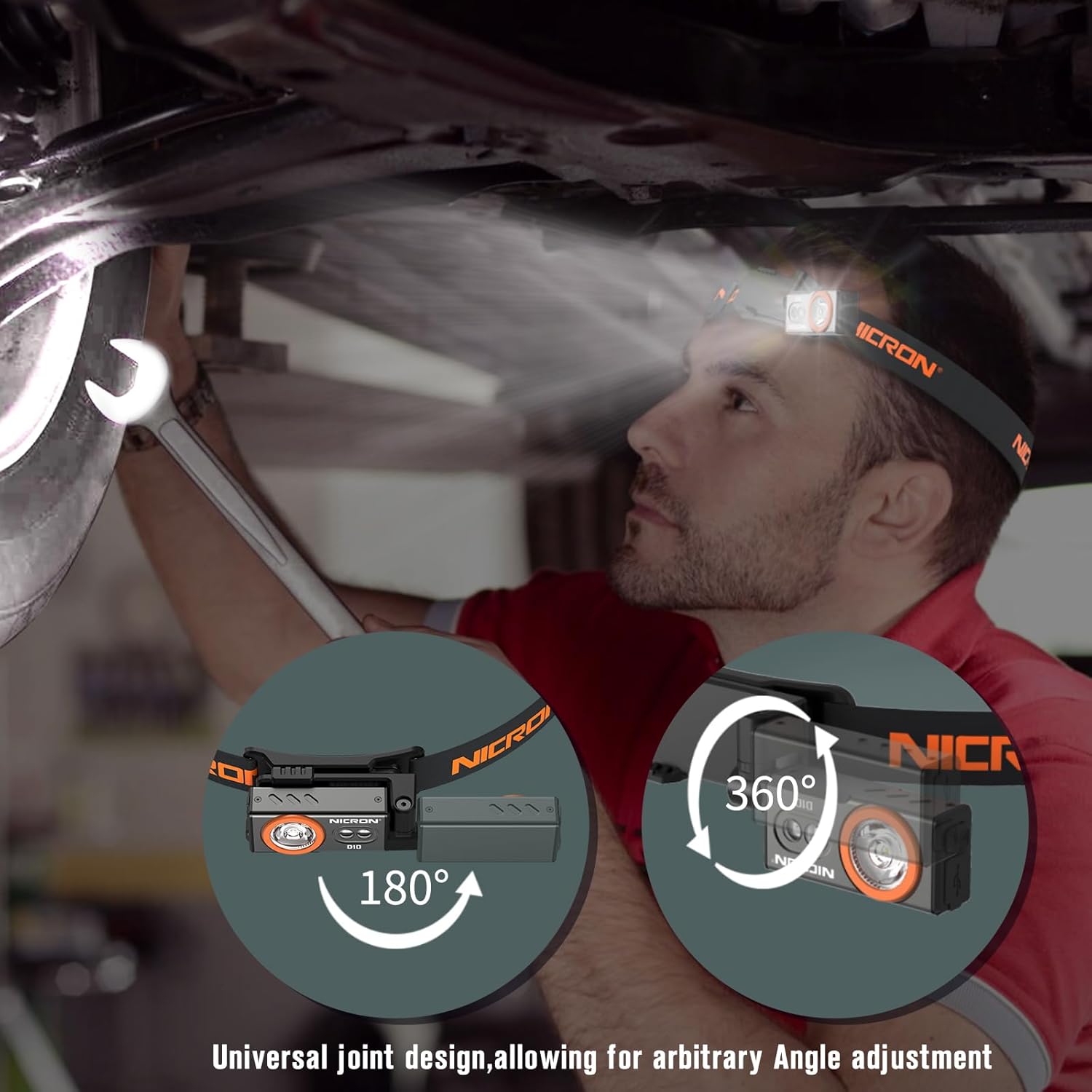

Image: The flashlight in headlamp mode, illustrating its 180-degree and 360-degree rotation for flexible lighting.

6. Pangropéa

• Ngecas: Recharge the battery at least every three months to extend battery life.
• beberesih: Ngusap senter ku hipu, damp lawon. Ulah make bahan kimia kasar atawa bahan abrasive.
• Panyimpenan: Nyimpen senter di tempat tiis, garing jauh ti sinar panonpoé langsung jeung hawa ekstrim.

7. Cara ngungkulan

• Senter teu hurung: Pastikeun batréna geus dieusian. Upami masalahna tetep, hubungi dukungan palanggan.
• Masalah ngecas: Verify the USB-C cable is properly connected and the power source is functional. Check the charging indicator light for status.
• asupan cai: If the waterproof plug is not securely closed, water may enter the device. Ensure the plug is always sealed when not charging.

8. Spésifikasi

Image: Detailed technical specifications table for the NICRON D10 flashlight.

9. Émbaran Kasalametan

• Do not look directly at the flashlight when it is on, as high brightness can cause damage to your eyes.
• Do not throw the headlamp into fire or water.
• Keep batteries away from children. If swallowed, seek medical attention immediately.
• Ensure the waterproof plug is securely closed when not charging to prevent water damage.

10. Garansi jeung Rojongan

The NICRON D10 EDC Flashlight comes with a Limited Warranty. For warranty claims or technical support, please refer to the contact information provided in the product packaging or visit the official NICRON websitus.

11. Video produk
