BAOFENG UV-25 Two Way Radio Instruction Manual

1. Produk Langkungview

The BAOFENG UV-25 is a high-power, dual-band two-way radio designed for versatile communication. It features multiple power settings, a broad frequency range, and a high-capacity battery with USB-C charging. This manual provides essential information for safe and effective operation.

Figure 1: BAOFENG UV-25 Two Way Radio with its main features.

2. Eusi Paket

Pariksa yén sadaya item aya dina bungkusan sateuacan neraskeun setelan.

• BAOFENG UV-25 Ham Radio Handheld x 1
• Baterai 5200 mAh x 1
• Kabel Ngecas USB x 1
• Adaptor ngecas x 1
• Tactical Gooseneck Antenna x 1
• Foldable Whip Antenna x 1
• Headset x 1

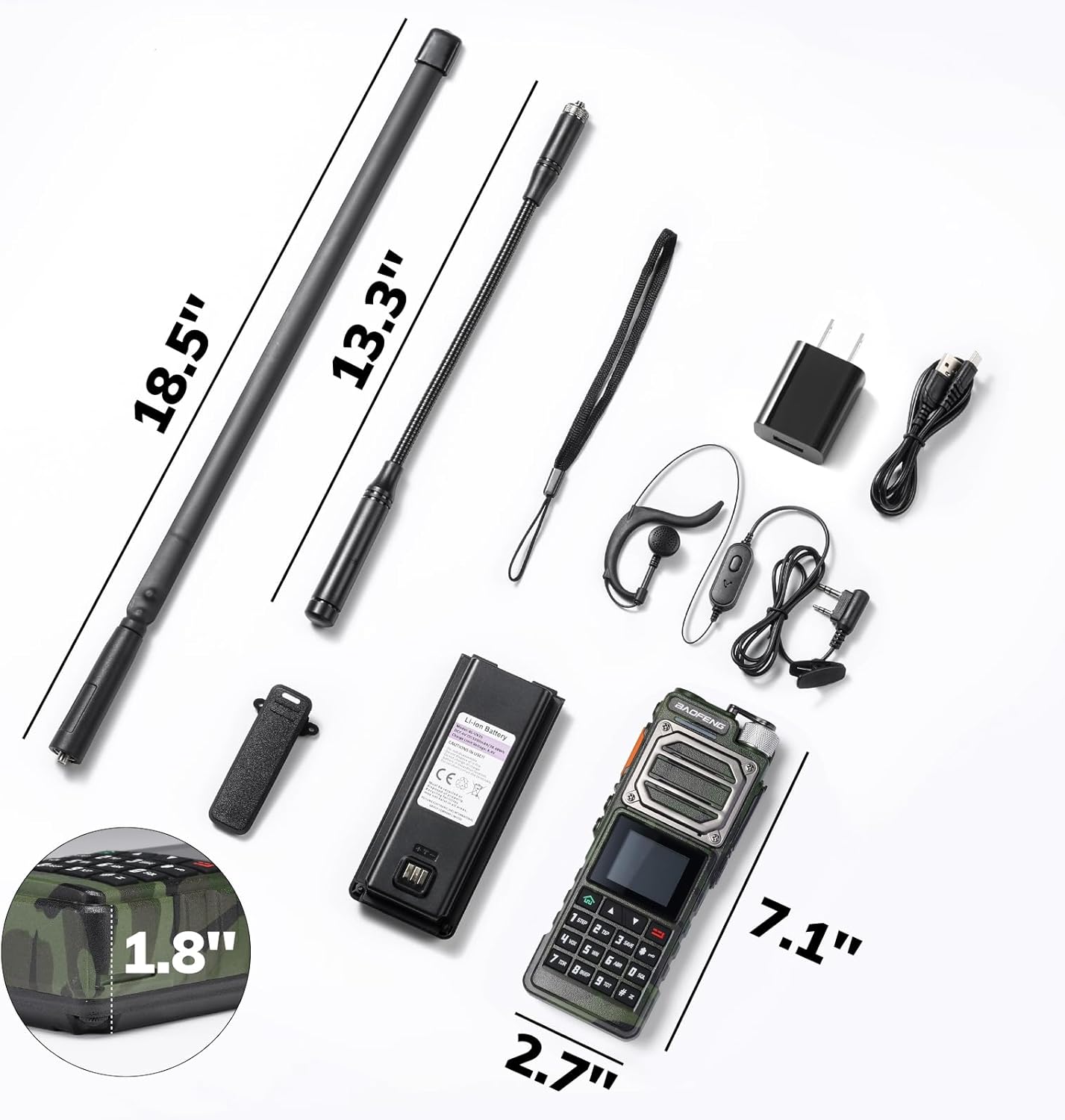

Figure 2: All components included in the BAOFENG UV-25 package.

3. Setélan

3.1 Ngalampirkeun Batré

1. Sejajarkeun pak batré jeung alur dina tonggong radio.
2. Slide the battery upwards until it clicks into place. Ensure it is securely fastened.

3.2 Ngagantelkeun anteneu

1. Screw the desired antenna (Tactical Gooseneck or Foldable Whip) clockwise onto the antenna connector at the top of the radio until it is finger-tight. Do not overtighten.

3.3 Ngecas Batré

The UV-25 radio is equipped with a 5200mAh battery that can be charged via a Type-C USB port.

1. Connect the USB-C charging cable to the Type-C port on the battery pack.
2. Connect the other end of the USB-C cable to the provided adapter, a laptop USB port, or a power bank.
3. Indikator ngecas dina radio bakal némbongkeun status ngecas.

Figure 3: The 5200mAh battery features a Type-C charging port for convenient power replenishment.

4. Parentah Operasi

4.1 Daya Hurung / Pareum sareng Kontrol Volume

1. To power on, rotate the volume knob clockwise until the display illuminates.
2. To power off, rotate the volume knob counter-clockwise until it clicks.
3. Adjust the volume by rotating the volume knob.

4.2 Pilihan Saluran sareng Input Frékuénsi

The radio supports up to 999 channels. You can select channels or input frequencies directly.

• Mode saluran: Use the UP/DOWN arrow keys to navigate through programmed channels.
• Modeu Frékuénsi: Enter desired frequencies directly using the numeric keypad.

4.3 Nepikeun jeung Narima

1. Pikeun ngirimkeun, pencét terus tahan tombol Push-To-Talk (PTT) di sisi radio. Nyarios kalawan jelas kana mikropon.
2. Leupaskeun tombol PTT pikeun nampa.

4.4 Salinan Frékuénsi Hiji-Konci

The UV-25 features a one-key frequency copy function for quick setup with other compatible devices.

1. Ensure both radios are powered on and within range.
2. On the source radio, select the frequency to be copied.
3. On the target UV-25 radio, press and hold the [SK1] key (refer to your radio's button layout for exact location) to initiate the frequency copy process.
4. The radio will search for and copy the frequency from the source radio.

Figure 4: Demonstrating the one-key frequency copy feature between two radios.

4.5 DTMF Dial Manual

The radio supports DTMF (Dual-Tone Multi-Frequency) manual dialing for various functions, such as repeater control or selective calling.

1. In frequency mode, press the appropriate key to enter DTMF dialing mode.
2. Use the numeric keypad to input the desired DTMF tones.
3. Press PTT to transmit the DTMF sequence.

Figure 5: Using the numeric keypad for DTMF manual dialing on the UV-25 radio.

5. Pangropéa

5.1 Perawatan Batré

• Hindarkeun sering-sering ngecas batré pikeun manjangkeun umurna.
• Simpen batréna di tempat anu tiis sareng garing upami henteu dianggo.
• Ulah ngalaan batréna ka suhu ekstrim atawa sinar panonpoé langsung.

5.2 Ngabersihan Radio

• Ngagunakeun lemes, damp lawon pikeun ngabersihkeun bagian luar radio.
• Entong nganggo bahan kimia kasar atanapi beberesih kasar.
• Ensure the USB-C port cover is closed to prevent dust and moisture ingress.

5.3 Pangaturan Umum

• The radio features a durable metal construction, but avoid unnecessary drops or impacts.
• This device is not water-resistant; protect it from water exposure.

Figure 6: The robust metal design of the BAOFENG UV-25 radio.

6. Cara ngungkulan

7. Spésifikasi

The BAOFENG UV-25 radio offers a range of features and capabilities:

• Kaluaran kakuatan: 10W High, 8W Medium, 5W Low (Actual measured output up to 11W)
• Rentang Frékuénsi: UV Dual-Band (136-174MHz, 400-520MHz), FM (76-108MHz), AM (108-136MHz), VHF (200-260MHz), UHF (350-390MHz), NOAA Weather Channels
• Saluran: 999
• Batré: 5200mAh, 7.4V, USB-C Rechargeable
• ukuran: 8.11 x 2.83 x 9.21 inches (Product), 8.11"D x 2.83"W x 9.21"H (Product)
• Beurat barang: 2.27 pon
• Fitur husus: Digital Display, Dual Band, Long Range, USB-C Rechargeable, Voice Operated Transmission (VOX)
• Tingkat tahan cai: Henteu Tahan Cai

Gambar 7: Leuwihview of the multi-band receiving capabilities of the UV-25 radio.

Figure 8: Display showing the 11W, 8W, and 5W power output settings.

8. Video Produk Resmi

9. Garansi jeung Rojongan

The BAOFENG UV-25 radio comes with an Garansi 18 BulanSalian ti éta, Pangrojong Hirupna is provided for this product. For any technical assistance or warranty claims, please refer to the contact information provided with your purchase or visit the official BAOFENG support websitus.
