Tenlamp G9 Podcast Equipment Audio Mixer User Manual

1. Bubuka

This manual provides detailed instructions for the Tenlamp G9 Podcast Equipment Audio Mixer. Please read this manual thoroughly before using the device to ensure proper operation and to maximize its features. The G9 mixer is designed for podcasting, live streaming, short video recording, and other audio content creation, offering a range of audio control and enhancement functions.

2. Produk Langkungview

The Tenlamp G9 is a versatile audio mixer featuring a 4.5-inch HD screen for real-time audio adjustments. It includes a 3-band EQ, dual reverb, voice changer, and noise reduction capabilities. The device is designed for plug-and-play compatibility with PCs, Macs, and mobile devices.

2.1 Fitur konci

Nyolok sareng Puter: Quick connection to PC, Mac, or mobile devices without complex setup.
Visual Audio Mixing: 4.5-inch HD screen displays audio adjustments in real-time.
Ngurangan Noise: Ensures clear voice output for recordings and live broadcasts.
Kontrol Komprehensif: Individual controls for microphone, music, headphone, main output, 3-band EQ, dual reverb, and pitch.
Kustomisasi sora: Includes voice changer and auto-tune functions.

2.2 Eusi pakét

1x Tenlamp G9 Audio Mixer
1x Kabel AC USB
1x Kabel Audio TRRS 3.5mm
1x USB-C OTG Cable
1x Manual Pamaké (dokumén ieu)

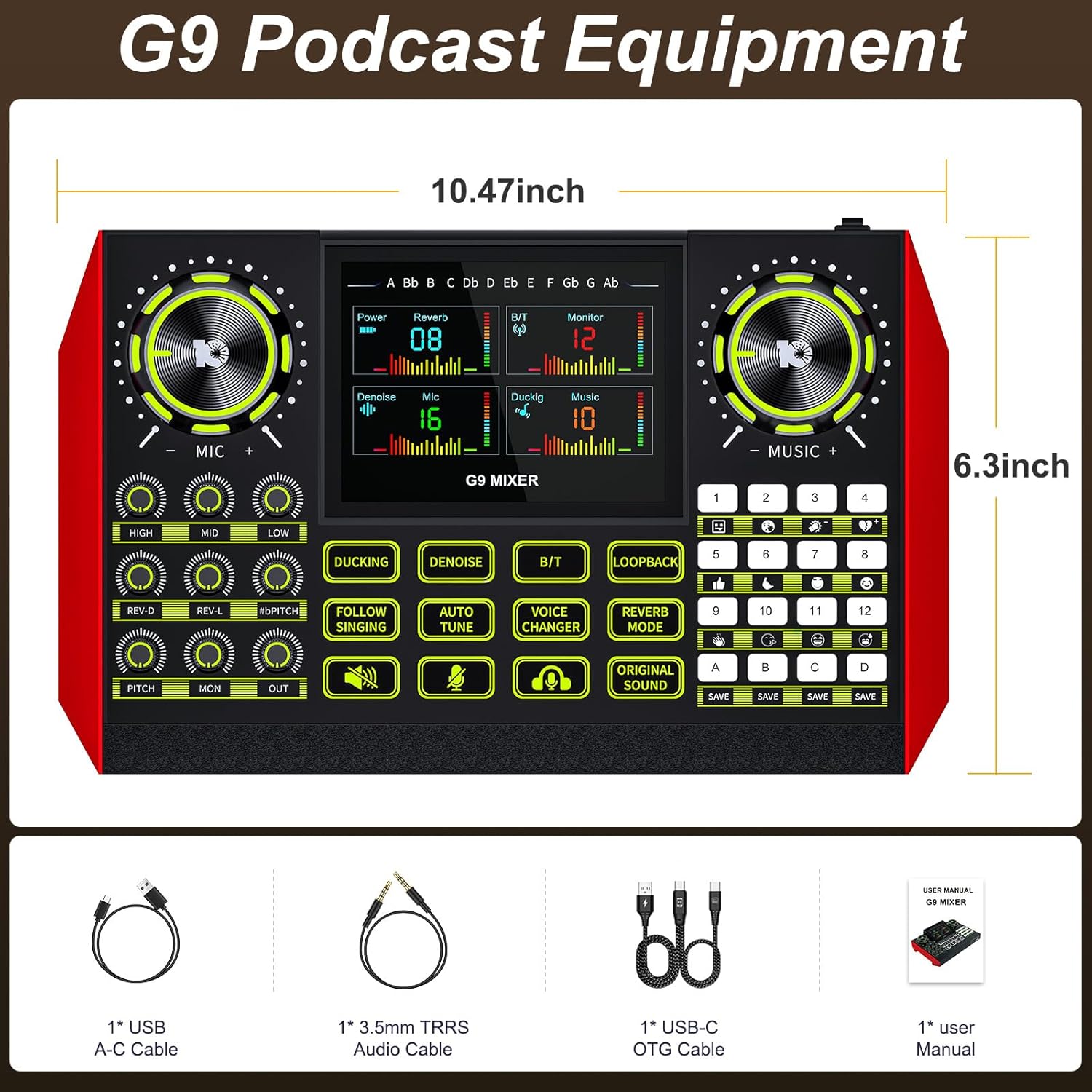

Tenlamp G9 Audio Mixer with included cables and user manual — Figure 1: Tenlamp G9 Audio Mixer and included accessories.

The G9 mixer measures approximately 10.47 inches in width and 6.3 inches in height.

3. Setélan

The Tenlamp G9 mixer is designed for straightforward setup. Follow these steps to connect your device.

3.1 Nyambung kana Kakuatan

Connect the provided USB A-C cable to the DC 5V port on the mixer and to a power source (e.g., computer USB port, USB wall adapter). The mixer also features a built-in battery for portable use.

3.2 Nyambungkeun Mikropon jeung Instrumén

Microphone Input (MIC1, MIC2): Use 1/8" (3.5mm) condenser microphones.
Dynamic Microphone Input (DYNAMIC): Use a 1/4" dynamic microphone.
Instrument Input (INST): Connect instruments via a 1/4" jack.
Mikropon headset: Connect a headset with a microphone to the dedicated headset port.

3.3 Connecting to Devices (PC, Mac, Mobile)

Digital Signal I/O (DIGITAL): Use the USB-C OTG cable to connect to a PC, Mac, or compatible mobile device for digital audio input and output.
Analog Input/Output (LIVE1, LIVE2, MUSIC): Use 3.5mm TRRS audio cables for analog connections to mobile devices or other audio sources.
Bluetooth (BT): Activate Bluetooth on the mixer and your device to pair wirelessly for music input.

3.4 Monitoring Headphones and Speaker Output

Monitoring Headphones (MONITORING): Connect headphones to the 3.5mm monitoring jack to hear your mix in real-time.
Speaker Output (SPK): Connect external speakers for audio playback.

Diagram showing various connection ports on the Tenlamp G9 Audio Mixer — Gambar 2: Leuwihview of connection ports on the G9 mixer.

4. Operasi

The G9 mixer provides intuitive controls for managing your audio. The 4.5-inch HD screen displays current settings and levels, allowing for precise adjustments.

4.1 Daya Hurung/Pareuman

Press and hold the Power button to turn the mixer on or off. The screen will illuminate upon activation.

4.2 Adjusting Microphone Settings

Use the dedicated knobs for TINGGI, MID, jeung RENDAH to adjust the 3-band equalizer for your microphone. The REV-D jeung REV-L knobs control the dual reverb depth and length. The PITCH knob adjusts the microphone's pitch.

Close-up of the Tenlamp G9 Audio Mixer showing knobs for fine-tuning audio, including EQ, reverb, and pitch controls. — Figure 3: Fine-tuning audio with EQ, reverb, and pitch controls.

4.3 Music and Output Volume

The MUSIK knob controls the input volume of background music. The MON knob adjusts the monitoring volume for your headphones, and the KALUAR knob controls the main output volume.

4.4 Fungsi Husus

DUCKING: Automatically lowers background music volume when you speak.
DENOISE: Activates the noise reduction feature for clearer vocals.
FOLLOW SINGING: Short press to turn on the sing-along function, which cycles between sing-along mode and vocal removal mode. Note: This feature is primarily for music from Bluetooth and the MUSIC jack.
TUNE OTOMATIS: Engages the auto-tune effect for vocals.
VOICE CHANGER: Cycles through four different voice changing modes (female voice, uncle voice, baby voice, magic voice).
LOOPBACK: Enables or disables the loopback function, which sends the output audio back to the input for recording or streaming.
MODÉH REVERB: Saluyukeun pangaruh reverb.
ORIGINAL SOUND: Restores the original sound without effects.

Tenlamp G9 Audio Mixer with 'FOLLOW SINGING' button highlighted — Figure 4: Activating the 'Follow Singing' function.

Tenlamp G9 Audio Mixer with 'VOICE CHANGER' button highlighted, showing icons for different voice modes — Figure 5: Cycling through different voice changing modes.

4.5 Customizable Sound Pads

The G9 mixer features four customizable sound pads (A, B, C, D). You can save your favorite voice modes, including current microphone volume, EQ, reverb, pitch, and auto-tune settings, to these pads for quick recall.

Tenlamp G9 Audio Mixer with 'SAVE' buttons for customizable sound pads highlighted — Figure 6: Saving custom sound settings to the sound pads.

5. Pangropéa

To ensure the longevity and optimal performance of your Tenlamp G9 Audio Mixer, follow these maintenance guidelines:

beberesih: Use a soft, dry cloth to clean the surface of the mixer. Avoid using abrasive cleaners, solvents, or harsh chemicals.
Panyimpenan: Simpen mixer dina tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
Penanganan: Nanganan alat kalayan ati-ati. Hindarkeun lungsurna atanapi nahan kana dampak anu kuat.
Paparan Cairan: Keep the mixer away from liquids. Moisture can damage internal components.

6. Cara ngungkulan

If you encounter issues with your Tenlamp G9 Audio Mixer, refer to the following common problems and solutions:

6.1 Taya Kaluaran Sora

Pariksa sambungan: Ensure all audio cables (microphone, headphones, speakers, device connections) are securely plugged into the correct ports.
Tingkat volume: Pariksa yén MIC, MUSIK, MON, jeung KALUAR volume knobs are not set to minimum or muted.
Setélan alat: On your connected PC, Mac, or mobile device, ensure the G9 mixer is selected as the default audio input and output device.
kakuatan: Confirm the mixer is powered on and has sufficient battery charge or is connected to a power source.

6.2 Kualitas Audio goréng / Noise

Ngurangan Noise: Aktipkeun DENOISE function to reduce background noise.
Nempatkeun mikropon: Ensure the microphone is positioned correctly and not too far from the sound source.
Kualitas Kabel: Use high-quality, shielded audio cables to minimize interference.
Tingkat gain: Adjust microphone gain to prevent clipping or distortion.

6.3 Voice Changer / Effects Not Working

Aktipkeun fungsi: Ensure the specific effect button (e.g., PARUBAH SORA, OTOMATIS TUNE) is pressed and active.
Input mikropon: Confirm that your microphone is properly connected and receiving input.

6.4 Difficulty with Initial Setup

While the G9 is plug-and-play, some users may find initial setup challenging. Double-check all physical connections and ensure the mixer is recognized by your operating system. Refer to the
