1. Bubuka
Welcome to the comprehensive user manual for your NAVEE ST3 Pro Electric Scooter. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
Figure 1: The NAVEE ST3 Pro Electric Scooter, showcasing its sleek design and smart app connectivity.
The NAVEE ST3 Pro is designed for adults and teens, offering a powerful and comfortable riding experience. Key features include a robust 1350W peak motor, a long-range 46.8V 12.75Ah lithium battery providing up to 47 miles on a single charge, and a top speed of 25 mph. It is equipped with a patented Damping Arm Suspension System for smooth rides, triple braking with TCS for enhanced safety, and self-sealing 10-inch tires for durability.
Gambar 2: Leuwihview of the NAVEE ST3 Pro's impressive performance specifications and features.
Produk Leuwihview Video
Video 1: Pajabat parantos réngséview of the NAVEE ST3 Pro electric scooter, highlighting its design and capabilities.
2. Pedoman Kasalametan
Your safety is paramount. Always wear a helmet and appropriate protective gear when riding. Familiarize yourself with local laws and regulations regarding electric scooter usage in your area.
Sistem ngerem
The ST3 Pro features a triple braking system: front drum brake, rear disc brake, and EABS (Electronic Anti-lock Braking System). This combination ensures 20% shorter braking distances and enhanced control, especially in challenging conditions.
Figure 3: The advanced triple braking system of the ST3 Pro for superior stopping power.
Sistem Kontrol Traksi (TCS)
The integrated Traction Control System (TCS) helps maintain grip and stability on wet or slick surfaces, preventing wheel slip and ensuring a safer ride. This feature can be managed via the NAVEE app.
Cahya sareng Pisibilitas
The scooter is equipped with a full LED lighting system, including a headlight, taillight, and reflectors, ensuring visibility day and night. The IPX5 waterproof rating allows for riding in various weather conditions.
3. Setélan
Unboxing jeung Majelis
Your NAVEE ST3 Pro comes partially assembled. Inside the package, you will find the scooter, a quick guide, instruction manual, charger, T-shape lever, and 4 screws. Follow the quick guide for initial assembly, primarily attaching the handlebars.
Ngecas Awal
Connect the charger to the charging port on the scooter and then to a power outlet. The charging indicator will show the charging status. A full charge typically takes approximately 10 hours.
Nyambungkeun kana Aplikasi NAVEE
Download the official NAVEE app from your smartphone's app store. Connect your scooter via Bluetooth to access various smart features, including speed modes, live diagnostics, remote locking, and ambient light customization. The app also supports Apple Find My integration for tracking your scooter.
Figure 4: The NAVEE app provides comprehensive control and monitoring for your scooter.
4. Operasi Scooter Anjeun
Powering On/Off and Speed Modes
Press the power button to turn the scooter on or off. The ST3 Pro offers three speed modes: Eco (3 mph), Drive (12 mph), and Sport (20 mph). These modes can be selected via the app or the scooter's controls to suit your riding environment and desired speed.
Figure 5: The intuitive digital display and ergonomic handlebars for easy control.
Riding Experience
The patented Damping Arm Suspension System, with its dual suspension, absorbs road vibrations and impacts from potholes, providing a remarkably smooth and comfortable ride on various terrains, from city streets to light gravel paths.
Video 2: A short demonstration of the smooth ride provided by the patented Damping Arm Suspension.
Mékanisme tilepan
The Genius 3S folding system allows you to quickly and easily fold the scooter into a compact size, reducing its volume by 60%. This makes it convenient for transport and storage.

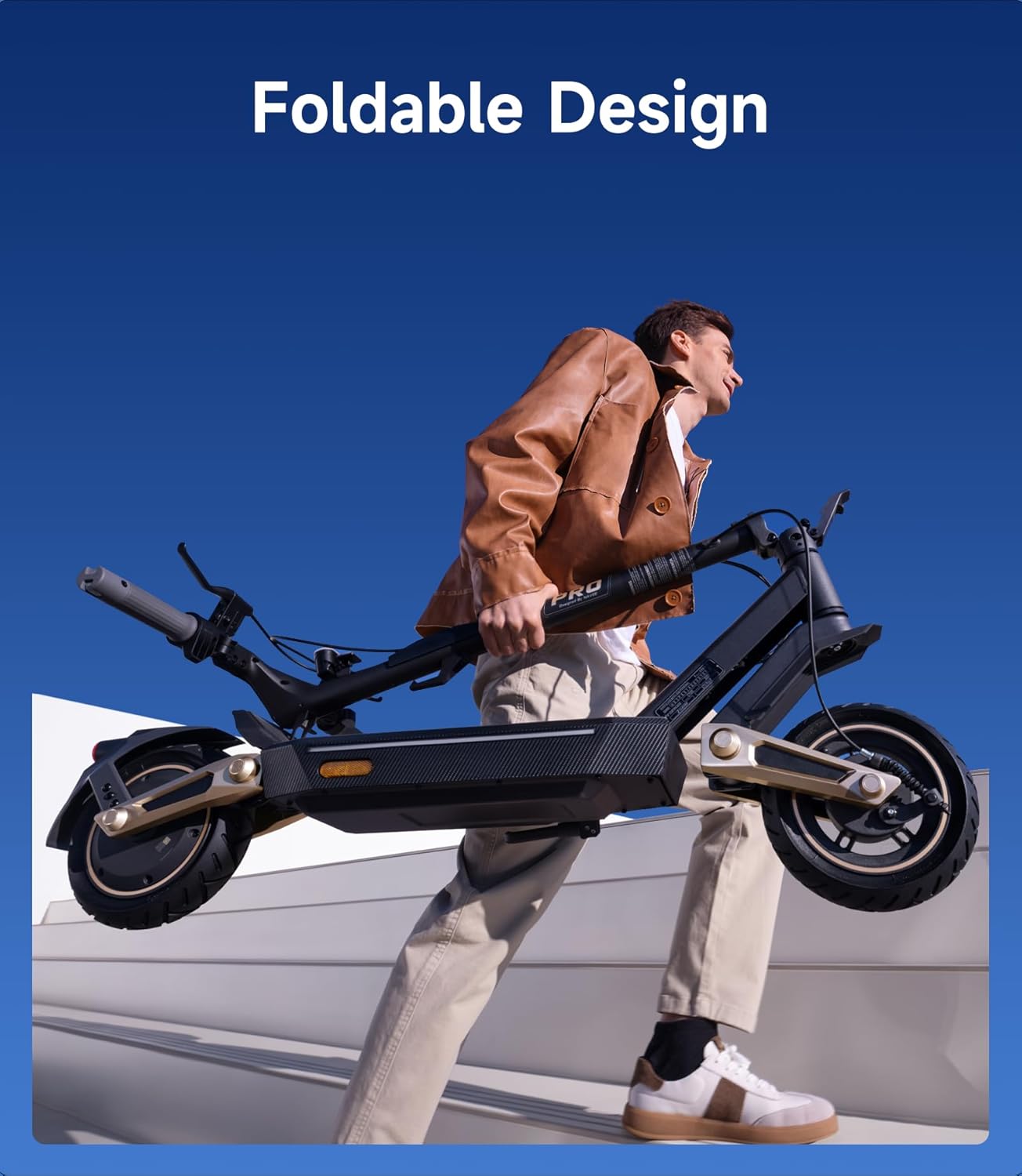

Figure 6: The compact and portable design of the ST3 Pro when folded.
Smart Features and Customization
Utilize the NAVEE app to customize ambient lighting with 15 different colors, track your riding records, and manage energy recovery settings. The Apple Find My integration provides an additional layer of security, allowing you to locate your scooter if it's misplaced.
Video 3: A detailed look at the NAVEE ST3 Pro's performance, including its 1350W motor and 47-mile range.
5. Pangropéa
Perawatan batré
The ST3 Pro is powered by a premium 597Wh lithium battery with an 8-layer Battery Management System (BMS) for protection against overcharge, short-circuit, and thermal issues. To prolong battery life, avoid fully discharging the battery frequently and store the scooter in a cool, dry place when not in use. Charge the battery regularly, even if the scooter is not being used for extended periods.
Figure 7: The premium 597Wh lithium battery with advanced safety features.
Pangropéa Ban
The 10-inch tubeless tires are self-sealing, automatically repairing minor punctures up to 4mm. Regularly check tire pressure and inspect for any signs of wear or damage. Proper tire maintenance ensures optimal performance and safety.
beberesih umum
Ngabersihan skuter anjeun sacara teratur nganggo iklanamp cloth. Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components. Ensure the scooter is dry before storing or charging.
6. Cara ngungkulan
This section addresses common issues you might encounter with your NAVEE ST3 Pro. For more complex problems, please refer to the warranty and support section.
- Scooter teu hurung: Ensure the battery is charged. Check all connections. If the issue persists, contact support.
- Jarak atawa kakuatan anu dikirangan: This could indicate a low battery charge or a need for battery calibration. Ensure tires are properly inflated.
- Sora anu teu biasa: Pariksa roda, rem, sareng suspensi upami aya bagian anu leupas atanapi halangan.
- Masalah konektipitas aplikasi: Ensure Bluetooth is enabled on your phone and the scooter is within range. Try restarting both the app and the scooter.
7. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | KAPAL |
| Ngaran modél | ST3 Pro-U |
| Motor Power (Peak) | 1350W |
| Max Speed | 25 mph (40 km/h) |
| Béntang Max | 47 Mil (75 km) |
| Batré | 46.8V 12.75Ah (597Wh) Lithium Battery |
| Waktu Ngecas | Kira-kira. 10 jam |
| Ban | 10-inch Self-Sealing Tubeless Tires |
| Suspensi | Patent Damping Arm™ Suspension (Dual Suspension) |
| Sistem ngerem | Front Drum + Rear Disc + Rear EABS |
| Beban Max | 265 Pon (120 kg) |
| Item Beurat | 55 Pon (25 kg) |
| Ukuran (Unfolded) | 47.2 "L x 23.6" W x 51.4" H |
| Peunteun waterproof | IPX5 |
| Komponén Kaasup | NAVEE Electric Scooter ST3 Pro, Quick Guide, Instruction Manual, Charger, T Shape Lever, 4x Screws |
Figure 8: Detailed dimensions and weight specifications of the ST3 Pro.
8. Garansi jeung Rojongan
NAVEE offers reliable local support with a 2-year warranty included for the scooter (12 months for the battery). A nationwide network of local service centers is available for flat tire repairs, motor tuning, and technical support. For assistance, you can reach the friendly support team via phone, email, or direct message with a 24-hour response time.
For more information or to contact support, please refer to the contact details provided in your Quick Guide or visit the official NAVEE websitus.
