Buku Panduan Pangguna Jam Alarm Pamuter CD Greadio Boombox

Parentah Kasalametan penting

Please read these instructions carefully before operating the unit and retain them for future reference. Adhere to all warnings on the appliance and in the operating instructions. Follow all instructions.

• Entong nganggo alat ieu caket cai.
• Ngabersihan ngan ku kaén garing.
• Ulah meungpeuk sagala bukaan ventilasi. Pasang saluyu sareng parentah produsén.
• Entong dipasang di deukeut sumber panas sapertos radiator, register panas, kompor, atanapi aparat sanésna (kalebet ampLiifiers) anu ngahasilkeun panas.
• Nangtayungan kabel listrik tina leumpang atawa diciwit, utamana dina colokan, wadah merenah, jeung titik dimana aranjeunna kaluar tina aparat.
• Ngan anggo kantétan/aksésori anu ditunjuk ku produsén.
• Cabut colokan alat ieu nalika badai kilat atanapi nalika henteu dianggo kanggo waktos anu lami.
• Rujuk sadayana jasa ka tanaga jasa anu mumpuni. Diperlukeun ngalayanan nalika aparatur ruksak ku cara naon waé, sapertos kabel catu daya atanapi colokan rusak, cairan tumpah atanapi barang murag kana aparatur, aparatur parantos kakeunaan hujan atanapi lembab, henteu beroperasi normal. , atawa geus turun.

Produk Leuwihview

The Greadio GB-W17 is a versatile CD player alarm clock boombox designed for home use, offering multiple audio playback options and convenience features.

Gambar: Hareupeun view of the Greadio GB-W17 CD Player Alarm Clock Boombox, showcasing its large digital display, control buttons, and CD compartment. A remote control and battery are also visible.

Fitur konci:

• CD Player (CD, CD-R/RW, MP3/WMA compatible)
• Bluetooth 5.1 Connectivity (Transmitter & Receiver)
• Radio FM
• Input AUX
• USB / TF Card Playback
• Alarm Clock with Dual Alarms and Snooze
• 8 White Noise Soundscapes
• Dimmable LCD Display
• Diwangun-di 5000mAh Batré Rechargeable
• Kadali jauh

Image: An infographic illustrating the 12 key functions of the Greadio CD Player, such as CD playback, Bluetooth, alarm clock, and various input options.

Naon dina Box

Saatos unboxing, mangga pastikeun sadaya item di handap ieu aya:

• Digital Alarm Clock Boom Box CD Player Combo (1 unit)
• Pin (1 unit) - (Note: The purpose of the "Pin" is unclear from the product description, it might be for reset or SIM tray style access for a component. User should refer to the included physical manual for clarification.)
• AUX Cord (1 unit)
• Remote Control (1 unit)
• Type-C Cord (1 unit)
• Adapter (1 unit)
• Manual pamaké (1 unit)

Guide Setup

1. Powering Dina Alat

The Greadio GB-W17 can be powered via the included AC adapter or its built-in rechargeable battery.

• Daya AC: Connect the Type-C cord to the unit's Type-C port and the adapter to a standard wall outlet.
• Daya Batré: The unit comes with a built-in 5000mAh lithium-ion battery. Ensure it is charged before portable use.

Image: The Greadio CD Player connected to a wall outlet via its USB-C cable and adapter, indicating it is charging.

2. Muatan Awal

For optimal battery life, fully charge the unit before its first portable use. The battery indicator on the LCD will show charging status.

3. Pamasangan Batré Remote Control

The remote control requires batteries (not specified in product data, typically AAA or button cell). Open the battery compartment on the back of the remote and insert batteries according to polarity markings.

Parentah Operasi

Kadali dasar

Familiarize yourself with the buttons on the unit and the remote control.

• FUNGSI: Cycle through modes (CD, Bluetooth, FM, AUX, USB, TF).
• kakuatan: Hurungkeun unit / pareuman.
• MUTER / Reureuh: Mimitian atanapi ngareureuhkeun playback.
• Saméméhna/salajengna: Skip tracks/stations.
• VOL-/VOL+: Saluyukeun polumeu.
• WAKTU: Nyetél waktos.
• SNOOZE: Activate snooze during alarm.
• DIMMER: Saluyukeun kacaangan LCD.
• ALARM 1/ALARM 2: Nyetél alarm.

1. Nyetél Jam sareng Alarm

The unit features a large, dimmable LCD display for time and alarm settings.

• Setélan waktos: Pencét éta WAKTU kancing. Paké Sateuacanna / SUSUSNA to adjust hours/minutes, and WAKTU deui pikeun mastikeun.
• Setélan Alarm: Pencét ALARMA 1 or ALARMA 2. Paké Sateuacanna / SUSUSNA to set alarm time. Press the alarm button again to select wake-up source (CD, White Noise, FM Radio, USB, TF Card). Confirm settings.
• Fungsi Tungkul When an alarm sounds, press SNOOZE for a temporary pause.
• LCD dimmer: Pencét éta DIMMER button to cycle through brightness levels (e.g., 25%, 50%, 100%).

Image: The Greadio CD Player functioning as an alarm clock on a nightstand, demonstrating its dual alarm capability and large display.

2. CD Playback

The unit supports CD, CD-R/RW, and MP3/WMA discs.

• Buka tutup kompartemen CD.
• Selapkeun CD kalawan sisi labél nyanghareup ka luhur.
• Close the lid. The unit will automatically switch to CD mode or you can select it using the FUNC kancing.
• Paké MUTER / Reureuh, Sateuacanna / SUSUSNA pikeun ngadalikeun playback.
• Program Play: Refer to the physical manual for detailed instructions on programming track sequences.

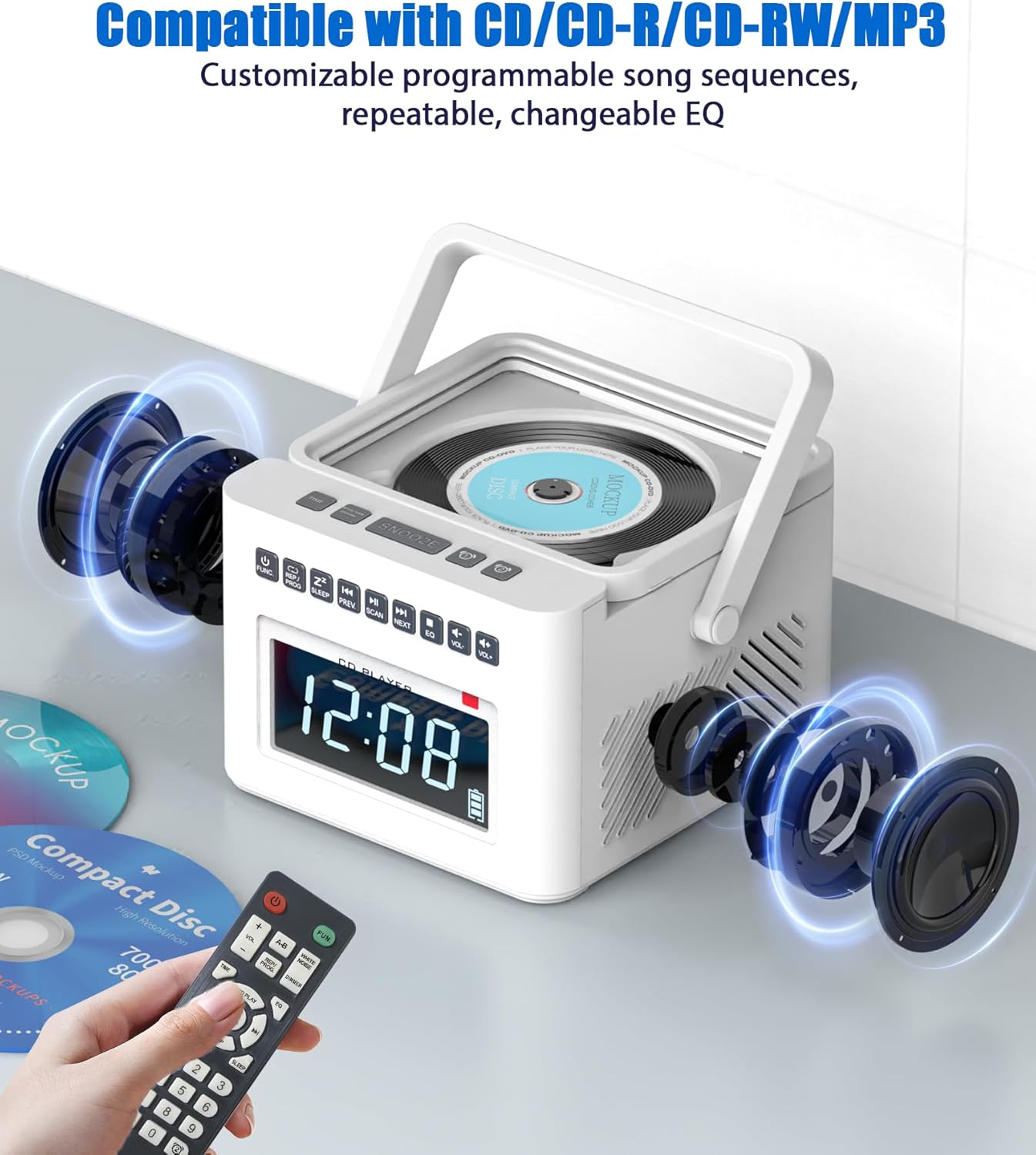

Image: The Greadio CD Player with an exploded view showing its internal speakers, emphasizing its compatibility with various CD formats and remote control functionality.

3. Operasi Bluetooth

The GB-W17 functions as both a Bluetooth transmitter and receiver.

Bluetooth Receiver Mode (Connect your phone to the boombox)

• Pencét éta FUNC button to select Bluetooth mode. The LCD will display "BLUE" and the Bluetooth indicator will flash.
• On your mobile device (phone, tablet, laptop), enable Bluetooth and search for "GB-W17".
• Select "GB-W17" to pair. Once connected, the Bluetooth indicator will stop flashing.
• Anjeun ayeuna tiasa ngalirkeun data audio tina alat anjeun ka boombox.

Image: A visual representation of the Greadio CD Player acting as a Bluetooth receiver, receiving audio from a smartphone, tablet, or computer.

Bluetooth Transmitter Mode (Connect the boombox to Bluetooth headphones/speakers)

• Ensure the boombox is playing audio from a source like CD, FM, AUX, USB, or TF.
• Press and hold the Bluetooth button (if available, otherwise refer to manual for specific button for transmitter mode activation). The unit will enter pairing mode.
• Pasang headphone atanapi spiker Bluetooth anjeun kana mode papasangan.
• The boombox will automatically connect to the nearest discoverable Bluetooth audio device.
• Audio from the boombox will now be transmitted to your connected Bluetooth headphones/speaker.

Image: An illustration demonstrating the Greadio CD Player's capability to transmit Bluetooth audio to external devices like headphones or other Bluetooth speakers.

4. Operasi Radio FM

• Pencét éta FUNC button to select FM Radio mode.
• Panjangkeun anteneu teleskopik pikeun panarimaan anu langkung saé.
• Pencét jeung tahan SCAN (or Play/Pause button, depending on model) to auto-scan and save available stations.
• Paké Sateuacanna / SUSUSNA to navigate through saved stations or manually tune.

Image: The Greadio CD Player with its antenna extended, highlighting its FM radio functionality and the importance of antenna positioning for optimal reception.

5. Putereun Kartu USB/TF

• Selapkeun flash drive USB kana port USB atanapi kartu TF kana slot kartu TF.
• Pencét éta FUNC button to select USB or TF mode.
• Unit bakal otomatis mimiti muterkeun audio anu cocog files (MP3/WMA).
• Paké Sateuacanna / SUSUSNA pikeun skip lagu.

Image: A collage demonstrating the multi-mode playback capabilities of the Greadio CD Player, including FM radio, USB, TF card, and AUX input.

6. AUX Input

• Connect an external audio device (e.g., smartphone, MP3 player) to the AUX-IN port using the provided AUX cable.
• Pencét éta FUNC tombol pikeun milih modeu AUX.
• Audio tina alat éksternal anjeun ayeuna bakal diputer ngaliwatan spiker boombox. Kontrol pamuteran tina alat éksternal anjeun.

7. Fungsi Noise Bodas

The unit includes 8 soothing white noise tracks.

• Pencét éta SORA PUTIH button (or cycle through FUNC until White Noise mode is selected).
• Paké Sateuacanna / SUSUSNA to select different white noise sounds (e.g., Brook Bird, Water Stream, Lullabies, Cricket, Thunder Rain, Rainstorm).
• Set the auto-off timer (10-90 minutes) if desired, by pressing the SARE kancing.

Image: The Greadio CD Player highlighting its 8 built-in white noise soundscapes, designed to aid relaxation and sleep.

Pangropéa sareng Perawatan

• beberesih: Anggo kaén anu garing sareng lemes pikeun ngabersihan bagian luar unit. Ulah make cleaners abrasive atawa pangleyur.
• Perawatan Lénsa CD: Avoid touching the CD lens. If necessary, use a specialized CD lens cleaner disc.
• Perawatan batré: To prolong battery life, avoid fully discharging the battery frequently. Recharge the unit regularly, especially if not used for extended periods.
• Panyimpenan: Simpen unit dina tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Ventilasi: Pastikeun bukaan ventilasi teu diblokir pikeun nyegah overheating.

Pamérésan masalah

spésifikasi

Image: An illustration detailing the approximate playback times for the Greadio CD Player on its 5000mAh battery across various modes (TF, CD, Bluetooth, FM, USB).

Garansi sareng Rojongan

Émbaran jaminan

Greadio products typically come with a limited warranty covering manufacturing defects. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Retain your proof of purchase for warranty claims.

Rojongan Palanggan

For any questions, technical assistance, or warranty claims, please contact Greadio customer support. Contact information is usually available on the official Greadio websitus atanapi dina bungkusan produk.

You may also visit the Greadio Store on Amazon for more information and support resources: Greadio Amazon Store
