Ortofon MC X10 Moving Coil Phono Cartridge

Bubuka

The Ortofon MC X10 is a high-performance Moving Coil (MC) phono cartridge designed to deliver exceptional audio fidelity for vinyl playback. This manual provides essential information for the proper installation, operation, and maintenance of your MC X10 cartridge to ensure optimal performance and longevity.

The MC X10 features an elliptical diamond stylus and is part of the MC X Series, which incorporates advanced design principles for superior sound reproduction.

Fitur konci

• Sistem Kumparan Pérak Murni: Coils wound with high-purity silver wire for exceptional signal clarity and precise sound delivery.
• Efisiensi Magnét Maksimum: A newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke ensures a clean and powerful signal path.
• Karét D anu Dimekarkeun Khususampers: Essential for controlling coil movement, minimizing vibrations, and enabling precise coil motion for superior tracking and reduced distortion.
• Konstruksi anu kuat: The MC X Series embodies modern elegance with a distinctive design that complements the tonearm, featuring intricate detailing and craftsmanship.

Internal view of the Ortofon MC X10 cartridge, highlighting the pure silver coil system and internal components designed for signal clarity.

Diwincik view of the Ortofon MC X10's magnet system, showcasing the one-piece pole cylinder and rear magnet yoke engineered for maximum magnetic efficiency.

Setup sareng Instalasi

Proper installation is crucial for the performance of your MC X10 cartridge. Please follow these steps carefully.

Pamasangan Cartridge

1. Pastikeun turntable anjeun dipareuman sareng dicabut.
2. Carefully attach the MC X10 cartridge to your tonearm's headshell. The cartridge body features threaded holes, simplifying installation by allowing direct screwing with a suitable torx driver, eliminating the need for fiddly nuts.
3. Connect the tonearm wires to the corresponding pins on the back of the cartridge. Ensure correct color coding: Red (Right Hot), Green (Right Ground), White (Left Hot), Blue (Left Ground).

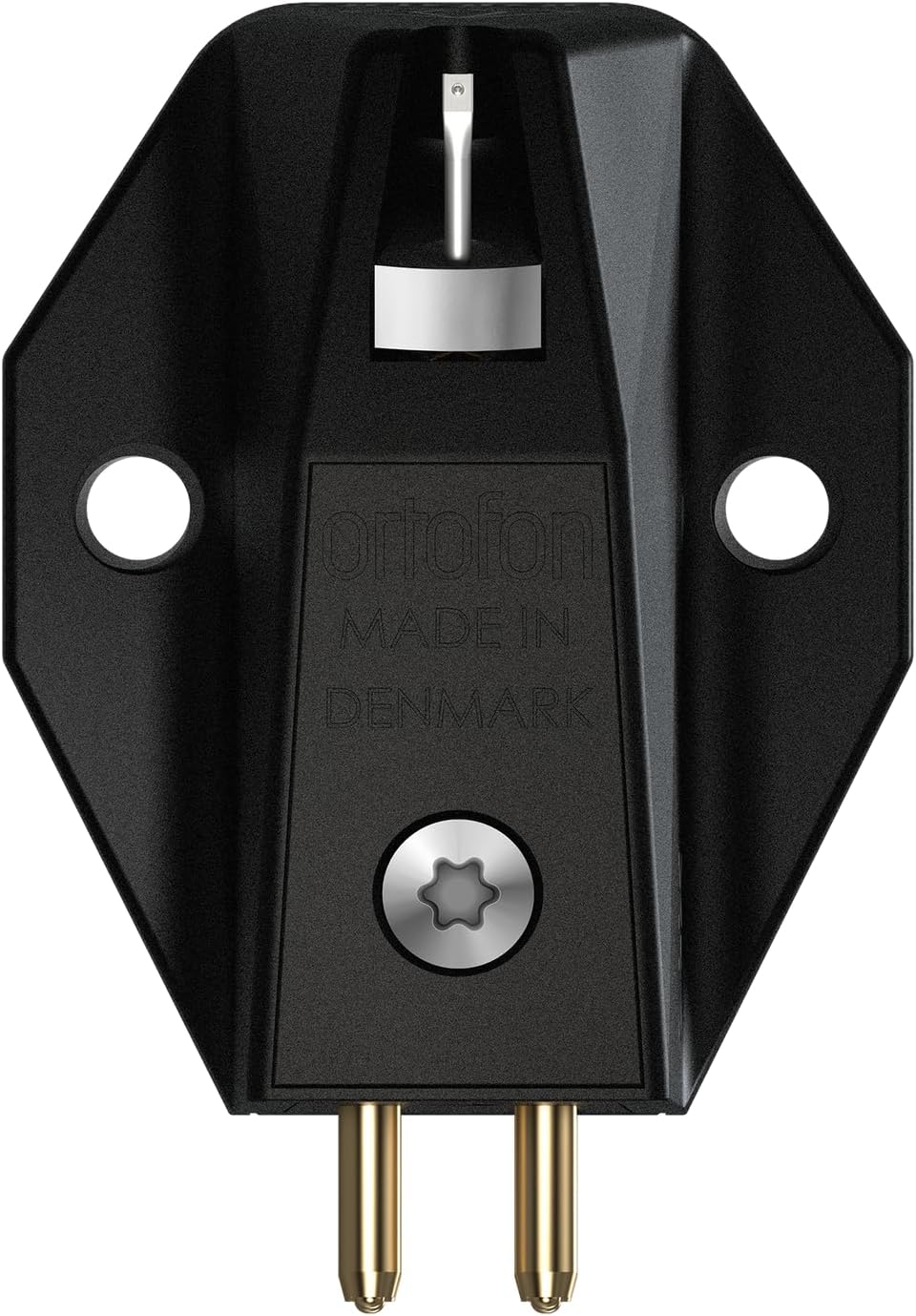

Puncak view of the Ortofon MC X10 cartridge, illustrating the threaded mounting holes and the color-coded connection pins for easy installation.

Tukangeun view of the Ortofon MC X10 cartridge, displaying the gold-plated electrical connection pins for secure signal transfer.

Alignment and Tracking Force

1. Cartridge Alignment: Use a suitable alignment protractor (e.g., Dr. Feikert Alignment Protractor) to precisely align the cartridge within the headshell. This ensures the stylus tracks the record grooves correctly, minimizing distortion and maximizing sound quality.
2. Kakuatan nyukcruk: The recommended tracking force for the MC X10 is 2.0 grams. Adjust your tonearm's counterweight to achieve this precise force. Accurate tracking force is critical for stylus longevity and optimal sound.
3. Anti Skating: Set the anti-skating mechanism on your tonearm according to the manufacturer's recommendations, typically matching the tracking force setting.

The Ortofon MC X10 cartridge mounted on a tonearm, demonstrating a typical installation scenario before final alignment and tracking force adjustments.

Phon Stage Pertimbangan: As a Low Output Moving Coil (LOMC) cartridge, the MC X10 requires a phono preamplifier specifically designed to handle LOMC cartridges, often with higher gain and appropriate loading options, to achieve its full sonic potential.

Parentah Operasi

Once installed and aligned, your Ortofon MC X10 cartridge is ready for use. Handle with care to ensure its longevity.

Periode putus

Like many high-fidelity audio components, the MC X10 cartridge benefits from a break-in period. Initial sound may be perceived as slightly constrained. Optimal performance is typically achieved after 24-72 hours of playback, with some cartridges continuing to improve up to 100 hours. During this period, the suspension and stylus will settle, leading to a more relaxed and open sound presentation.

Maénkeun rékaman

1. Ensure your records are clean and free of dust.
2. Gently lower the tonearm onto the record using the cueing lever. Avoid dropping the tonearm directly onto the record.
3. At the end of playback, use the cueing lever to lift the tonearm and return it to its rest.

Pangropéa

Regular maintenance will preserve the performance and extend the life of your MC X10 cartridge.

Stylus beberesih

Dust and debris can accumulate on the stylus, affecting sound quality and potentially damaging records. Clean the stylus regularly using a soft stylus brush, brushing gently from back to front (in the direction of play). For stubborn deposits, a specialized stylus cleaning fluid can be used sparingly according to the fluid manufacturer's instructions.

Deukeut hareup view of the Ortofon MC X10 cartridge, clearly showing the delicate elliptical diamond stylus which requires careful handling and cleaning.

Cartridge Protection

Always use the provided stylus guard when the cartridge is not in use or during transport to prevent accidental damage to the stylus.

The Ortofon MC X10 cartridge with its clear protective stylus guard securely in place, demonstrating proper storage and protection.

Pamérésan masalah

If you experience issues with your MC X10 cartridge, consider the following common troubleshooting steps:

• No Sound or Weak Sound:
  • Check all connections from the cartridge to the tonearm, phono stage, jeung amplifier. Ensure they are secure and correctly wired.
  • Verify that your phono stage is correctly set for a Moving Coil (MC) cartridge and has sufficient gain.
• Distorted Sound or Skipping:
  • Re-check tracking force and anti-skating settings. Incorrect settings are a common cause of distortion.
  • Inspect the stylus for dirt or damage. Clean the stylus if necessary.
  • Verify cartridge alignment using a protractor.
  • Ensure records are clean and free of scratches.
• Hum atanapi Buzz:
  • Ensure the turntable's ground wire is properly connected to your phono stage atawa amppangagung.
  • Check for proximity to electrical interference sources (e.g., power supplies, motors).
  • Verify that tonearm wires are not touching other cables.

If problems persist after attempting these steps, please consult a qualified audio technician or contact Ortofon customer support.

spésifikasi

The following specifications apply to the Ortofon MC X10 Moving Coil Phono Cartridge:

Garansi sareng Rojongan

Ortofon products are manufactured to the highest standards and undergo rigorous quality control. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Ortofon websitus.

For technical support, service, or further inquiries, please contact your authorized Ortofon dealer or visit the Ortofon official websitus pikeun inpo kontak.

Ortofon Resmi Websitus: www.ortofon.com
