Buku Panduan Stop Kontak Timer Luar Ruangan Digital TiFFCOFiO TF-261B

Bubuka

This manual provides detailed instructions for the setup, programming, and operation of your TiFFCOFiO TF-261B Digital Outdoor Timer Outlet. This device is designed to automate the control of outdoor electrical appliances, such as lights, with programmable on/off cycles. Please read this manual thoroughly before use to ensure proper function and safety.

Émbaran Kasalametan

• Ensure the timer is securely mounted and protected from direct water spray, although it is designed to be waterproof.
• Ulah ngalelepkeun timer kana cai.
• Do not exceed the maximum load capacity of 15A/1875W. Overloading can cause overheating and fire.
• Always plug the timer into a grounded electrical outlet.
• Jauhkeun barudak tina timer sareng alat-alat anu nyambung.
• Pegatkeun sambungan kakuatan sateuacan ngalakukeun pangropéa atanapi beberesih.
• This product is ETL Listed, indicating compliance with North American safety standards.

Eusi pakét

• 1 x TiFFCOFiO TF-261B Digital Outdoor Timer Outlet
• 1 x Manual Instruksi

Produk Leuwihview

Familiarize yourself with the components and controls of your outdoor timer.

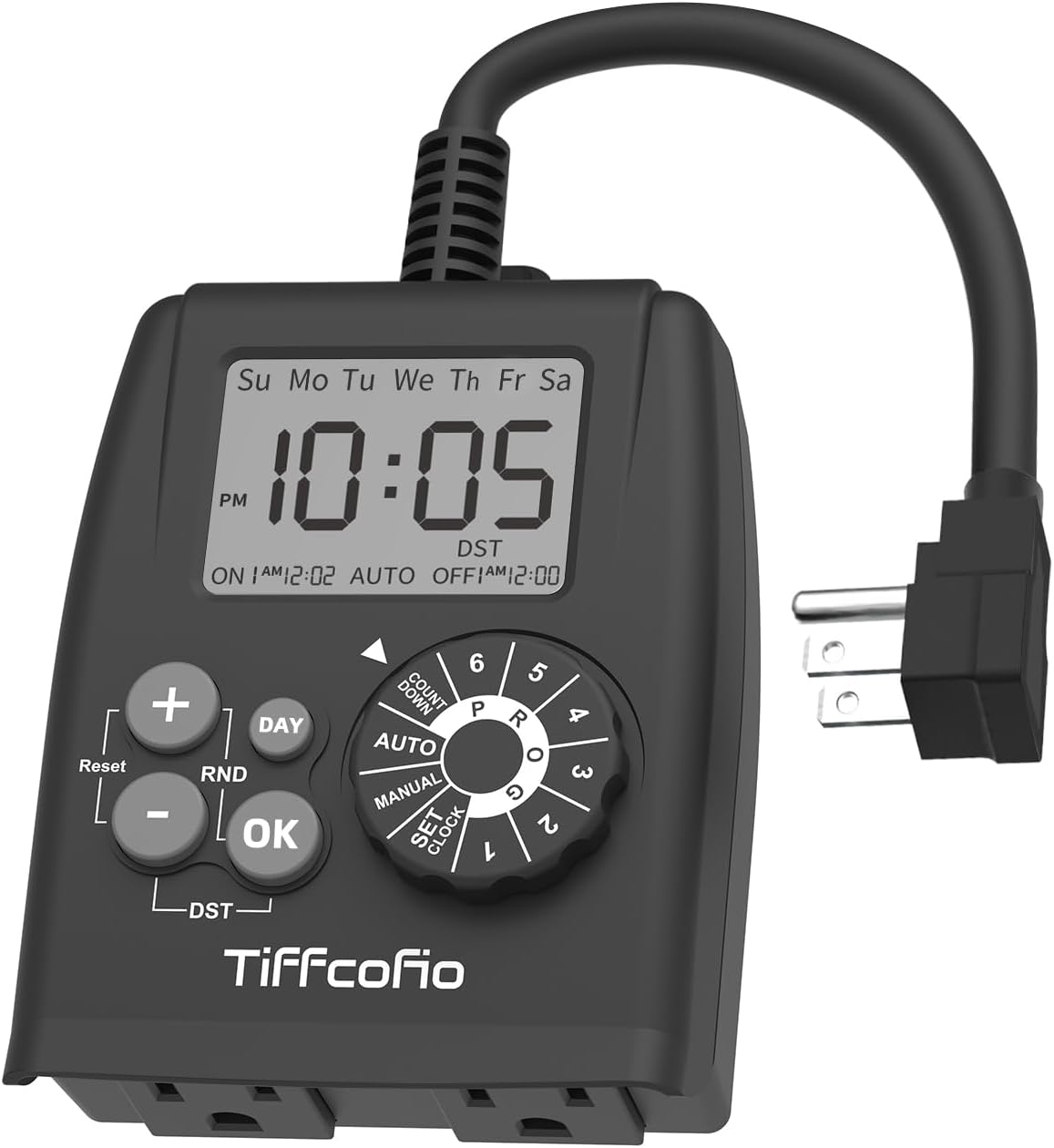

Gambar 1: Hareupeun view of the TiFFCOFiO TF-261B Digital Outdoor Timer Outlet, showing the display, control buttons, and rotary dial.

Gambar 2: Detil view highlighting the large 2.5" LCD screen, ON/OFF time display, and two grounded outlets.

Figure 3: Close-up of the two grounded outlets and the integrated wall mount hole for secure installation.

Kontrol sareng tampilan:

• Layar LCD: Displays current time, day, program status, and settings.
• Dial Rotary: Used to select modes for setting clock, programs (1-6), countdown, and manual operation.
• Tombol '+': Ngaronjatkeun nilai salila setelan.
• '-' Tombol: Ngurangan niléy salila setelan.
• 'DAY' Button: Selects days of the week for programming.
• 'RND' Button: Activates/deactivates Random mode.
• 'OK' Button: Konfirmasi setélan.
• 'Reset' Button: Resets the timer to factory defaults (requires a pointed object).
• 'DST' Button: Saluyukeun pikeun Waktos Hemat Panonpoé.
• Outlet grounded: Two outlets for connecting devices.

Disetél

Initial Power-Up and Battery Installation:

The timer requires 2 AAA batteries (not included) for memory backup and programming without being plugged in. Install batteries into the compartment on the back of the unit.

Nyetél Waktos Ayeuna:

1. Puterkeun kenop ka SET JAM posisi.
2. The hour display will flash. Use the '+' or '-' buttons to set the current hour (AM/PM). Press OK pikeun mastikeun.
3. The minute display will flash. Use the '+' or '-' buttons to set the current minute. Press OK pikeun mastikeun.
4. Poé minggu bakal flash. Ngagunakeun éta POÉ button to select the current day. Press OK pikeun mastikeun.
5. Puterkeun kenop ka OTOMATIS to save settings and return to normal operation.

Daylight Saving Time (DST) Adjustment:

To adjust for DST, press and hold the DST button for 3 seconds. The clock will advance or rewind by one hour. Repeat to revert the change.

Pemrograman

The timer allows for up to 6 distinct ON/OFF programs. Each program can be set for specific days of the week.

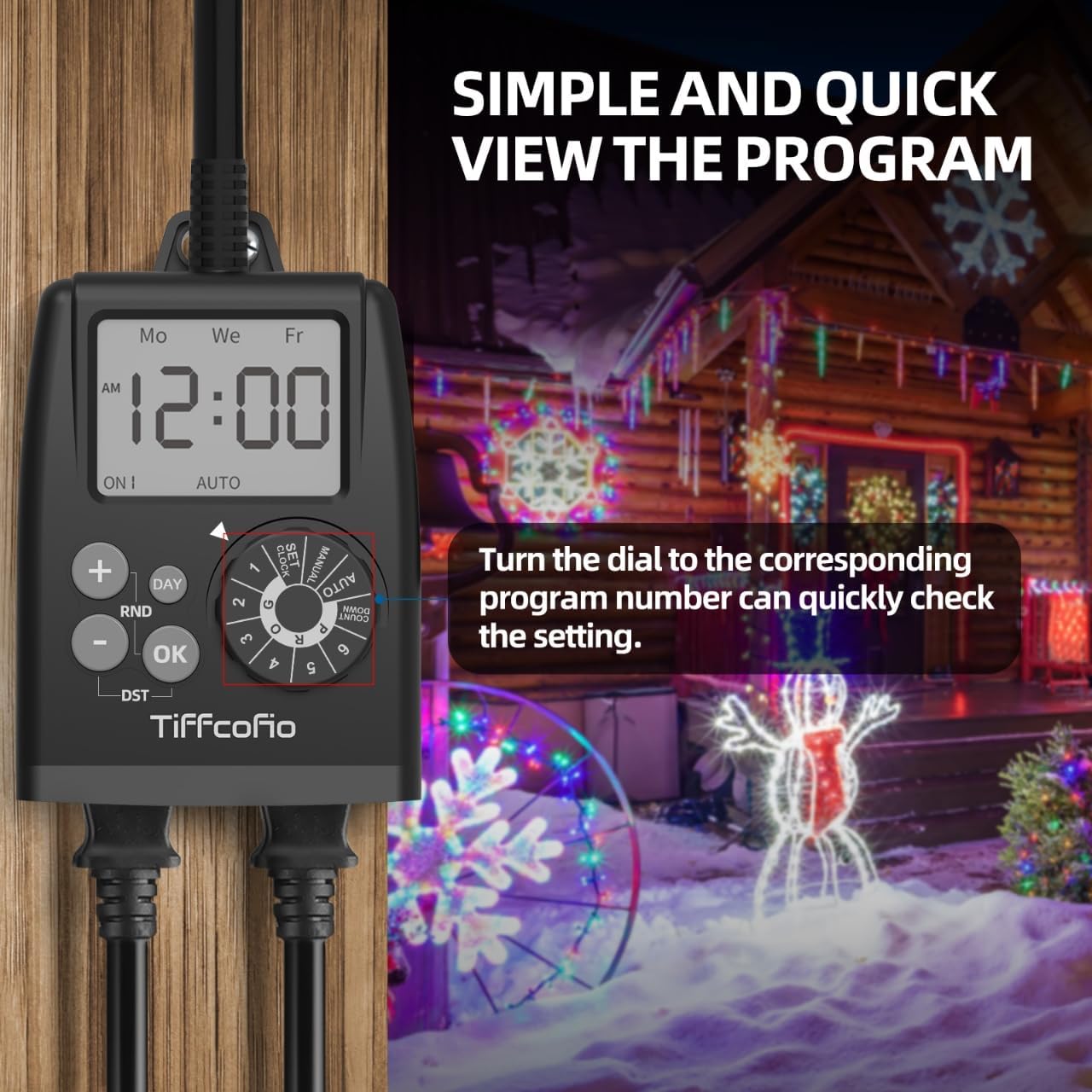

Figure 4: The timer display showing a program review, indicating the ON time and selected days.

Setting an ON/OFF Program (P1-P6):

1. Rotate the dial to the desired program number, e.g., P1. The display will show "ON 1".
2. The hour display will flash. Use '+' or '-' to set the ON hour. Press OK.
3. The minute display will flash. Use '+' or '-' to set the ON minute. Press OK.
4. The day(s) of the week will flash. Use the POÉ button to select the desired day combination (e.g., Mon-Sun, Mon-Fri, Sat-Sun, individual days). Press OK.
5. The display will now show "OFF 1". Repeat steps 2-4 to set the OFF time and day(s) for Program 1.
6. To set additional programs (P2-P6), rotate the dial to the next program number and repeat the steps.
7. Once all programs are set, rotate the dial to OTOMATIS for the timer to operate according to your schedule.

Fungsi Countdown:

The countdown function allows you to turn the connected device ON or OFF after a specified duration.

1. Puterkeun kenop ka COUNTDOWN.
2. Paké '+' or '-' to set the desired countdown duration (hours and minutes).
3. Pencét OK to start the countdown. The device will turn ON/OFF after the set time.
4. To cancel, rotate the dial away from COUNTDOWN.

Manual ON/OFF:

To manually override the programmed schedule and turn the device ON or OFF:

1. Puterkeun kenop ka MANUAL.
2. Pencét OK to toggle the power state (ON/OFF).
3. To return to programmed operation, rotate the dial back to OTOMATIS.

Operasi

Modeu otomatis:

Once programs are set, rotate the dial to OTOMATIS. The timer will now automatically turn connected devices ON and OFF according to your programmed schedule.

Quick Program Review:

To quickly review any set program without altering it, simply rotate the dial to the corresponding program number (P1-P6). The display will show the ON/OFF times and selected days for that program. Rotate the dial back to OTOMATIS pikeun neruskeun operasi otomatis.

Figure 5: The timer in an outdoor application, demonstrating its use for controlling holiday lighting.

Pangropéa

• Clean the timer's exterior with a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
• Ensure the outlets are free from debris and moisture before plugging in devices.
• Pariksa périodik kabel listrik sareng colokkeun pikeun tanda-tanda karusakan.
• Replace AAA batteries annually to ensure program memory retention during power outages atanapi nalika dicabut tina stop kontak.

Pamérésan masalah

spésifikasi

• model: TF-261B
• merek: Tiffcofio
• Bahan: palastik
• ukuran: 2 "D x 4" W x 3.5" H
• beurat: 0.5 Pon (kira-kira 8 ons)
• Program: Nepi ka 6 program ON/OFF
• Peunteun Listrik: 15A / 1875W
• Outlet: 2 outlet grounded
• Batré Cadangan: 2 x batré AAA (teu kaasup)
• Sertifikasi: ETL Didaptarkeun

Figure 6: The timer's waterproof design and safety features, including overload/short circuit protection.

Garansi sareng Rojongan

The TiFFCOFiO TF-261B Digital Outdoor Timer Outlet is ETL Listed, ensuring it meets recognized safety standards. For any questions or assistance, our professional and reliable after-sales service team is available to help you within 6 hours. Please refer to your purchase documentation for specific warranty terms and contact information.
