Indesit IMA 752 MY TIME SPT Washing Machine User Manual

1. Bubuka

Thank you for choosing an Indesit appliance. This user manual provides essential information for the correct and safe use of your new Indesit IMA 752 MY TIME SPT washing machine. Please read these instructions carefully before using the appliance and keep them for future reference. This manual covers installation, operation, maintenance, and troubleshooting.

For additional support, please visit the official Indesit websitus atanapi ngahubungan layanan palanggan.

2. Émbaran Kasalametan

Salawasna turutan tindakan pencegahan kaamanan dasar nalika nganggo alat listrik pikeun ngirangan résiko kahuruan, sengatan listrik, sareng cilaka ka jalma. Alat ieu dimaksudkeun kanggo dianggo di rumah tangga waé.

• Ulah ngantep barudak maén kalawan parabot.
• Pastikeun alatna dibumikeun leres.
• Ulah noél alat ku leungeun atawa suku baseuh.
• Cabut colokan alat sateuacan ngalakukeun beberesih atanapi pangropéa.
• Tetep bahan bungkusan jauh ti barudak.

3. Setup jeung Instalasi

3.1 Ngabongkar bungkusan

Remove all packaging materials. Ensure no parts are missing or damaged. Keep packaging materials out of reach of children.

3.2 Nyoplokkeun Transit Bolts

Before using the washing machine, it is crucial to remove the transit bolts located at the rear of the appliance. Failure to do so can cause significant damage during operation. Refer to the installation guide for detailed instructions on removing these bolts.

3.3 Positioning jeung Leveling

Place the washing machine on a flat, stable surface. Adjust the adjustable feet to ensure the appliance is perfectly level. Proper leveling reduces vibration and noise during operation.

Gambar 1: Samping view of the Indesit IMA 752 MY TIME SPT washing machine, illustrating its compact design suitable for various placements. This view helps in understanding the appliance's dimensions for installation.

3.4 Sambungan cai

Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is secure to prevent leaks. Do not use old hoses; always use the new hoses supplied with the appliance.

3.5 Sambungan solokan

Position the drain hose correctly. It can be hooked over the edge of a sink or connected to a dedicated drain pipe. Ensure the hose is not kinked or obstructed, and that the end is at a height between 65 cm and 100 cm from the floor.

3.6 Sambungan Listrik

Colokkeun kabel listrik kana stop kontak anu di-ground kalayan leres. Pastikeun voltasetage sareng frékuénsi cocog sareng spésifikasi dina plat rating alat. Entong nganggo kabel ekstensi atanapi sababaraha adaptor.

4. Parentah Operasi

4.1 Control Panel Leuwihview

Panel kontrol ngamungkinkeun anjeun milih program cuci, nyaluyukeun setelan, sareng siklus ngamimitian/reureuh.

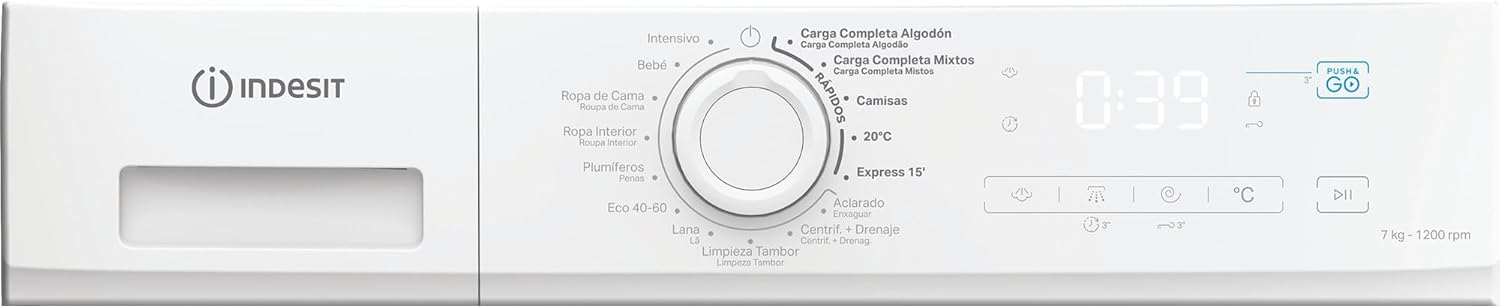

Gambar 2: Diwincik view of the control panel, showing the program selector knob, digital display, and various function buttons. This panel is central to operating the washing machine.

4.2 Ngamuat laundry

Open the washing machine door and load the laundry into the drum. Do not overload the machine; refer to the program chart for maximum load capacities. Close the door firmly.

Gambar 3: The washing machine with its door open, revealing the drum. This image demonstrates how to access the drum for loading and unloading laundry.

4.3 Nambahkeun Detergent jeung Aditif

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and any additives (e.g., fabric softener) to their designated compartments. Close the drawer gently.

Gambar 4: The detergent dispenser drawer, pulled out to show the compartments for detergent and fabric softener. Proper use of these compartments ensures effective cleaning and care for your garments.

4.4 Milih hiji Program

Turn the program selector knob to choose the desired wash program. The digital display will show the default duration and temperature for the selected program.

• Carga Completa Algodón (Full Load Cotton): Pikeun barang katun beurat soiled.
• Carga Completa Mixtos (Full Load Mixed): Pikeun beban campuran katun sareng sintétis.
• Camisas (Shirts): Program husus pikeun kaos.
• 20 ° C: Cuci suhu rendah pikeun barang-barang anu hampang.
• Ékspres 15': Quick wash for small, lightly soiled loads.
• Aclarado (Rinse): Additional rinse cycle.
• Centrif. + Drenaje (Spin + Drain): Spin and drain cycle.
• Limpieza Tambor (Drum Clean): Program for cleaning the washing machine drum.
• Lana (Wol): Nyeuseuh lemes pikeun pakean wol.
• Eco 40-60: Program hemat énergi pikeun katun sareng barang campuran anu tiasa dikumbah dina suhu 40°C atanapi 60°C.
• Plumíferos (Duvets): Program for washing duvets and padded items.
• Ropa Interior (Underwear): Gentle wash for delicate underwear.
• Ropa de Cama (Bedding): Program for bed linen.
• Bebé (Baby): Hygienic wash for baby clothes.
• Intensif (Intensif): For very dirty and resistant garments.

4.5 Push & Go Function

The Push & Go button offers a convenient way to start a daily mixed load wash cycle without needing to select a program. Simply press and hold the 'Push & Go' button for 2 seconds to start a 45-minute cycle at 30°C, suitable for cotton and synthetic garments.

Gambar 5: The 'Push & Go' logo, indicating a feature for simplified operation. This icon represents the quick start function for a standard wash cycle.

4.6 Ngamimitian sareng Ngareureuhkeun Siklus

Press the Start/Pause button to begin the selected wash cycle. To pause a running cycle, press the Start/Pause button again. Press it once more to resume.

5. Pangropéa jeung beberesih

5.1 Ngabersihan Dispenser Deterjen

Regularly clean the detergent dispenser drawer to prevent detergent residue buildup. Remove the drawer, rinse it under running water, and clean any stubborn residue with a brush. Reinsert the drawer.

5.2 Ngabersihan Filter

The filter should be cleaned periodically to ensure proper drainage. Locate the filter at the bottom front of the machine. Place a shallow container underneath to catch any residual water. Unscrew the filter, remove any lint or foreign objects, rinse it, and screw it back in securely.

5.3 Ngabersihan Exterior

Ngusap bagian luar mesin cuci ku lemes, damp lawon. Ulah nganggo pembersih atanapi pangleyur anu abrasif, sabab ieu tiasa ngaruksak permukaan.

5.4 Panto Seal Pangropéa

After each wash, wipe the rubber door seal to remove any water or lint. This helps prevent mold and unpleasant odors.

5.5 Winter Precautions

If the appliance is to be stored in an unheated area, drain all water from the hoses and pump to prevent freezing and damage. Disconnect the water inlet hose and drain the remaining water from the drum.

6. Cara ngungkulan

Sateuacan ngahubungan layanan palanggan, mangga tingal pituduh ngungkulan ieu di handap pikeun masalah umum.

7. Spésifikasi

Detailed technical specifications for the Indesit IMA 752 MY TIME SPT washing machine.

Gambar 6: Icons representing the 7kg capacity and Energy Efficiency Class B of the washing machine, highlighting key performance metrics.

8. Garansi jeung Rojongan

This Indesit appliance comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or to report a fault, please contact Indesit customer service. You can find contact information on the official Indesit websitus atawa dina dokuméntasi disadiakeun kalawan alat Anjeun.

When contacting support, please have your appliance's model number (IMA 752 MY TIME SPT) and serial number ready. This information is typically found on a label inside the door or at the back of the appliance.
