1. Produk Langkungview
Thank you for choosing the Indesit C YD 92D WW IT 9kg Heat Pump Tumble Dryer. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation.
Gambar 1: Angled view of the Indesit C YD 92D WW IT Tumble Dryer.
Fitur konci:
- EXPRESS 30' Program: Dries up to 2 shirts or 2 t-shirts in just 30 minutes, ideal for small loads.
- ECO COTTON Program: Optimizes drying for single-layer cotton fabrics, ensuring energy efficiency.
- REFRESH Program: Ventilates cotton and linen garments for 10 to 160 minutes without heat, removing odors from clothes stored for extended periods.
- Dampak Lingkungan Anu Saeutik: Utilizes ecological R290 gas for efficient and environmentally friendly drying.
- Saringan 2-in-1: Features a single, easy-to-clean filter integrated into the door for simplified maintenance.
2. Setup jeung Instalasi
2.1 Ngabongkar bungkusan
Carefully remove all packaging materials from the dryer. Inspect the appliance for any damage incurred during transit. Report any damage to your retailer immediately.
2.2 Nempatkeun
Tempatkeun pangering dina lanté anu teuas sareng rata. Pastikeun ventilasi anu cekap di sakitar alat. Entong masang pangering di tukangeun panto anu tiasa dikonci, panto geser, atanapi panto anu engselna aya di sisi sabalikna tina pangering, ku cara anu ngajantenkeun panto pangering katutupan pinuh.
Figure 2: Dryer dimensions for proper placement. Dimensions are approximately 60.7 cm (depth) x 59.8 cm (width) x 84.6 cm (height).
2.3 Sambungan Listrik
Sambungkeun dryer ka outlet listrik grounded leres. Pastikeun voltage and frequency match the specifications on the rating plate of the appliance. Do not use extension cords or multiple adapters.
2.4 Naon dina Box
- Indesit C YD 92D WW IT Tumble Dryer
- Kabel Daya
- Manual pangguna (dokumén ieu)
3. Parentah Operasi
3.1 Control Panel Leuwihview
The control panel features a program selector knob, a digital display, and various function buttons. Familiarize yourself with these controls before operating the dryer.

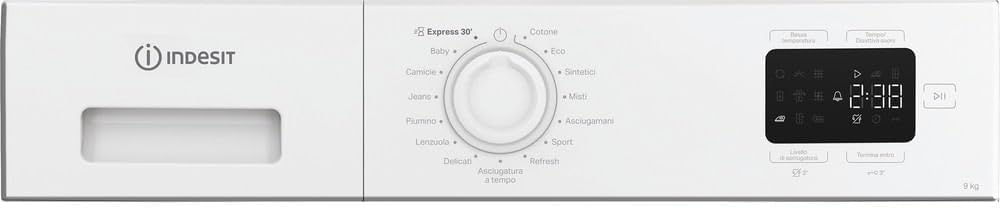

Gambar 3: Detil view of the control panel, showing the program selector, display, and buttons.
3.2 Ngamuat laundry
- Buka panto pengering.
- Load laundry into the drum, ensuring it is not overloaded. Leave enough space for clothes to tumble freely.
- Tutup panto pageuh.

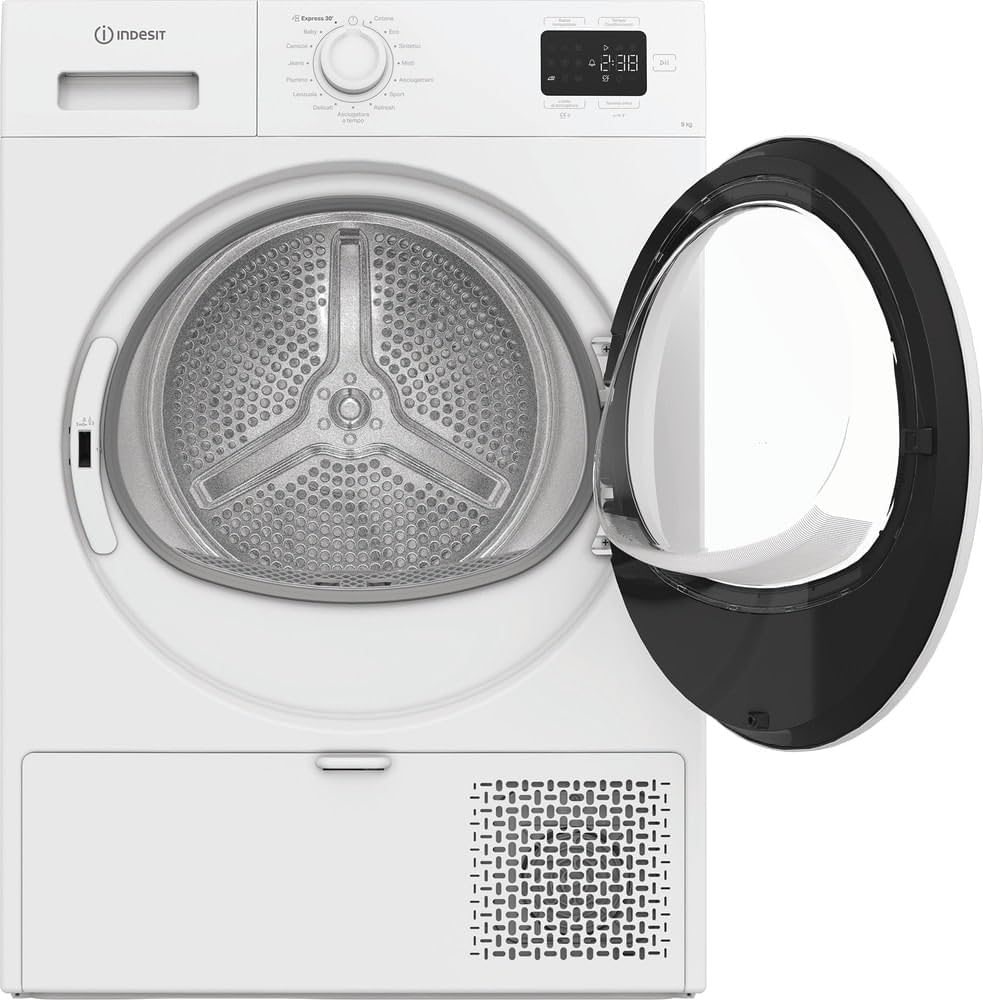

Figure 4: Dryer with the door open, ready for loading laundry.
3.3 Milih hiji Program
Turn the program selector knob to choose the desired drying program. The digital display will show the estimated drying time.
- Cotone (Katun): For standard cotton items.
- Gema: Energy-efficient drying for cotton.
- Sintetici (Synthetics): Pikeun lawon sintétik.
- Misti (Campuran): Pikeun beban campuran.
- Asciugamani (Towels): Specific program for towels.
- Olahraga: Pikeun baju olahraga.
- Refresh: Ventilates clothes to remove odors.
- Delicati (Delicates): Gentle drying for delicate items.
- Piumoni (Duvets): Specifically designed for duvets and padded fabrics.
- Jeans: Pikeun barang denim.
- Camicie (Shirts): For shirts.
- orok: Pikeun baju orok.
- Ékspres 30': Quick dry for small loads.
Figure 5: The Duvets program ensures perfect drying and maximum softness for padded items.
Figure 6: The Eco Cotton program is ideal for single-layer cotton fabrics, drying them economically.
Figure 7: The Refresh program ventilates cotton and linen garments for 10-160 minutes without heat to remove odors.
3.4 Mimitian sareng Pareum
Press the Start/Pause button to begin the drying cycle. Press it again to pause the cycle. To resume, press the Start/Pause button once more.
3.5 Tungtung Daur
At the end of the cycle, the dryer will signal with an audible alert or a message on the display. Remove the laundry promptly to prevent creasing.
4. Pangropéa
Pangropéa anu rutin mastikeun kinerja anu optimal sareng manjangkeun umur mesin pengering anjeun.
4.1 Ngabersihan Filter
The dryer features a convenient 2-in-1 filter located in the door opening. Clean this filter after every cycle to maintain drying efficiency.
- Buka panto pengering.
- Tarik kaluar saringan.
- Remove any lint or debris by hand or with a soft brush.
- Bilas saringan dina cai anu ngocor upami diperyogikeun, sareng pastikeun parantos garing sateuacan diselapkeun deui.
- Push the filter back into its position until it clicks.
4.2 Ngosongkeun Tangki Cai
The water tank collects condensed water during the drying process. Empty it after every cycle to prevent the dryer from stopping prematurely.
- Locate the water tank, typically at the top left of the control panel.
- Pull out the tank carefully.
- Pour the collected water into a sink.
- Reinsert the tank firmly until it is securely in place.
4.3 Ngabersihan Condenser
The condenser should be cleaned periodically (e.g., every few months) to ensure efficient operation. Refer to the specific instructions in your full manual for detailed steps on accessing and cleaning the condenser unit, usually located at the bottom front of the appliance.
Figure 8: Access panel for the bottom filter and condenser area.
4.4 beberesih exterior
Ngusap bagian luar tina dryer ku lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
5. Cara ngungkulan
If you encounter issues with your dryer, consult the following table for common problems and solutions. If the problem persists, contact customer support.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Dryer teu ngamimitian | Taya catu daya; Panto teu ditutup leres; Program teu dipilih. | Check power plug and fuse; Ensure door is fully closed; Select a program and press Start. |
| Clothes are not drying properly | Filter clogged; Water tank full; Overloaded drum; Incorrect program selected. | Clean the lint filter; Empty the water tank; Reduce load size; Select appropriate program. |
| Pengering ribut | objék asing dina kendang; Dryer henteu tingkat. | Check drum for loose items; Adjust dryer feet to ensure it is level. |
| Cai bocor | Water tank not inserted correctly; Drain hose (if applicable) blocked or loose. | Ensure water tank is fully pushed in; Check drain hose connection and for blockages. |
6. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | Indesit |
| Nomer modél | 869991720870 |
| Ukuran produk (D x W x H) | 60.7 x 59.8 x 84.6 cm |
| Beurat | 42 kg |
| Kapasitas | 9 kg |
| Kelas Énergi Énergi | E |
| Téhnologi drying | Pompa Panas |
| Gas réfrigerant | R290 (Ékologis) |
Figure 9: Energy efficiency label for the Indesit C YD 92D WW IT dryer.
7. Garansi jeung Rojongan
7.1 Émbaran jaminan
This product is covered by a manufacturer's warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the warranty card included with your appliance or visit the official Indesit website. In case of a defective or damaged product, please consult your retailer's return policy or the Amazon help page on returns and refunds.
7.2 Rojongan Palanggan
For technical assistance, spare parts, or further inquiries, please contact Indesit customer service. Contact details can typically be found on the official Indesit websitus atawa dina dokuméntasi disadiakeun kalawan alat Anjeun.
