Bubuka
Thank you for choosing the Amico 72-inch Ceiling Fan with Lights. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.
This ceiling fan features a powerful yet quiet reversible DC motor, integrated dimmable LED lighting, and convenient remote control operation. It is designed for large rooms, providing optimal airflow and illumination.
Émbaran Kasalametan
- Salawasna pegatkeun sambungan kakuatan di circuit breaker saméméh instalasi atawa ngalayanan.
- Pastikeun sadaya sambungan listrik sasuai sareng kodeu lokal sareng ordinances.
- Consult a qualified electrician if you are unsure about wiring or installation.
- Mount the fan to a ceiling joist or a securely supported outlet box capable of supporting the fan's weight (approximately 14.13 kg / 31.15 lbs).
- Jaga leungeun, pakean, sareng barang-barang sanésna tetep bersih tina bilah kipas nalika kipas nuju dioperasikeun.
- Do not attempt to repair or modify the fan yourself. Contact customer support for assistance.
Eusi pakét
Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, do not attempt to install the fan. Contact Amico customer support for replacement parts.
Gambar: Leuwihview of the Amico 72-inch ceiling fan, illustrating its dimensions (17.2 in, 22.2 in, 36.2 in heights with different downrods; 72 in width) and included components such as 5-inch, 10-inch, and 24-inch downrods, and reversible fan blades.
Komponén Kaasup:
- Fan Motor Perumahan
- Fan Blades (reversible, black/wood finish)
- Light Kit with Glass Shade
- Jauh Control jeung panarima
- Downrods (5-inch, 10-inch, 24-inch options)
- Pamasangan Bracket sareng Hardware
- Instruksi Manual
Setup sareng Instalasi
Installation of the Amico 72-inch Ceiling Fan requires basic electrical knowledge and adherence to safety guidelines. It is recommended to have two people for installation due to the fan's size and weight.
Pilihan Pasang:
- Ceiling Downrod Mount: Standard installation for flat ceilings.
- Sloped Ceiling Mount: Suitable for ceilings with a slope of less than 15 degrees.
Léngkah-léngkah pamasangan:
- Nyiapkeun pikeun Instalasi: Turn off power at the circuit breaker. Secure the mounting bracket to the ceiling outlet box or support structure.
- Ngumpulkeun Downrod: Select the appropriate downrod (5-inch, 10-inch, or 24-inch) and attach it to the fan motor housing.
- Sambungan Kawat: Connect the fan's electrical wires to the household wiring according to the provided wiring diagram in the separate installation manual. Ensure all connections are secure.
- Kipas Gunung: Taliti angkat unit kipas sareng gantungkeun tina bracket pamasangan.
- Pasang Blades: Securely attach the fan blades to the motor housing. Ensure all screws are tightened.
- Pasang Kit Lampu: Connect the light kit wiring and attach the light kit to the fan housing. Install the glass shade.
- Cék ahir: Ensure all connections are secure and no wires are pinched. Restore power at the circuit breaker.
Gambar: A couple assembling a ceiling fan, illustrating the installation process and suggesting that it can be a DIY project, potentially saving electrician fees.
For detailed visual guidance, refer to the dedicated installation manual included in your package. An installation video may also be available online via the manufacturer's websitus.
Parentah Operasi
Your Amico ceiling fan is operated using the included remote control. Ensure the remote has fresh batteries installed.
Fungsi Remote Control:
Gambar: A visual representation of the remote control and its key features, including super quiet operation, customizable light, 6 adjustable speeds, reversible DC motor function, and timer settings.
- Hurungkeun/Pareuman: Pencét tombol daya pikeun ngaktipkeun atanapi mareuman kipas sareng lampu.
- Kontrol Laju Kipas: Adjust the fan speed through 6 levels. Levels 1-2 provide a low, comfortable breeze; Levels 3-4 offer a medium, natural wind; and Levels 5-6 deliver a high, cooling airflow.
- Kontrol cahaya: Turn the light on/off and adjust brightness. The light is dimmable from 10% to 100% (200LM to 2000LM).
- Motor DC anu tiasa dibalikkeun: Use the remote to switch the fan's direction. In summer, the fan rotates counter-clockwise for downward airflow, creating a cooling effect. In winter, it rotates clockwise for upward airflow, circulating warm air.
- Setélan Timer: Setel timer supados kipas otomatis pareum saatos waktos anu ditangtukeun.
Setélan Laju Kipas:
Gambar: Diagram showing the 6 adjustable fan speeds: Low (Levels 1-2) for comfortable wind, Medium (Levels 3-4) for natural wind, and High (Levels 5-6) for cooling wind, with corresponding lifestyle images.
Fungsi Lampu Dimmable:
Gambar: Illustration of the customizable light feature, showing dimming from 10% (200LM) to 100% (2000LM) to meet different lighting demands.
Motor DC anu tiasa dibalikkeun:

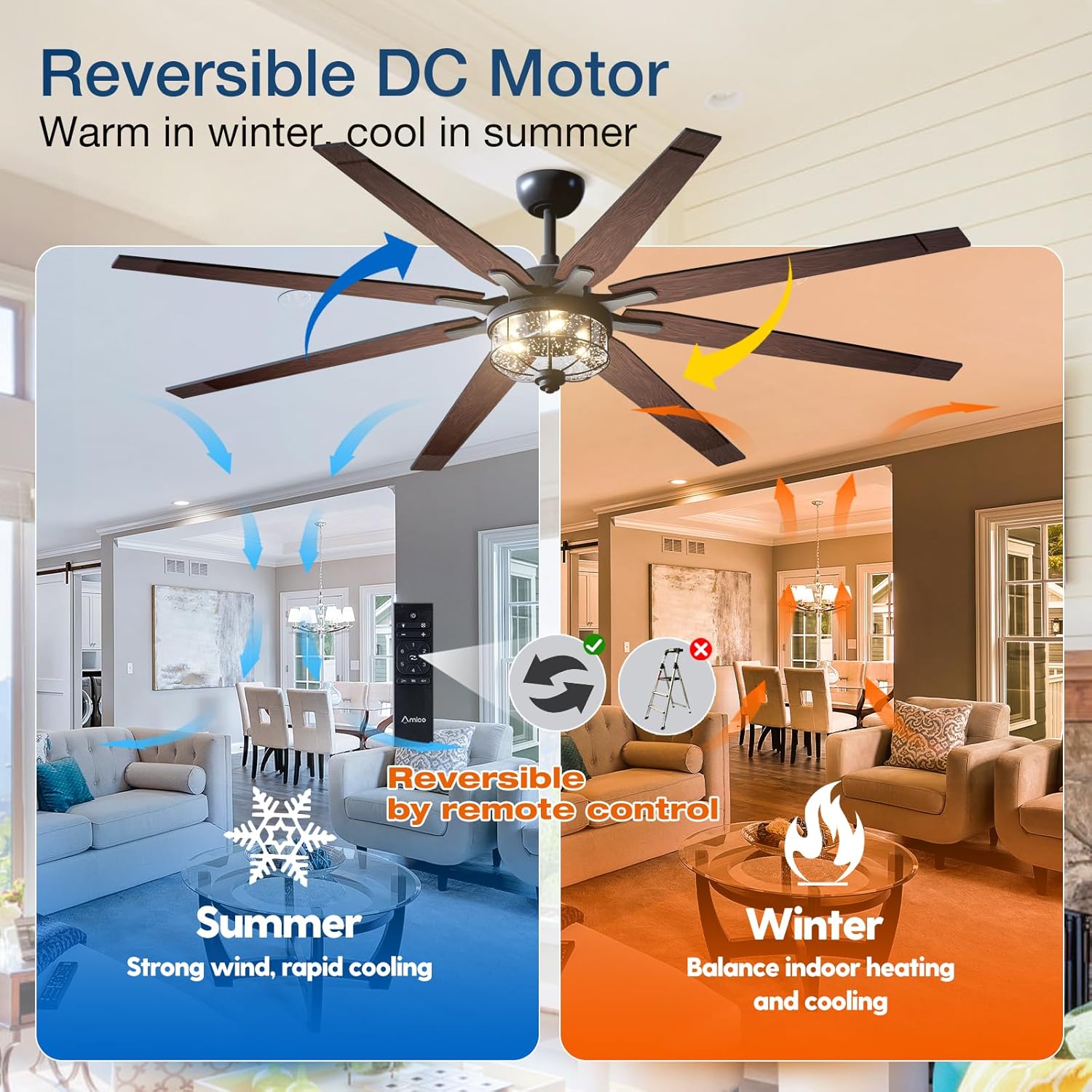

Gambar: Depiction of the reversible DC motor function, showing airflow direction for summer (strong wind, rapid cooling) and winter (balancing indoor heating and cooling).
Pangropéa
Regular maintenance ensures the longevity and optimal performance of your Amico ceiling fan.
- beberesih: périodik ngabersihan wilah kipas na perumahan motor kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur. Pastikeun kakuatan pareum sateuacan beberesih.
- Kasaimbangan Blade: If the fan wobbles, check that all blade screws are tight and that the blades are properly balanced. A balancing kit (not included) can be used if necessary.
- Lampu fixture: Clean the glass shade gently with a mild glass cleaner. Ensure the light is off and cool before cleaning.
- Motor: Motor DC dirancang pikeun operasi anu awét, sepi sareng biasana henteu meryogikeun pelumasan.
Pamérésan masalah
Sateuacan ngahubungan rojongan customer, ulangview masalah umum sareng solusi ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | Kipasna teu aya daya; Kabel sambungan kendor; Batré remot kontrol lemah atanapi teu dipasangkeun. | Check circuit breaker; Ensure all wires are securely connected; Replace remote battery or re-pair remote. |
| Lampu teu jalan | Loose wire connection in light kit; LED module failure. | Check light kit wiring; Contact customer support for LED module replacement if necessary. |
| Kipas angin ngagelebug | screws sabeulah leupas; wilah henteu saimbang; bracket dipasang leupas. | Kencengkeun sadaya sekrup bilah; Anggo kit penyeimbang bilah; Pastikeun braket pemasangan dipasang pageuh. |
| Sora kaleuleuwihi | screws leupas; Ngagosok perumahan motor; Pamasangan salah. | Check and tighten all screws; Ensure no parts are rubbing; Re-check installation steps. |
Gambar: A graphic illustrating the quiet operation of the Amico fan, comparing its noise level to common sounds like a shed (10db), library (30db), whisper (50db), and normal chat (70db), highlighting its 'super quiet' performance.
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Amico |
| Modél | 72-inch Ceiling Fan with Lights |
| Warna | Black (with reversible blades) |
| Ukuran (L x W x H) | 106.68 x 106.68 x 25.4 cm (42 x 42 x 10 inches) - minimum height with shortest downrod |
| Beurat | 14.13 kg (31.15 lbs) |
| Voltage | 120 volt |
| Bahan | Glass (light fixture), Metal, Wood (blades) |
| Tipe Motor | Reversible DC Motor |
| Sumber Cahaya | Integrated Dimmable LED (E26 socket type) |
| Métode kontrol | Kadali jauh |
| Tipe Kamar | Living Room (suitable for large rooms >20x20ft) |
| Sumber Daya | AC |
Garansi sareng Rojongan
Amico provides professional after-sales support for its products. Your Amico 72-inch Ceiling Fan comes with a garansi 2 taun.
Gambar: A graphic detailing Amico's professional after-sales support, available 24 hours, and a 2-year warranty for the product.
For warranty claims, technical assistance, or any questions regarding your product, please contact Amico customer support. Have your product model and purchase date ready when contacting support.
Inpormasi kontak: Please refer to the contact details provided in your product packaging or on the official Amico websitus.
