1. Bubuka
This manual provides essential information for the safe assembly, operation, and maintenance of your Waleaf 82-inch Modern Fireplace TV Stand with a 50-inch Electric Fireplace. Please read all instructions carefully before use and retain this manual for future reference.
2. Émbaran Kasalametan
Pitunjuk Kasalametan Penting:
- Baca sadaya parentah sateuacan masang atanapi nganggo alat ieu.
- Simpen bahan anu gampang kaduruk, sapertos parabot, bantal, sprei, kertas, baju, sareng gorden sahenteuna 3 kaki (0.9 m) ti payun pemanas.
- Salawasna cabut colokan alat ieu lamun teu dipake.
- Ulah ngoperasikeun manaskeun mana wae ku kabel atawa colokan ruksak, atawa sanggeus pamanas malfunctions, geus turun, atawa ruksak dina cara naon baé.
- Ulah ngajalankeun ari handapeun karpét. Ulah nutupan ari ku karpet lémparan, runners, atawa panutup sarupa. Atur tali jauh ti wewengkon lalulintas sarta dimana eta moal tripped leuwih.
- To prevent a possible electrical shock, do not immerse the cord, plug, or the appliance in water or other liquid.
- Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
- Barudak kedah diawaskeun pikeun mastikeun yén aranjeunna henteu maén sareng alatna.
3. Eusi Paket
The Waleaf Fireplace TV Stand is shipped in two separate packages, which may arrive on different days. Please ensure you have received both packages before beginning assembly.
- Package 1: TV Stand Components
- Package 2: 50-inch Electric Fireplace Insert
- Assembly Hardware and Tools (typically included with TV stand components)
- Remote Control for Electric Fireplace and LED Lights
Gambar 3.1: The product is delivered in two separate packages.
4. Parentah Majelis
The Waleaf Fireplace TV Stand requires assembly. Detailed, step-by-step instructions with numbered parts are included in the packaging of the TV stand components. Please follow these instructions carefully to ensure proper and safe assembly.
Tip Majelis Umum:
- Review all parts and hardware before starting.
- Pasang dina permukaan anu lemes sareng bersih pikeun nyegah goresan.
- Ulah overtighten screws.
- Two people are recommended for assembly due to the size and weight of the unit.
5. Setélan
After assembly, follow these steps for proper setup:
- panempatan: Position the TV stand on a flat, stable surface. Ensure there is adequate clearance around the unit, especially for the electric fireplace's heat output. Do not block the air vents.
- Penempatan TV: The stand is designed to accommodate TVs up to 90 inches. Ensure your television is centered and stable on the top surface.
- Sambungan Daya: Plug the electric fireplace into a standard 120V AC outlet. Avoid using extension cords if possible; if one is necessary, ensure it is heavy-duty and rated for the fireplace's wattage (1500W).
- Manajemén Kabel: Utilize the open compartments and any integrated cable management features to organize your media devices and cables.
Gambar 5.1: Optimal height and spacious open storage for media devices.
6. Parentah Operasi
6.1 Operasi Perapian Listrik
The 50-inch electric fireplace can be operated via the control panel on the unit or the included remote control.
Gambar 6.1: Electric Fireplace Control Panel and Remote Functions.
Fungsi konci:
- kakuatan: Hurungkeun hawu on / off.
- warna: Cycles through 12 flame and bed color options.
- Timer: Nyetél timer pareum otomatis.
- Dimmer: Nyaluyukeun kacaangan éfék seuneu (5 tingkat).
- Pemanas: Activates or deactivates the 1500W heating function.
- Laju Seuneu: Adjusts the speed of the flame effect.
Gambar 6.2: 12 Adjustable Flame and Bed Colors.
6.2 Operasi Lampu LED
The integrated LED strip lights offer 20 color options and are controlled via the included remote control.

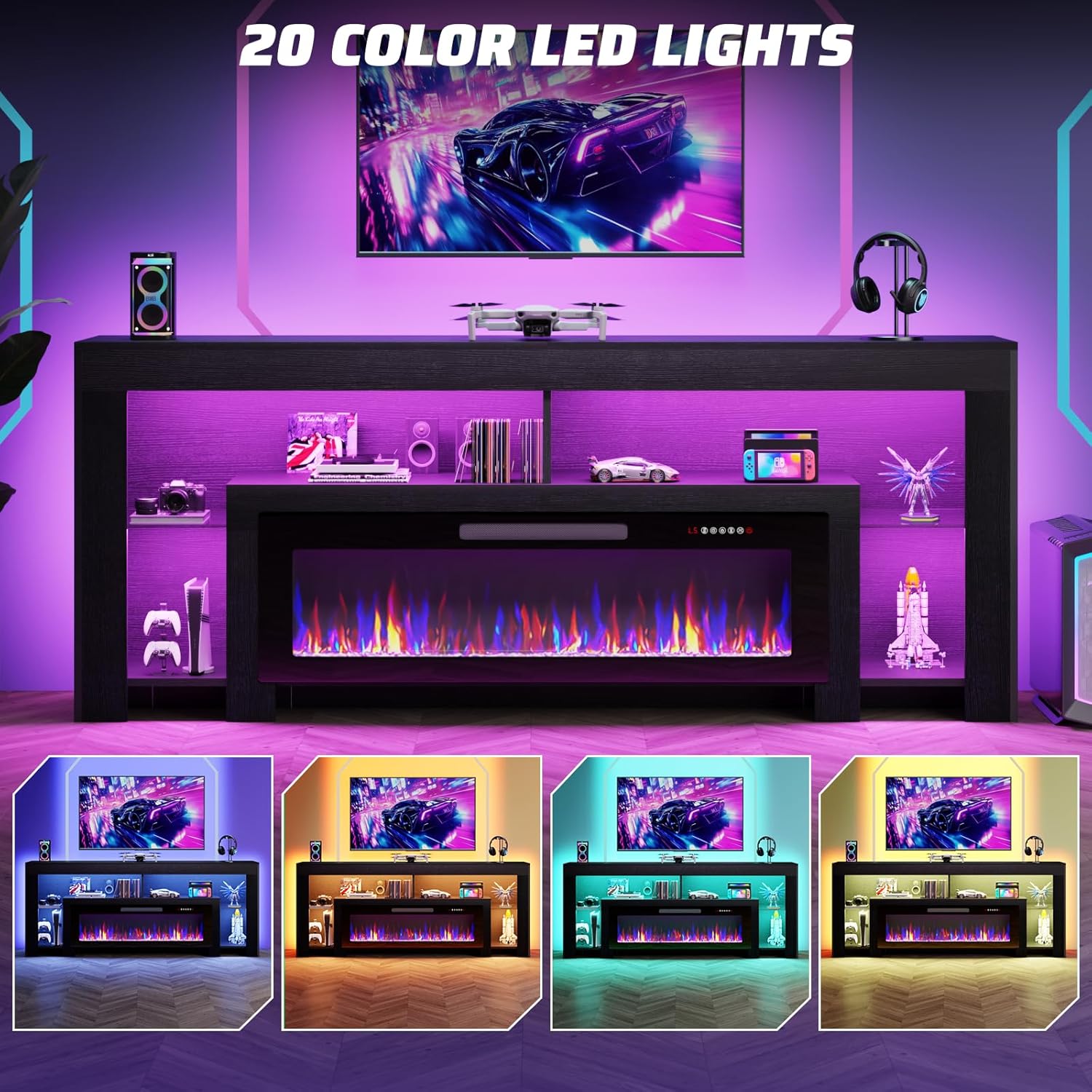

Gambar 6.3: Examples of 20 Color LED Lights.
Use the LED remote to power on/off, change colors, adjust brightness, and select various lighting modes.
7. Pangropéa
Pangropéa rutin mastikeun umur panjang sareng kinerja optimal tina meja TV sareng perapian listrik anjeun.
- Cleaning the TV Stand: Ngusap permukaan kalayan lemes, damp lawon. Hindarkeun bahan kimia anu kasar atanapi pembersih abrasive anu tiasa ngaruksak finish.
- Cleaning the Electric Fireplace: Pastikeun perapian dipareuman sareng dicabut tina colokan sateuacan dibersihkeun. Anggo alat anu lemes sarengamp cloth to clean the glass and exterior surfaces. Do not spray water directly onto the unit.
- Vents hawa: Periodically check and clean the air intake/output vents of the electric fireplace to ensure proper airflow and prevent overheating. Use a vacuum cleaner with a brush attachment to remove dust.
- Ngagantian bohlam: The flame effect uses LED technology, which typically does not require bulb replacement. If issues arise, consult the troubleshooting section or contact customer support.
8. Cara ngungkulan
If you encounter issues with your Waleaf Fireplace TV Stand, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Hawu teu hurung. | No power, power switch off, remote battery dead. | Check power cord connection, ensure wall outlet is functional, check main power switch on unit, replace remote batteries. |
| Taya kaluaran panas. | Heater function not activated, thermostat setting too low. | Activate heater function via control panel or remote, increase thermostat setting. |
| Pangaruh seuneu teu jalan. | Flame effect turned off, internal component issue. | Pastikeun éfék seuneu diaktipkeun. Upami masalah terus-terusan, hubungi dukungan palanggan. |
| Lampu LED teu jalan. | LED remote battery dead, loose connection. | Replace LED remote batteries, check connections of LED strips. |
| Sora anu teu biasa ti hawu. | Kipas kahalangan, komponén leupas. | Turn off and unplug the unit. Inspect vents for obstructions. If noise persists, contact customer support. |
For issues not covered here, please contact Waleaf customer support.
9. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | Waleaf |
| Ngaran modél | PB-82TVS-50F |
| Ukuran produk (D x W x H) | 15.75 "D x 82.7" W x 38.4" H |
| Ukuran Perapian Listrik | 50 inci rubak |
| Bahan | MDF, Wood Grain Particle Board, Metal |
| Warna | Hideung |
| Sumber Daya | Kabel Listrik |
| Kaluaran Panas | 1500W |
| Warna seuneu | 12 pilihan |
| Caang seuneu | 5 tingkat |
| Warna Lampu LED | 20 pilihan |
| Item Beurat | Kurang leuwih 61.3 pon |
Gambar 9.1: Diménsi Produk Langkungview.
10. Garansi jeung Rojongan
For warranty information or technical assistance, please contact Waleaf customer support. Details regarding warranty coverage and how to reach support are typically provided with your purchase documentation or on the manufacturer's official websitus.
Inpormasi kontak: Refer to your purchase receipt or the Waleaf official websitus pikeun detil kontak layanan palanggan panganyarna.
