RODEDIO V520 OBD2 Scanner Instruction Manual

1. Bubuka

The RODEDIO V520 OBD2 Scanner is an advanced diagnostic tool designed for comprehensive vehicle health monitoring. This device supports all OBDII/EOBD protocols for vehicles manufactured since 1996, providing accurate error code readings and extensive diagnostic capabilities. It is suitable for both professional mechanics and automotive enthusiasts.

Key features include a user-friendly interface, a 2.8-inch color display, multi-language support, and a built-in library of over 35,901 Diagnostic Trouble Codes (DTCs). The V520 scanner assists in identifying and troubleshooting engine issues, performing battery voltage tests, and preparing for emissions testing with its I/M readiness function.

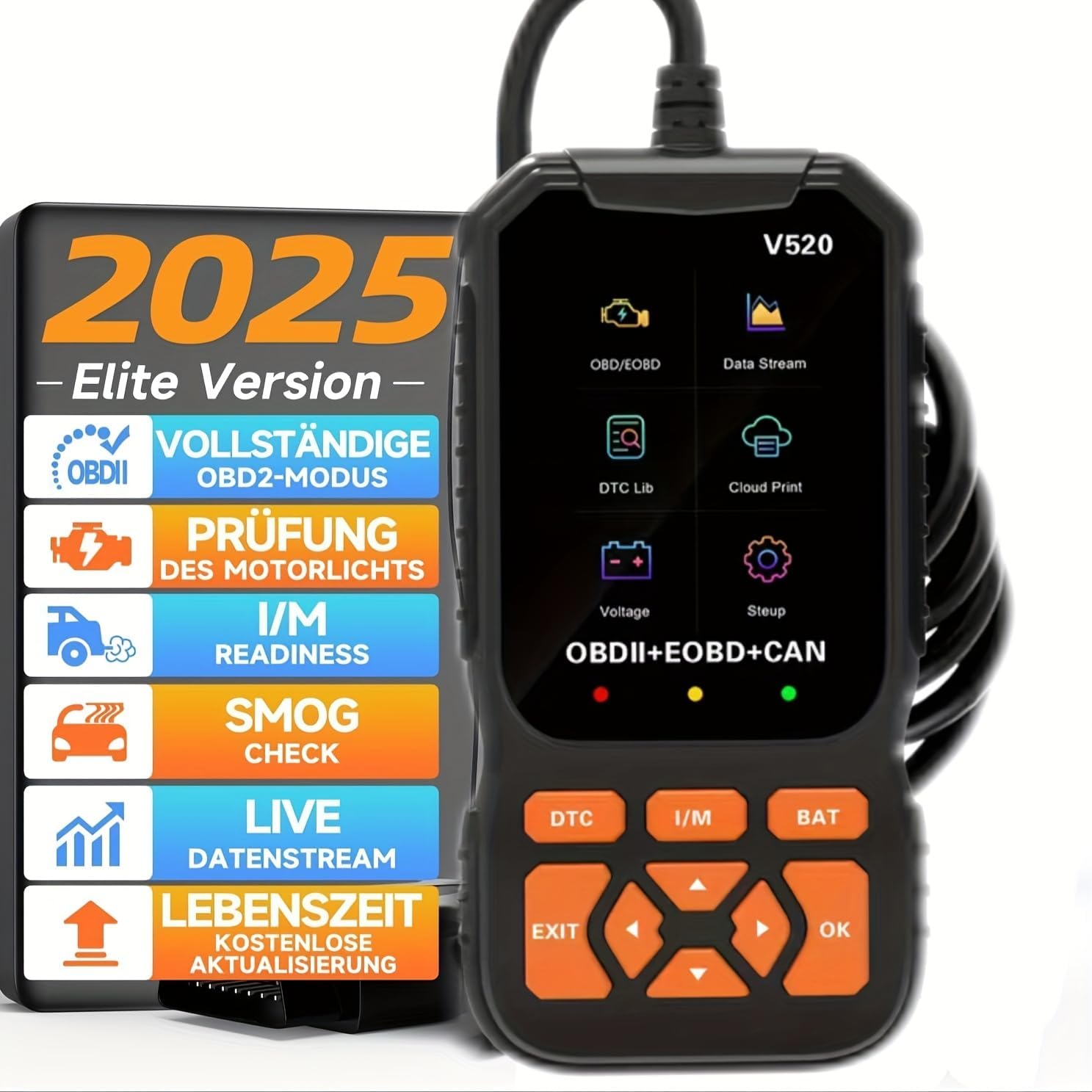

Image 1.1: The RODEDIO V520 OBD2 Scanner main unit, displaying its screen and control buttons.

2. Setup jeung pamakéan munggaran

The RODEDIO V520 OBD2 Scanner is designed for plug-and-play operation. Follow these steps to begin using your device:

1. Manggihan Port OBD-II: Port OBD-II biasana ayana di handapeun dasbor di sisi supir kendaraan. Tingali buku panduan pamilik kendaraan anjeun upami anjeun teu mendakanana.
2. Sambungkeun scanner: With the vehicle's ignition off, firmly plug the scanner's OBD-II connector into the vehicle's OBD-II port.
3. Hurungkeun Ignition: Turn the vehicle's ignition to the "ON" position (do not start the engine). The scanner will power on automatically.
4. Pilih Basa: Upon first use, you may be prompted to select your preferred language. Use the navigation buttons to select and confirm. The scanner supports 11 languages including English, German, French, Italian, and Spanish.

Gambar 2.1: Leuwihview of the V520 scanner, highlighting the power cable, 2.8-inch color screen, I/M button, DTC shortcut keys, universal OBD connector, and navigation buttons.

3. Parentah Operasi

The V520 scanner provides various diagnostic functions accessible through its intuitive menu system.

3.1. Maca sareng Ngabersihan Kodeu Masalah Diagnostik (DTC)

1. From the main menu, select "OBD/EOBD" or press the "DTC" shortcut button.
2. Pamiarsa bakal ngawangun komunikasi sareng ECU kendaraan.
3. Select "Read Codes" to display current, pending, and permanent DTCs.
4. To clear codes, select "Erase Codes" from the menu. Confirm the action when prompted. Clearing codes will turn off the Check Engine Light (CEL).

Image 3.1: The V520 scanner in use, demonstrating the process of reading and clearing engine error codes, with a visual representation of the dashboard indicator before and after clearing.

Image 3.2: A visual comparison of the engine failure light status on a vehicle's dashboard before and after using the V520 scanner to clear fault codes.

3.2. Live Data Stream

Fungsi ieu ngamungkinkeun anjeun view real-time operational parameters of the vehicle's engine. This data can help in diagnosing intermittent problems or verifying repairs.

1. From the "OBD/EOBD" menu, select "Data Stream".
2. Pilih parameter anu anjeun hoyong monitor.
3. The scanner will display the data in numerical or graphical format.

3.3. Abdi / M Kasadiaan

The I/M Readiness function checks the status of the vehicle's emission-related monitoring systems to determine if they are ready for an emissions test.

1. From the main menu, select "I/M Readiness" or press the "I/M" shortcut button.
2. The scanner will display the status of various monitors (e.g., O2 Sensor Monitor, Catalyst Monitor). "OK" or "Complete" indicates the monitor has run and passed. "INC" or "Incomplete" means the monitor has not yet run its diagnostic cycle.

Image 3.3: The V520 scanner's user-friendly interface with green, yellow, and red visual indicators for I/M readiness status: green for "Passing in good", yellow for "Code pending needs erase", and red for "Need repair in trouble".

3.4. Oxygen Sensor Test

Fungsi ieu ngamungkinkeun pikeun milarian sareng viewNgadangukeun hasil tés monitor sensor O2 pikeun tés anu nembe réngsé tina komputer dina kendaraan.

3.5. Tés Batré

The V520 can perform a battery voltage test to assess the vehicle's battery condition.

1. From the main menu, select "Battery Test" or press the "BAT" shortcut button.
2. Scanner bakal némbongkeun voltase batré ayeunatage.

3.6. Mode 6 & Mode 8

The scanner supports advanced diagnostic modes:

• Mode 6 (On-Board Monitoring Test Results): Accesses the results for on-board diagnostic monitoring tests of specific components/systems that are not continuously monitored.
• Mode 8 (Component/System Control): Allows the scan tool to control the operation of an on-board test, component, or system.

3.7. DTC Library Lookup

The V520 has a built-in library of over 35,901 DTCs, providing detailed definitions for fault codes.

1. From the main menu, select "DTC Lib" or use the "DTC" shortcut button and navigate to the DTC lookup option.
2. Enter the DTC code manually or select a code from the "Read Codes" list to view harti na.

Image 3.4: The V520 scanner displaying the "Code Meaning Introduction" for fault codes, explaining the structure of DTCs (e.g., P for Powertrain, B for Body System, C for Chassis Suspension System, U for Network Communication System).

Image 3.5: A visual representation of the RODEDIO V520's extensive capabilities, including Read Codes, Clear Codes, Mode 6, Mode 8, Vehicle Info, Freeze Frame, I/M Readiness, O2 Sensor Test, Live Data Graph, Battery Voltage Test, 35K+ DTC Library, Data Playback, Print function, Upgrade Function, and 10 Languages Support.

4. Pangropéa

To ensure the longevity and optimal performance of your RODEDIO V520 OBD2 Scanner, follow these maintenance guidelines:

• beberesih: Use a soft, dry cloth to clean the scanner's screen and body. Avoid using abrasive cleaners or solvents.
• Panyimpenan: Simpen scanner di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Perawatan kabel: Do not pull the cable forcefully when disconnecting from the vehicle. Always grasp the connector itself. Avoid bending or kinking the cable excessively.
• Apdet parangkat lunak: périodik pariksa produsén urang website for available software updates to ensure your scanner has the latest vehicle compatibility and features.

5. Cara ngungkulan

If you encounter issues while using your RODEDIO V520 OBD2 Scanner, consider the following common solutions:

• Scanner Teu Bisa Dihurungkeun:
  • Ensure the OBD-II connector is firmly plugged into the vehicle's port.
  • Pariksa ignition kendaraan urang dina posisi "ON" (mesin pareum).
  • Check the vehicle's fuse for the OBD-II port (usually labeled "Cigar Lighter" or "Accessory").
• Kasalahan Komunikasi:
  • Confirm the vehicle is OBD-II compliant (most vehicles 1996 and newer).
  • Pastikeun ignition hurung tur mesin pareum.
  • Try connecting to a different OBD-II compliant vehicle to rule out scanner malfunction.
  • Pariksa sambungan anu leupas atawa kabel ruksak.
• Incorrect Data Display:
  • Ensure the correct vehicle protocol is automatically detected.
  • Perform a software update if available.

For persistent issues, refer to the manufacturer's support resources or contact customer service.

Image 5.1: The V520 scanner's interface showing the "Erase Codes" prompt, illustrating the ease of clearing trouble codes after diagnosis.

6. Spésifikasi

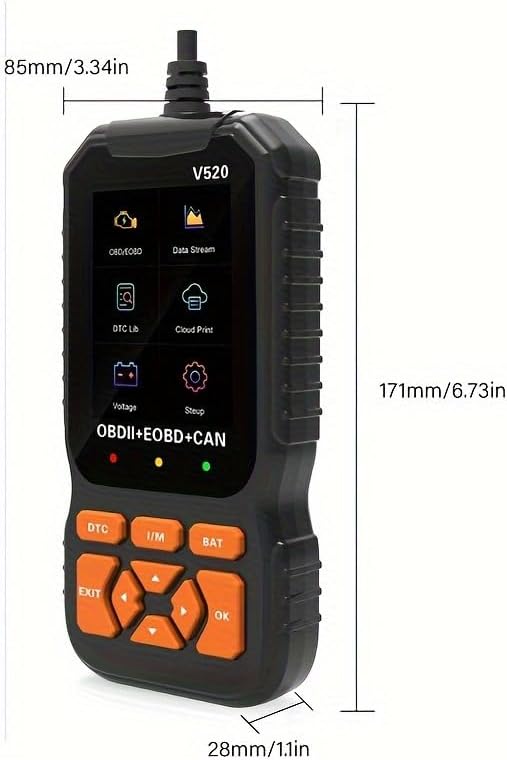

Image 6.1: Detailed dimensions of the RODEDIO V520 OBD2 Scanner, showing its compact and ergonomic design.

7. Garansi jeung Rojongan

For information regarding the product warranty, please refer to the documentation included with your purchase or contact the seller directly. RODEDIO is committed to providing reliable diagnostic solutions.

For technical support, software updates, or any inquiries, please visit the official RODEDIO website or contact their customer service department. Contact details are typically available on the product packaging or the manufacturer's websitus.
