ARAFUNA Portable Rechargeable CD Player User Manual

1. Bubuka

Thank you for choosing the ARAFUNA Portable Rechargeable CD Player. This device is designed to provide high-quality audio playback from various disc formats and external sources, offering portability and convenience for home, car, and on-the-go use. Please read this manual thoroughly before operating the device to ensure proper use and optimal performance.

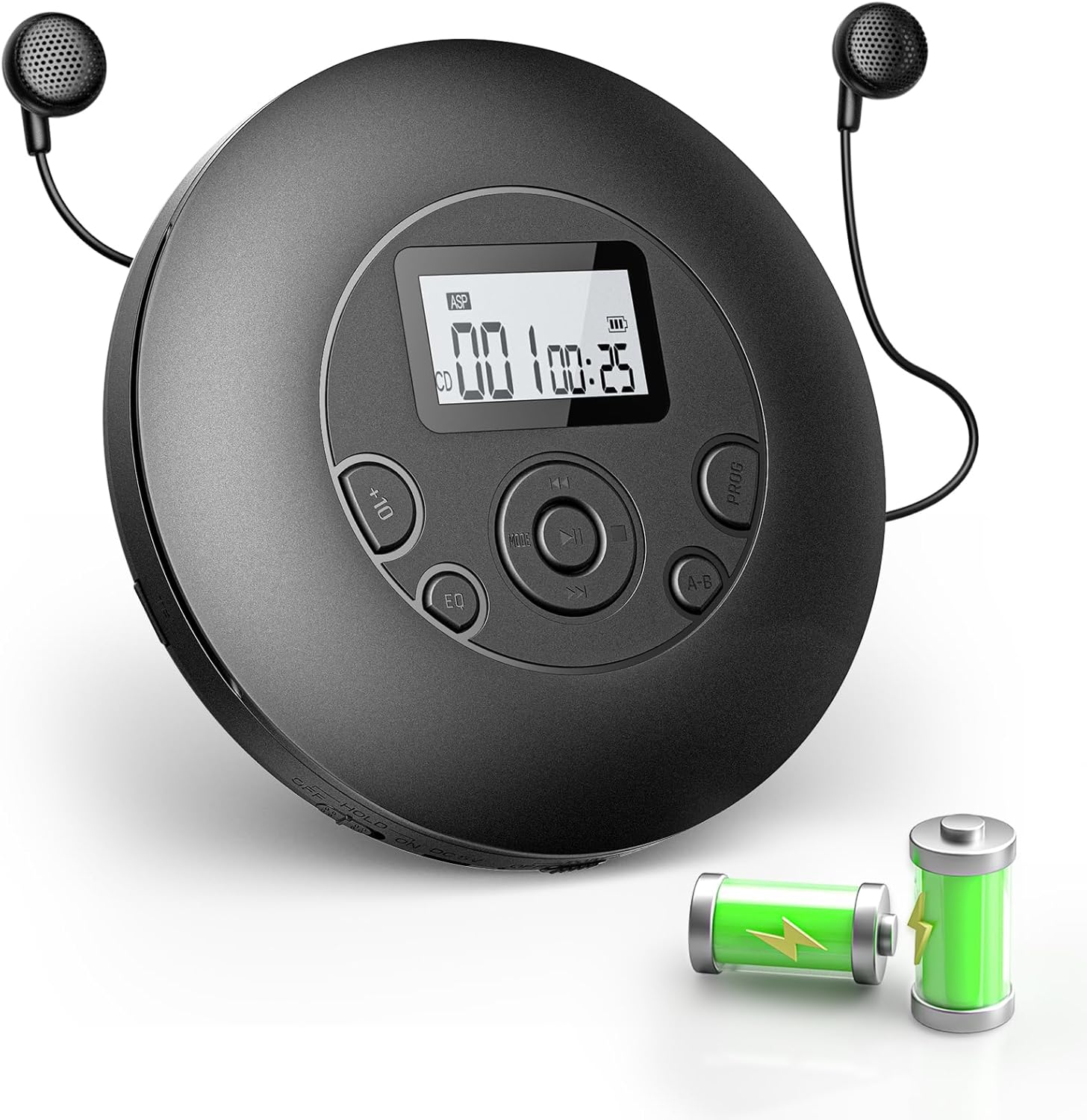

Image 1.1: ARAFUNA Portable Rechargeable CD Player with headphones and battery indicators.

2. Eusi Paket

Mangga parios pakét kanggo barang-barang ieu:

• 1 x Pamuter CD Portabel
• 1 x Earphone
• 1 x AUX Cord
• 1 x Kabel Ngecas USB
• 1 x Manual Pamaké

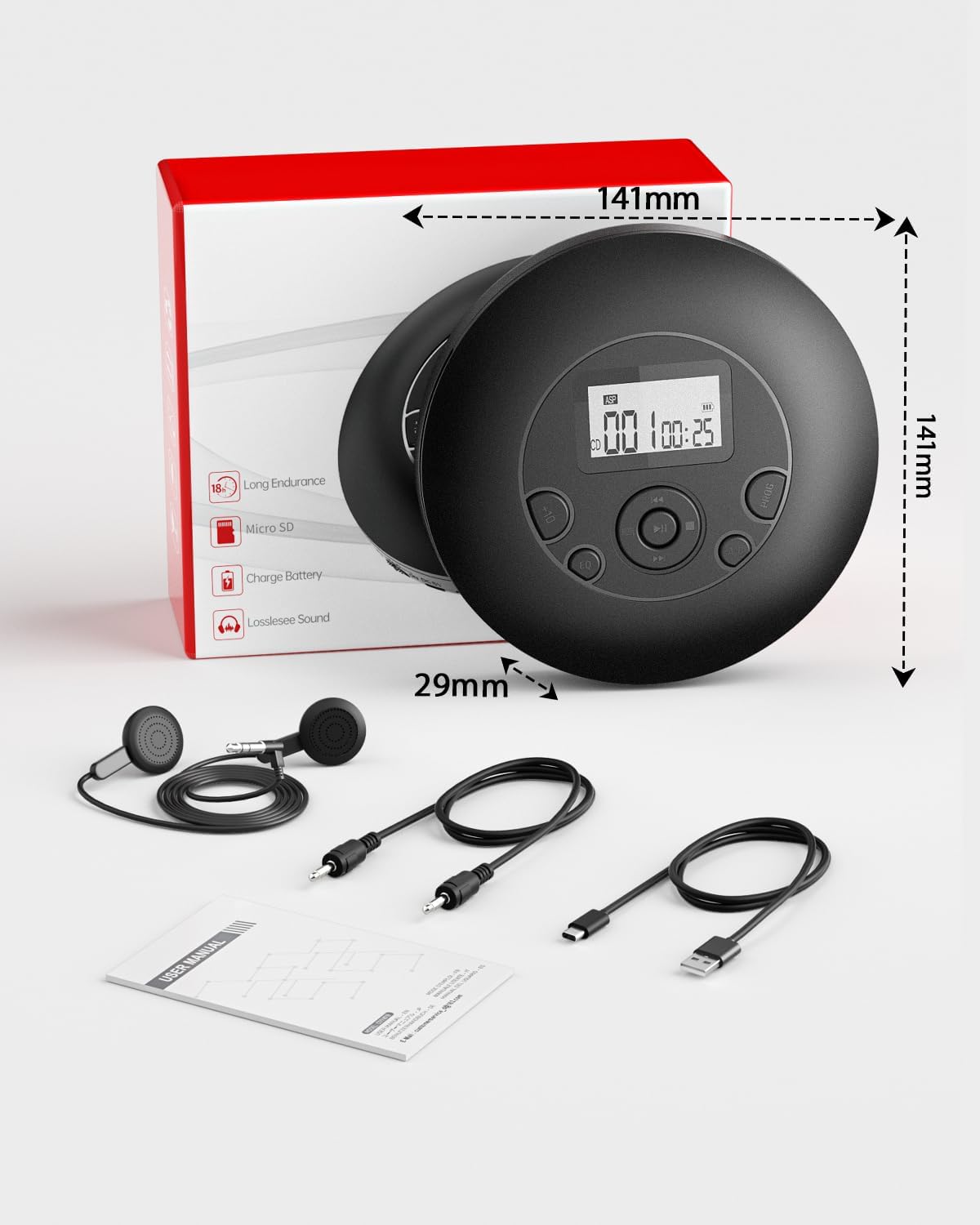

Image 2.1: All items included in the ARAFUNA Portable CD Player package.

3. Setélan

3.1 Ngecas Alat

The CD player features a built-in rechargeable battery. Before first use, fully charge the device.

1. Connect the provided USB charging cord to the player's charging port.
2. Connect the other end of the USB cable to a USB power adapter (not included), a computer's USB port, or a car's USB jack.
3. The charging indicator light will illuminate during charging and turn off when fully charged. A full charge provides up to 7 hours of playtime.

Image 3.1: The CD player connected to a power source for charging.

3.2 Nyelapkeun CD

1. Geser saklar OPEN lalaunan pikeun muka tutup kompartemen CD.
2. Teundeun CD kalawan sisi labél nyanghareup ka luhur kana spindle tengah.
3. Press the CD gently until it clicks into place.
4. Tutup tutup kompartemen CD pageuh nepi ka kait.

3.3 Nyambungkeun Headphone atanapi Spiker Éksternal

• Headphone: Insert the 3.5mm jack of the included earphones or your preferred headphones into the "PHONE" jack on the player.
• External Speakers/Car AUX: Use the provided AUX cord to connect the player's "AUX OUT" jack to the AUX input of external speakers or your car's audio system.

4. Parentah Operasi

4.1 Playback Dasar

1. Pencét éta POWER tombol pikeun ngaktipkeun pamuter.
2. Insert a compatible disc (CD, CD-R, MP3, HDCD). The player will automatically begin reading the disc.
3. Pencét éta MUTER / Reureuh tombol pikeun ngamimitian atawa ngareureuhkeun playback.
4. Ngagunakeun éta saméméhna jeung TERAS buttons to skip tracks. Hold these buttons to fast forward or rewind within a track.
5. Saluyukeun polumeu nganggo VOL+ jeung VOL- kancing.
6. Pencét éta EUREUN button to stop playback. Press it again to turn off the player.

4.2 Anti-Skip Protection (ASP)

The ARAFUNA CD Player is equipped with an Anti-Skip Protection (ASP) feature to prevent interruptions during playback, especially when the player is subjected to minor shocks or vibrations. This feature is automatically active for CD playback.

Image 4.1: CD player in a car, demonstrating anti-skip protection and AUX connectivity.

4.3 Playback Modes and EQ

• EQ (Ekualiser): Pencét éta EQ button repeatedly to cycle through different sound effects (e.g., Pop, Jazz, Classic, Rock, Normal).
• PROG (Program): Allows you to program a specific order of tracks to play. Refer to the detailed instructions in the included user manual for programming steps.
• AB ulang: Pencét éta AB button at the start point (A) and again at the end point (B) of a section you wish to repeat. The player will continuously loop this section. Press AB deui ngabolaykeun.
• Fungsi Ulang: Pencét éta MODÉ button (if available, or refer to specific button on device) to cycle through repeat options such as repeat one track, repeat all tracks, or random play.
• Fungsi Résumé: The player can resume playback from where it was last stopped.
• +10 Tracks: Pencét éta +10 button to skip forward by 10 tracks.

Image 4.2: Features like A-B Repeat and program function are useful for language learning.

4.4 Putereun Kartu Micro SD

The player supports Micro SD card playback for MP3 files.

1. Insert a Micro SD card into the designated slot on the player.
2. The player should automatically detect the card and switch to Micro SD playback mode, or you may need to press a MODÉ tombol pikeun milih éta.
3. Ngagunakeun éta saméméhna jeung TERAS tombol pikeun nganapigasi lagu.

4.5 Connecting to External Devices via AUX

The AUX output allows you to connect the CD player to external audio systems, such as car stereos or home speakers, using the provided 3.5mm AUX cable.

1. Connect one end of the AUX cable to the "AUX OUT" port on the CD player.
2. Connect the other end to the "AUX IN" port on your external audio device.
3. Ensure the external device is set to its AUX input mode.
4. Adjust volume on both the CD player and the external device as needed.

Image 4.3: The CD player connected to an external speaker for group listening.

5. Pangropéa

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun bagian luar pamuter. Pikeun lénsa, anggo kit beberesih lénsa CD khusus. Entong nganggo pembersih atanapi pangleyur anu abrasif.
• Perawatan Cakram: Handle CDs by their edges. Keep discs clean and free from scratches. Store them in their cases when not in use.
• Panyimpenan: Simpen pamuter di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung, suhu anu luhur, sareng kalembaban.
• Batré: Pikeun manjangkeun umur batre, ulah miceun batre pinuh. Ngeusi batre alat sacara rutin, sanajan henteu dianggo kanggo waktos anu lami.

6. Cara ngungkulan

7. Spésifikasi

• model: B0FMDV4F3J
• merek: Arafuna
• Format Disk anu Dirojong: CD, CD-R, MP3, HDCD
• Konektipitas: Pambantu
• Fitur husus: Anti-Skip Protection, Battery Level Indicator, Lightweight, Portable, Rechargeable
• Sumber Daya: 1 x 9V rechargeable battery (included)
• Beurat barang: 14.4 ons (kira-kira 408 gram)
• Ukuran Paket: 8.23 x 6.54 x 1.46 inci
• warna: Hideung

Image 7.1: The CD player supports various music formats.

8. Garansi jeung Rojongan

For warranty information or technical support, please refer to the contact details provided in the original product packaging or visit the official Arafuna websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.

Pabrikan: Arafuna

Titimangsa munggaran sadia: 14 Agustus 2025
