AUTOONE JWA2 8000A Jump Box/Air Pump & JS02 6000A Jump Starter User Manual

1. Bubuka

This manual provides detailed instructions for the safe and effective operation of your AUTOONE JWA2 8000A Jump Box/Air Pump and JS02 6000A Jump Starter. This versatile device combines a powerful jump starter with an integrated air compressor, a portable power bank, and an LED flashlight, designed for automotive emergencies and outdoor use. Please read this manual thoroughly before use and retain it for future reference.

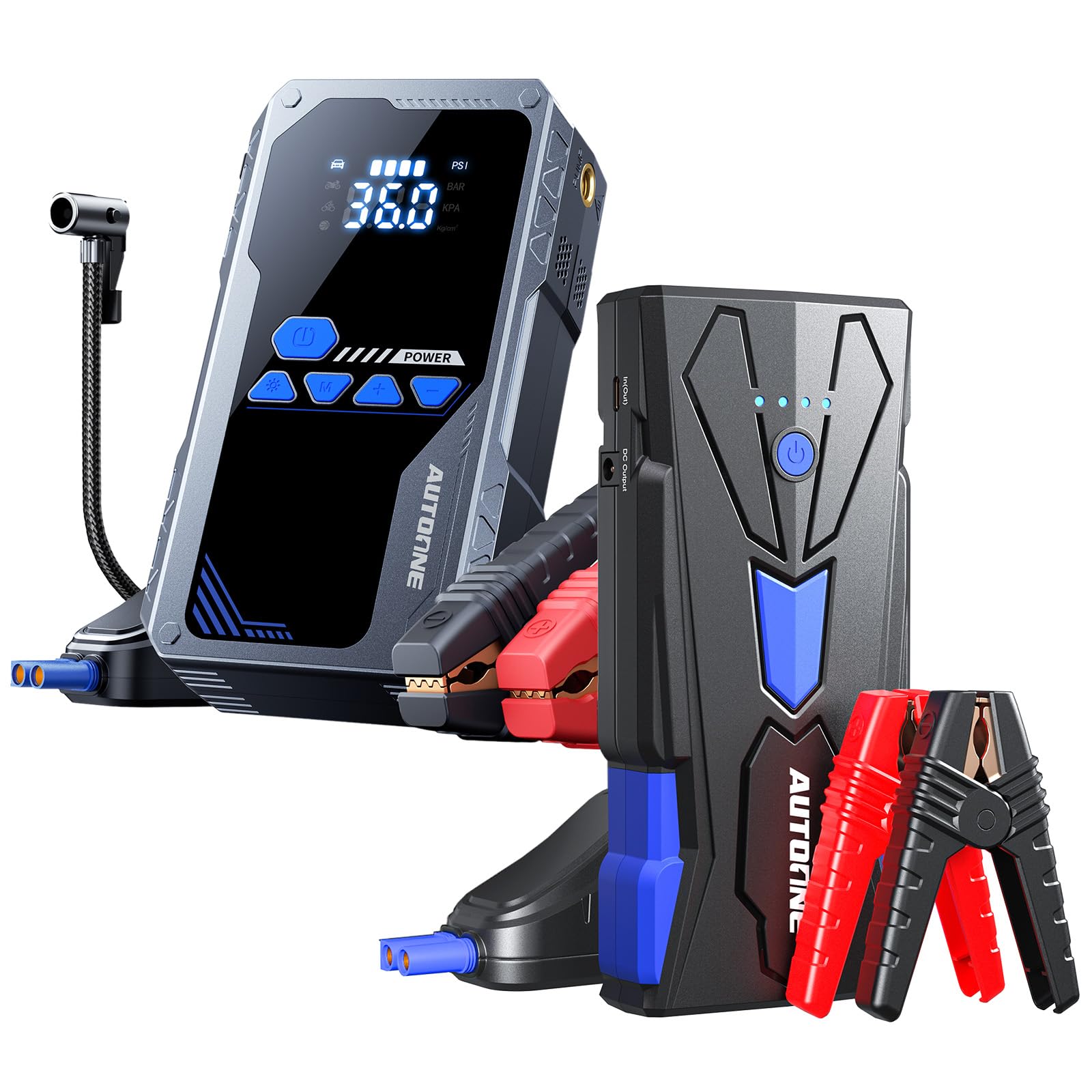

The AUTOONE JWA2/JS02 unit combines an 8000A jump starter and a 150PSI air compressor for comprehensive vehicle emergency support.

2. Émbaran Kasalametan

Always observe the following safety precautions to prevent injury or damage to the device and property:

• Baca sadaya parentah sateuacan ngoperasikeun alat.
• Wear eye protection and protective clothing when jump starting a vehicle.
• Do not short circuit the jump starter clamps.
• Jauhkeun alat ti barudak.
• Ulah ngalaan alat ka hujan atawa beueus.
• Do not disassemble the device. Refer servicing to qualified personnel.
• Paké alat di wewengkon well-ventilated.
• Ensure proper polarity when connecting to a vehicle battery: red clamp ka positif (+), hideung clamp to negative (-) or chassis ground.
• Do not overinflate tires. Always check the recommended tire pressure for your vehicle.
• Allow the air compressor to cool down after extended use to prevent overheating.

3. Produk Langkungview

The AUTOONE JWA2/JS02 is equipped with multiple features to assist in various situations:

• Robust Jump-Starting Power: Up to 8000A peak current (JWA2) or 6000A (JS02) for 12V vehicles with all gas and up to 12L diesel engines.
• Built-in Force Start Intelligence: Otomatis ngadeteksi voltase batrétage and health, activating high-current output for weak or dead batteries.
• High-Performance Air Compressor: Inflates tires at 45 liters per minute, with a maximum pressure of 150PSI.
• Power Bank 24000mAh: Provides 18W MAX input/output for charging electronic devices.
• 600 Lumén LED Senter: Features high-beam, strobe, and SOS modes for illumination and emergencies.
• Layar LCD HD: Shows real-time pressure, battery level, and inflation modes.
• Perlindungan komprehensif: Includes short-circuit, overcurrent, overvoltage, and IP67 dust/water resistance.

The integrated HD LCD display provides real-time information on battery level, tire pressure, and selected inflation modes.

4. Setélan

4.1 Ngecas Awal

Before first use, fully charge the device. Connect the provided charging cable to the device's input port and a suitable power adapter (wall charger not included). The LCD display will indicate charging status. A full charge typically takes approximately 2.5 hours with an 18W fast charger.

The 24000mAh large-capacity unit can be fast-charged via its input port. Ensure the device is fully charged before use.

5. Parentah Operasi

5.1 Luncat Mimitian Kandaraan

1. Pastikeun jump starter dicas kalayan cekap.
2. Nyambungkeun beureum clamp to the vehicle's positip (+) terminal batré.
3. Nyambungkeun hideung clamp to the vehicle's négatip (-) battery terminal or a solid metal part of the engine block (chassis ground).
4. The device's "Built-in Force Start Intelligence" will automatically detect the battery status and initiate the jump-starting process.
5. Mimitian kandaraan.
6. Sakali kendaraan dihurungkeun, pegatkeun sambungan listrikna hideung clamp kahiji, teras teh beureum clamp.
7. Remove the jump starter from the vehicle battery.

Proper connection of the jump starter clamps to the vehicle battery terminals is crucial for safe operation. This unit supports 12V vehicles with all gas and up to 12L diesel engines.

5.2 Ngagunakeun Kompresor Udara

1. Sambungkeun selang hawa kana batang klep ban.
2. Daya dina alat.
3. Use the control buttons to select the desired inflation mode (car, motorcycle, bicycle, ball) and set the target pressure (PSI, BAR, KPA, Kg/cm²).
4. Press the start button to begin inflation. The compressor will automatically stop when the target pressure is reached.
5. Pegatkeun sambungan selang hawa.

The integrated air compressor can inflate a pickup truck tire from 30PSI to 36PSI in approximately 2.5 minutes.

A single full charge can inflate up to 25 sedan tires (245/75 R17), 18 SUV tires (275/65 R18), or 6 pickup truck tires (315/70 R17).

5.3 Ngagunakeun salaku Power Bank

1. Connect your electronic device to the USB output port(s) using a compatible charging cable.
2. Alat bakal otomatis mimiti ngecas.

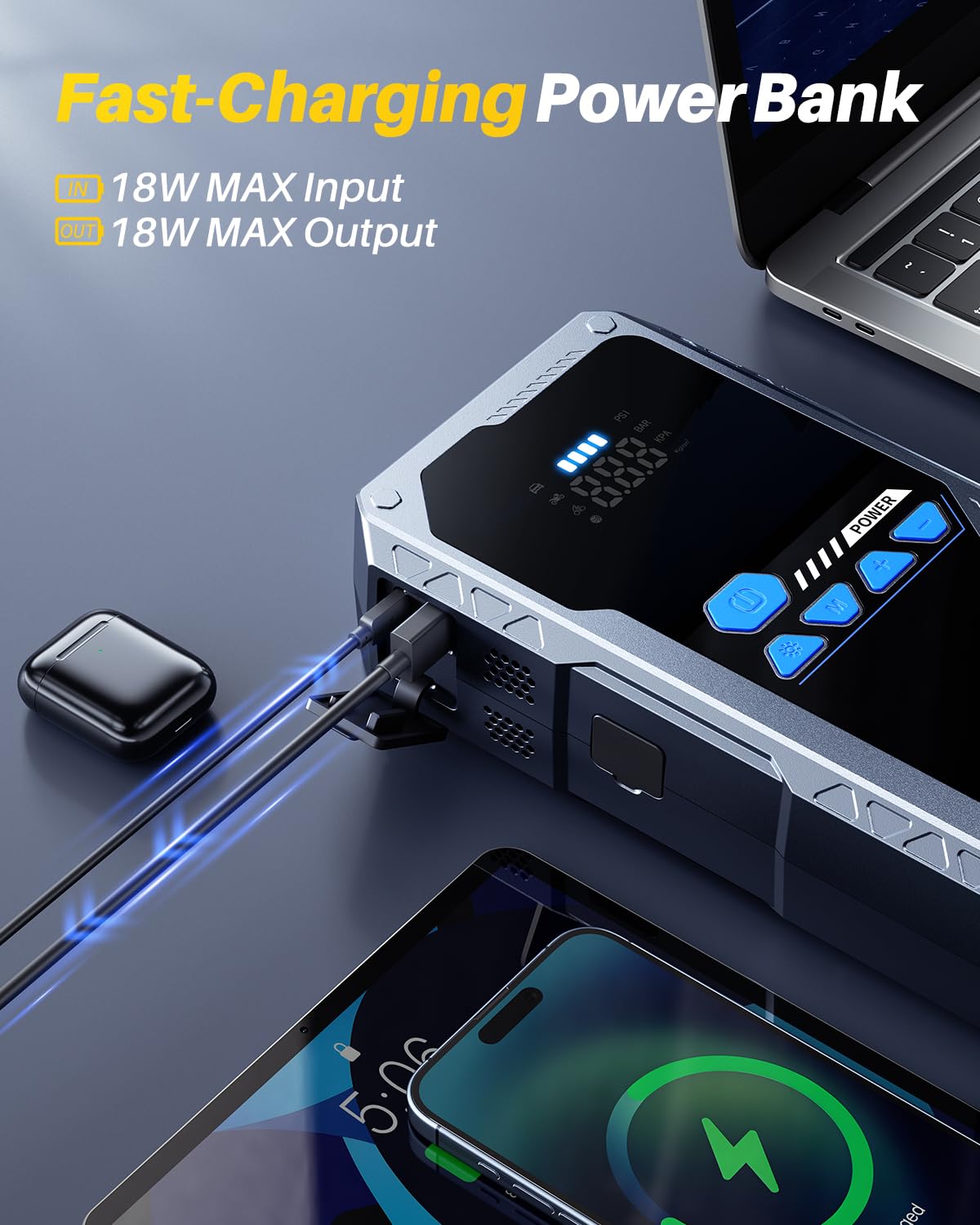

The unit features 18W MAX input and 18W MAX output, allowing it to charge various electronic devices.

5.4 Ngagunakeun Senter LED

Press the flashlight button to cycle through the available modes: High-beam, Strobe, SOS, and Off. The 600 Lumen LED flashlight provides illumination for roadside emergencies and other low-light situations.

6. Pangropéa

• Ngecas: Recharge the device every 3-6 months, even if not used, to maintain battery health and prolong its lifespan.
• Panyimpenan: Store the device in a cool, dry place, away from direct sunlight, high temperatures, and excessive moisture.
• beberesih: Wipe the device with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.

7. Cara ngungkulan

If you encounter issues with your AUTOONE jump starter, refer to the following common problems and solutions:

• Alat teu hurung: Check the battery level on the LCD display. Recharge the device if the battery is low.
• Kendaraan teu bisa dihurungkeun:
  • Ensure the jump starter clamps are correctly connected to the vehicle battery terminals (red to positive, black to negative/chassis ground).
  • Verify that the vehicle battery terminals are clean and free of corrosion.
  • If the vehicle battery is severely discharged, allow the "Force Start" function to operate for a few moments before attempting to start the vehicle.
• Air compressor not inflating:
  • Check that the air hose is securely connected to the tire valve stem.
  • Ensure the target pressure is set correctly and is higher than the current tire pressure.
• Alat teu ngecas alat éksternal: Ensure the charging cables are properly connected to both the jump starter and the external device. Verify that the jump starter has sufficient charge.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information or technical support, please contact AUTOONE customer service through the retailer where the product was purchased or visit the official AUTOONE website. Please have your model number (JWA2 or JS02) and purchase details available when contacting support.
