1. Bubuka
This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your VENTS-US GK 150 LD 6-inch through-wall exhaust fan. Please read this manual thoroughly before using the product and retain it for future reference.
The VENTS-US GK 150 LD is designed to improve indoor air quality by removing moisture, harmful fumes, vapors, odors, and common indoor air pollutants. It is suitable for various applications including bathrooms, basements, garages, workshops, and other areas requiring direct through-wall ventilation.
2. Émbaran Kasalametan
PERHATOSAN: Pikeun ngirangan résiko kahuruan, kejutan listrik, atanapi cilaka ka jalma, titénan ieu:
- Baca sadaya parentah sateuacan masang atanapi ngalayanan kipas ieu.
- Karya pamasangan sareng kabel listrik kedah dilakukeun ku jalma anu mumpuni saluyu sareng sadaya kodeu sareng standar anu berlaku, kalebet kode sareng standar konstruksi anu dipeunteun seuneu.
- Anggo unit ieu ngan ku cara anu dimaksud ku produsén. Upami Anjeun gaduh patarosan, kontak produsén.
- Sateuacan ngalayanan atanapi ngabersihkeun unit, pareuman listrik di panel jasa sareng konci jasa sambungan sambungan hartosna pikeun nyegah listrik tina hurung ngahaja. Nalika cara ngaleupaskeun jasa teu tiasa dikonci, aman kencengkeun alat peringatan anu menonjol, sapertos a tag, ka panel layanan.
- Do not use this fan with any solid-state speed control device unless specifically approved for use with this fan.
- This fan is not intended for use in kitchens or areas with high grease content.
- Ensure proper ventilation is provided for combustion air needed for fuel-burning equipment to prevent back-drafting.
3. Eusi Paket
Pastikeun yén sadaya komponén aya sareng henteu ruksak sateuacan neraskeun pamasangan.
- VENTS-US GK 150 LD Exhaust Fan Unit
- Durable White (ABS) Sleeve
- Panel hareup
- Adjustable Telescopic Duct
- External Grille (Sleek Model)
- Kabel Listrik sareng Colokkeun
4. Produk Langkungview
The VENTS-US GK 150 LD is a 6-inch through-wall exhaust fan designed for efficient air extraction. It features a sleek design and includes an adjustable telescopic duct for easy installation in various wall thicknesses.

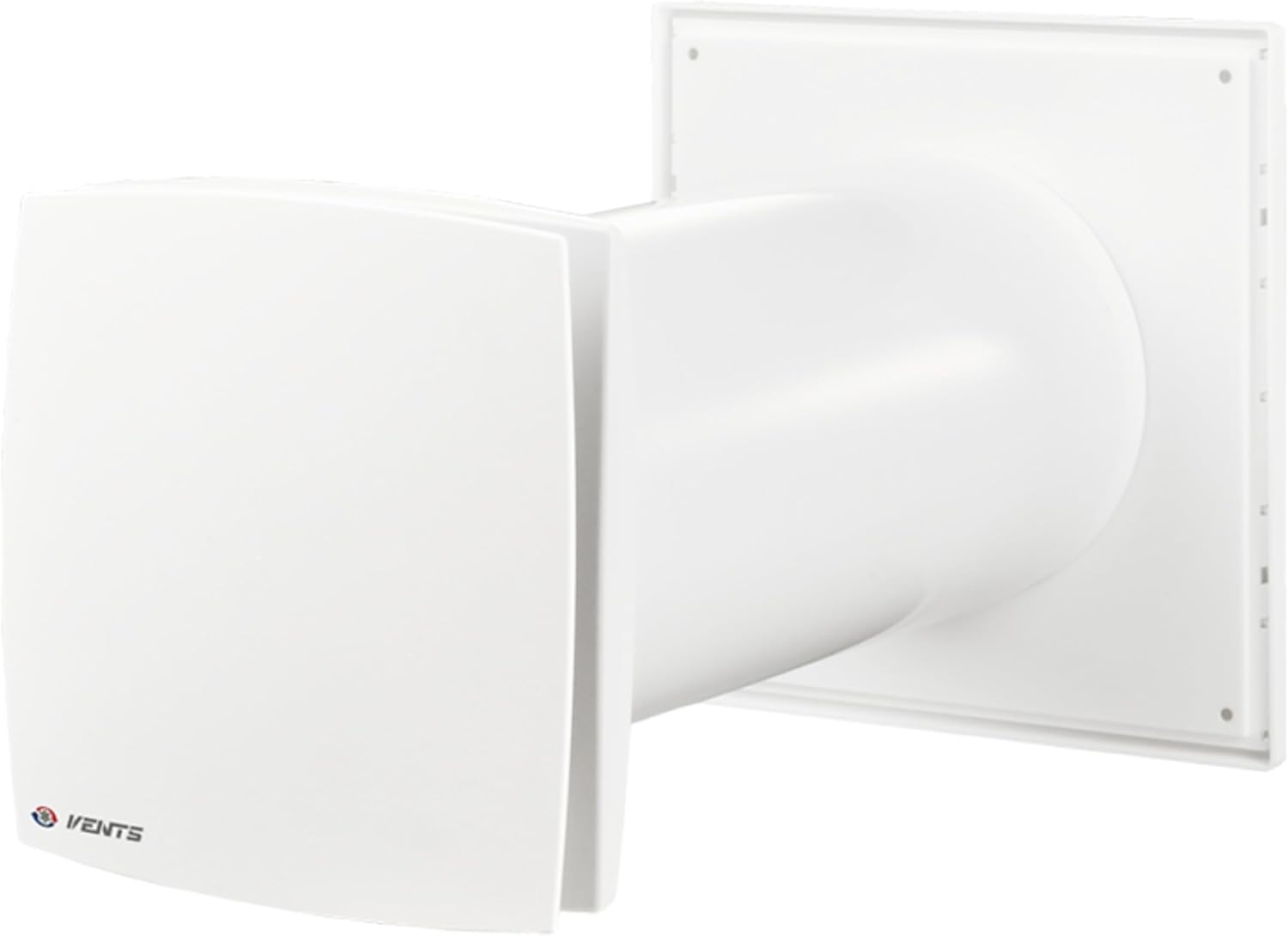

Gambar 1: Hareupeun view of the VENTS-US GK 150 LD exhaust fan, showing the sleek design.
Gambar 2: Balik deui view of the VENTS-US GK 150 LD exhaust fan, showing the internal components and duct connection.
Gambar 3: Samping view of the VENTS-US GK 150 LD exhaust fan, illustrating the depth of the unit.
Klip 1: Produk réngséview of the VENTS-US GK 150 LD ventilation fan, highlighting its features and design.
Klip 2: Demonstration of how the GK Exhaust Fan can help improve air quality in various settings.
Klip 3: A full 360-degree view of the GK 150 LD Exhaust Fan, showcasing its complete design.
5. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| merek | VENTS-AS |
| Modél | GK 150 LD |
| Diaméter saluran | 6 inci |
| Kinerja Aliran Udara | 109 CFM |
| Tingkat Noise | 3.0 Sora |
| Voltage | 120 volt |
| Wattage | 32.9 watt max |
| Tipe Pamasangan | Through The Wall |
| Dimensi produk | 8.06 "D x 6.06" W x 6.5" H |
| Item Beurat | 6 pon |
| Warna | Bodas |
| Fitur husus | Improves airflow, minimizes moisture/dampness, removes fumes/odors, low operating costs, space-saving design. |
| Sertifikasi | ETL, HVI Certified |
Gambar 4: Dimensions of the VENTS-US GK 150 LD exhaust fan, including extendable PVC ducting.
6. Setup jeung Instalasi
The VENTS-US GK 150 LD fan is designed for straightforward through-wall installation. It can be either plugged into a standard outlet or hardwired by a qualified electrician.
6.1 Pamilihan Loka
Choose a location on an exterior wall where the fan can effectively exhaust air directly outside. Ensure there are no obstructions on either side of the wall where the fan will be installed.
Gambar 5: Example applications for the VENTS-US GK series, including garages, basements, workshops, and bathrooms.
6.2 Persiapan Tembok
- Determine the desired height and position for the fan.
- Mark the center point for the duct opening.
- Using an appropriate hole saw, cut a 6-inch diameter hole through the wall at the marked location. Ensure the hole is clean and smooth.
Gambar 6: Installation diagram illustrating the fan, power cable, and junction box within the wall.
6.3 Fan Assembly and Mounting
- Insert the adjustable telescopic duct into the cut hole. Adjust its length to match the wall thickness (up to 11 inches).
- Attach the fan unit to the interior side of the wall, ensuring the duct connects securely to the fan's collar. Secure the fan to the wall using appropriate fasteners (not included).
- On the exterior side, attach the external grille to the duct, ensuring a tight seal to prevent air leakage and backdrafts.
6.4 Sambungan Listrik
The GK 150 LD comes with a corded plug for direct connection to a standard 120V/60Hz electrical outlet. Alternatively, the unit can be hardwired into your electrical system by a qualified electrician. Refer to local electrical codes for proper wiring procedures.
IMPORTANT: Always ensure power is disconnected at the circuit breaker before performing any electrical work.
7. Parentah Operasi
Once installed and connected to power, the VENTS-US GK 150 LD fan is ready for operation.
- Hurungkeun/Pareuman: If plugged in, simply plug the fan into an active outlet. If hardwired, use the designated wall switch to turn the fan on or off.
- Operasi kontinyu: This fan is designed for continuous operation to maintain consistent air quality.
- Arah Aliran Udara: The fan is designed to exhaust air from the interior to the exterior. Ensure proper installation for the intended airflow direction.
Gambar 7: Visual representation of the fan effectively removing harmful fumes, such as car exhaust from a garage.
8. Pangropéa
Regular maintenance ensures optimal performance and longevity of your VENTS-US GK 150 LD exhaust fan.
8.1 Cleaning the Fan and Grille
WARNING: Disconnect power at the service panel before cleaning or performing any maintenance.
- Periodically wipe down the exterior of the fan and the front panel with a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- For the external grille, remove any accumulated debris, dust, or insects to ensure unrestricted airflow.
- The fan motor is designed for long-term operation and is maintenance-free. Do not attempt to lubricate the motor.
9. Cara ngungkulan
If you experience issues with your VENTS-US GK 150 LD exhaust fan, refer to the following table for common problems and solutions.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Fan teu beroperasi | Teu aya catu daya; kabel kendor; pemutus sirkuit pareum. | Check power connection, ensure plug is fully inserted or wiring is secure. Reset circuit breaker. |
| Ngurangan aliran hawa | Blocked external grille; internal fan blades obstructed. | Clean the external grille. Disconnect power and inspect fan blades for obstructions. |
| Sora kaleuleuwihi | Loose mounting; foreign object in fan; motor issue. | Ensure fan is securely mounted. Disconnect power and check for foreign objects. If noise persists, contact support. |
| Backdraft occurring | Damper malfunction (if applicable); strong external wind. | Inspect the backdraft damper for proper function. Consider installing an external hood with a damper if not already present. |
10. Garansi jeung Rojongan
The VENTS-US GK 150 LD exhaust fan comes with a Garansi kawates. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official VENTS-US websitus.
For technical support, replacement parts, or further assistance, please contact VENTS-US customer service:
- Websitus: www.vents-us.com
- Surélék: [Insert Customer Service Email Here]
- Telepon: [Insert Customer Service Phone Number Here]
