SHANLING EC Zero Portable CD Player Instruction Manual

1. Produk Langkungview

The SHANLING EC Zero is a high-fidelity portable CD player designed for audiophiles. It features a professional CD mechanism, a high-resolution AK4493S DAC, and dual SGM8262-2 op-amps for clear and powerful audio output. The device supports various audio connections, including 3.5mm and 4.4mm headphone outputs, line-out, coaxial, optical, and Bluetooth 5.3. It also includes a built-in CD ripping function and a long-lasting 5500mAh battery with external power support.

Gambar 1.1: Luhur-handap view of the SHANLING EC Zero Portable CD Player, showcasing its sleek design and visible CD mechanism.

2. Setélan

2.1 Ngabongkar bungkusan

Sacara saksama miceun sadaya komponén tina bungkusan. Pastikeun aya item di handap ieu:

• SHANLING EC Zero Portable CD Player
• USB-C cable (for charging/power/USB DAC)
• 1 AAA battery (included, typically for remote control or minor functions)
• Manual Pitunjuk (dokumén ieu)

2.2 Powering On

The EC Zero can be powered by its internal 5500mAh battery or an external DC power source via the USB-C port. For optimal performance and extended listening sessions, connect the device to an external DC power source. Locate the power mode switch (BAT/EXT DC) on the rear panel and set it to the desired power source.

Image 2.1: The SHANLING EC Zero supports both internal 5500mAh battery power and external DC power input via USB-C for flexible usage.

2.3 Ngamuat CD

To load a CD, gently open the transparent top cover. Place the CD onto the central spindle, ensuring it is seated correctly and flat. The device features an active magnetic disc stabilization system to hold the CD securely during playback. Close the cover firmly until it clicks into place.

Image 2.2: A user carefully placing a CD into the SHANLING EC Zero player, demonstrating the top-loading mechanism.

3. Parentah Operasi

3.1 Playback Dasar

After loading a CD and powering on the device, use the control buttons located on the top panel for playback functions:

• Puter / Reureuh: Pencét pikeun ngamimitian atawa ngareureuhkeun playback.
• Eureun: Pencét pikeun ngeureunkeun playback.
• Lagu Sateuacanna: Press to go to the beginning of the current track or the previous track.
• Lagu salajengna: Pencét pikeun ngaluncat ka lagu salajengna.

3.2 Volume Control

Adjust the audio output level using the sliding volume potentiometer located on the side of the device. For precise control, move the slider slowly to achieve the desired volume.

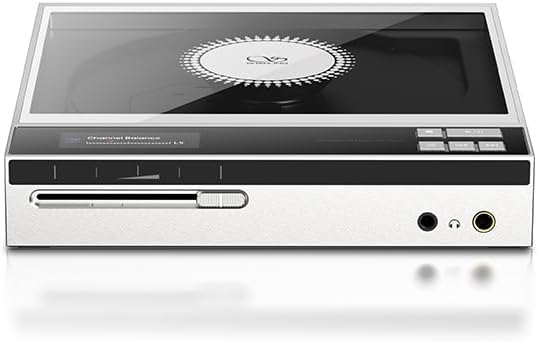

Image 3.1: The sliding volume potentiometer on the front side of the EC Zero for audio level adjustment.

3.3 Pilihan Konektipitas

The SHANLING EC Zero offers versatile audio connectivity through its various ports:

• Kaluaran headphone: Connect headphones to the 3.5mm or 4.4mm balanced headphone jacks. The device provides up to 836mW output (@32Ω balanced) to drive high-impedance headphones.
• Line-out: Use the 3.5mm or 4.4mm balanced line-out ports to connect to external amplifeers atanapi speaker aktif.
• Kaluaran Digital: The 3.5mm SPDIF coaxial/optical output allows connection to external DACs or digital audio receivers.
• USB DAC: Connect the EC Zero to a computer via USB-C to use it as an external DAC, supporting PCM up to 768kHz and DSD512.
• Bluetooth 5.3: Pair with Bluetooth headphones or speakers for wireless audio transmission. Supports aptX Adaptive, aptX, and SBC codecs.

Gambar 3.2: Detil view of the EC Zero's connectivity ports, including headphone jacks, line-out, digital output, and USB-C inputs.

3.4 CD Ripping Function

The EC Zero can rip audio tracks from CDs to WAV format. Connect a FAT32 compatible USB drive to the device's USB-C DAC Input port to store ripped tracks. Follow the on-screen prompts on the device's display to initiate the ripping process.

3.5 Side Button Lock

Utilize the side button lock switch to prevent accidental touches or changes to settings during portable use or when the device is stored.

4. Pangropéa

4.1 beberesih

Wipe the exterior of the device with a soft, dry, lint-free cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the finish. For the CD tray and lens, use specialized CD cleaning kits if necessary, following their instructions carefully to avoid damaging sensitive components.

4.2 Perawatan Batré

To prolong the lifespan of the internal 5500mAh battery, avoid fully discharging it frequently. If storing the device for an extended period, charge it to approximately 50% and store it in a cool, dry place. All rechargeable batteries are consumables and will experience gradual degradation over time.

4.3 CD Handling

Always handle CDs by their edges to prevent fingerprints, dust, and scratches on the playing surface. Ensure CDs are clean and free of debris before inserting them into the player to maintain optimal playback quality and prevent potential damage to the laser lens and mechanism.

5. Cara ngungkulan

If you encounter issues with your SHANLING EC Zero, refer to the following common problems and solutions:

• Henteu aya kakuatan:
  • Ensure the device's internal battery is charged or it is connected to a working external DC power source.
  • Check that the power mode switch (BAT/EXT DC) is set correctly.
  • Pariksa yén kabel USB-C sareng adaptor daya parantos fungsina kalayan leres.
• Disk Teu Maén/Ngalangkungan:
  • Ensure the CD is clean and free of scratches or smudges.
  • Verify the CD is loaded correctly and securely on the spindle.
  • Try a different CD to rule out disc-specific issues.
• Taya Kaluaran Sora:
  • Check headphone or speaker connections are secure.
  • Pastikeun polumeu teu disetel ka minimum atawa diredam.
  • Verify the correct output mode is selected (e.g., headphone, line-out, Bluetooth).
  • If using Bluetooth, ensure the device is properly paired and connected to your audio receiver.
• Masalah Sambungan Bluetooth:
  • Ensure the EC Zero is in Bluetooth pairing mode.
  • Check that the receiving Bluetooth device is discoverable and within range.
  • Coba cabut pasangan sareng pasangkeun deui alat.
• CD Ripping Failure:
  • Ensure the connected USB drive is formatted to FAT32.
  • Pariksa rohangan panyimpenan anu cekap dina drive USB.
  • Coba USB drive béda.

If the problem persists after attempting these solutions, please contact SHANLING customer support for further assistance.

6. Spésifikasi

The following are the technical specifications for the SHANLING EC Zero Portable CD Player:

Image 6.1: Comprehensive technical specifications of the SHANLING EC Zero, detailing audio performance and connectivity.

7. Garansi jeung Rojongan

For detailed warranty information regarding your SHANLING EC Zero Portable CD Player, please refer to the warranty card included in your product packaging. Alternatively, you may visit the official SHANLING websitus pikeun istilah jeung kaayaan jaminan paling up-to-date.

For technical support, troubleshooting assistance beyond the scope of this manual, or any service-related inquiries, please contact SHANLING customer service directly. Their support team can provide specialized guidance and solutions.

You can typically find contact information on the official SHANLING websitus: www.shanling.com
