MIRAIDON GT22A-4-V-13 Tire Pressure Monitoring System User Manual

Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of your MIRAIDON GT22A-4-V-13 Tire Pressure Monitoring System (TPMS). This system is designed to monitor tire pressure and temperature for RVs, trailers, and heavy trucks, enhancing driving safety by providing real-time tire data and alerts.

Produk Leuwihview

The MIRAIDON GT22A-4-V-13 TPMS is a comprehensive system featuring solar power capabilities, theft-resistant sensors, and an 80-foot sensing distance. It is designed to provide accurate and timely information about your vehicle's tires.

Fitur konci:

• Solar sareng USB Ngecas: The monitor can be charged via its built-in solar panel or a USB connection, offering up to 200 hours of ongoing use after a 2-hour full charge.
• Pangiriman Data Real-time: An automotive-grade chip ensures accurate data transmission and provides beep alarms with low latency.
• Lampu tukang otomatis: The display features an automatic backlight for easy readability in various lighting conditions.
• Adaptasi: Supports monitoring for up to 3 trailers, suitable for RVs, heavy trucks, and tractors.
• Panguat Sinyal: Includes a signal booster for extended range, especially useful for long trailers.
• 5 Alert Modes: Provides warnings for sensor low battery, low pressure, high temperature, high pressure, and fast leakage.

Naon anu aya dina Kotak:

• 1 x Monitor
• 1x USB carjer
• 1x konci
• 1x Booster (Signal Repeater)
• Type Monitor Stands (Mounting Bracket)
• Tire Sensors (Quantity varies based on package, e.g., 4 or 10)

Parentah Setup

1. Monitor Placement and Charging

Mount the monitor on your windshield using the provided suction cup and stand. Ensure it is placed in a location that allows for clear visibility of the display without obstructing your view of the road. For optimal performance, position the monitor where its solar panel can receive direct sunlight. Connect the USB charger for initial charging or if solar charging is insufficient.

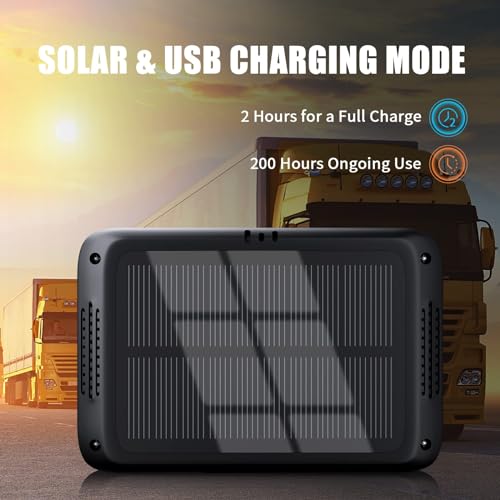

Gambar: The MIRAIDON TPMS monitor showcasing its solar panel for charging and a USB port for alternative power input. A full charge takes approximately 2 hours and provides up to 200 hours of operation.

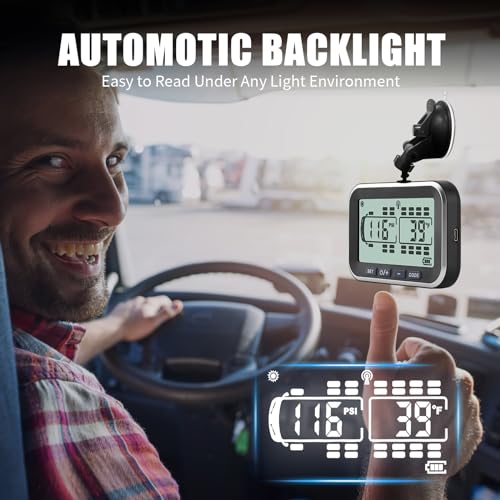

Gambar: The MIRAIDON TPMS monitor displayed inside a truck cabin, illustrating its automatic backlight feature for clear readability in various light conditions.

2. Pamasangan sénsor

1. Identify each sensor by its marked position (e.g., FL for Front Left, RR for Rear Right).
2. Unscrew the existing valve cap from the tire valve stem.
3. Screw the corresponding TPMS sensor onto the valve stem.
4. Use the provided wrench to tighten the sensor's anti-theft nut against the valve stem to secure it.
5. Ngulang pikeun sakabéh ban.

Catetan: Ensure sensors are securely fastened to prevent air leakage and theft. If a sensor is not detected during setup, ensure it is active. Some sensors may require a firm tap to activate if dormant.

3. Signal Booster Installation (Optional, for long trailers)

For vehicles with long trailers or in environments with potential signal interference, install the signal booster. The booster extends the transmission distance up to 80 feet, ensuring reliable communication between sensors and the monitor.

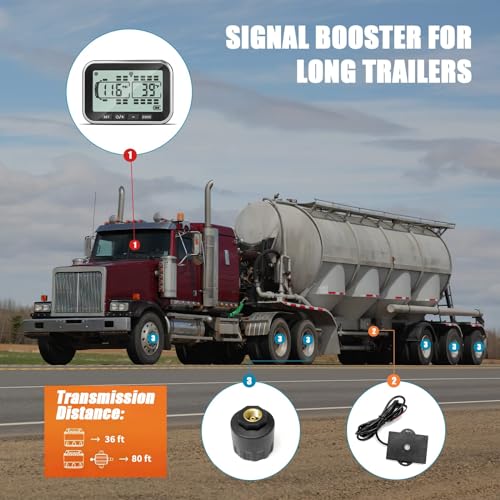

Gambar: A diagram illustrating the placement of the signal booster on a long trailer to extend the TPMS transmission distance from 36 ft to 80 ft, ensuring consistent data reception by the monitor.

4. Pairing Sensors with Monitor

Refer to the specific pairing instructions provided in the separate quick start guide for your model. Generally, this involves entering a pairing mode on the monitor and then activating each sensor in sequence. This process ensures the monitor accurately displays data for each tire position.

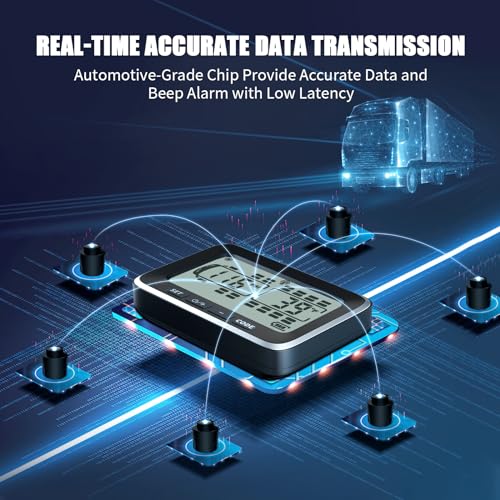

Gambar: A visual representation of the MIRAIDON TPMS's real-time accurate data transmission, showing how an automotive-grade chip provides precise data and beep alarms with low latency from sensors to the monitor.

Parentah Operasi

1. Ngartos Tampilan

The monitor displays real-time tire pressure (in PSI or Bar) and temperature (in °F or °C) for each connected tire. It also shows the battery status of the monitor and individual sensors, along with signal strength indicators.

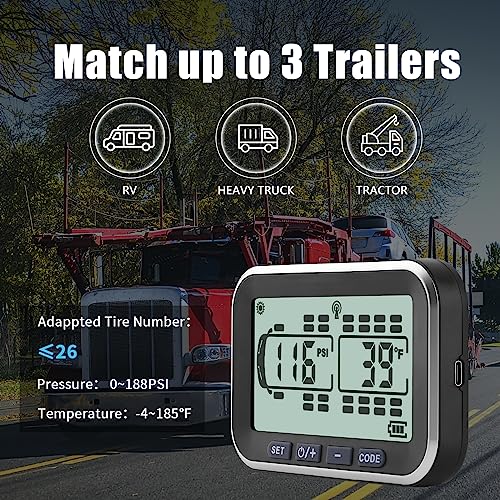

Gambar: The MIRAIDON TPMS monitor displaying tire pressure and temperature, highlighting its compatibility with RVs, heavy trucks, and tractors, and its ability to monitor up to 26 tires across 3 trailers.

2. Alert Modes

The system is equipped with five distinct alert modes to notify you of potential tire issues:

• Sénsor Batré Lemah: Nunjukkeun batré sénsor kedah digentos.
• Tekanan rendah: Alerts when tire pressure drops below a preset threshold.
• Suhu luhur: Warns if tire temperature exceeds a safe limit.
• Tekanan tinggi: Notifies when tire pressure rises above a preset threshold.
• Fast Leakage: Detects rapid air loss from a tire.

Upon an alert, the monitor will provide both visual and audible warnings. Address any alerts promptly to ensure safe operation of your vehicle.

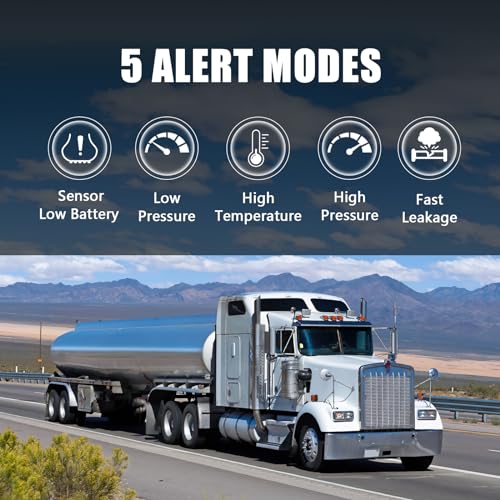

Gambar: A graphic depicting the five alert modes of the MIRAIDON TPMS: Sensor Low Battery, Low Pressure, High Temperature, High Pressure, and Fast Leakage, shown above a heavy truck on a road.

3. Modeu Hemat Daya

To conserve battery power, the monitor automatically enters a power-saving mode when no motion or vibration is detected for 15 minutes. The screen will wake up and resume operation automatically when the vehicle shakes or motion is detected.

Pangropéa

1. Panggantian Batré Sensor

The batteries in the sensors are designed to last approximately 2 years. When a sensor low battery alert is triggered, replace the battery promptly. The sensors are designed for easy battery replacement. Refer to the specific instructions for opening the sensor and replacing the battery type (typically CR1632 or similar, check sensor markings).

2. Monitor Charging

Ensure the monitor receives adequate sunlight for solar charging. If the monitor's battery level is consistently low, use the provided USB charger to fully charge the unit. Regular charging helps maintain optimal performance.

3. beberesih

Clean the monitor screen and solar panel regularly with a soft, dry cloth to ensure clear visibility and efficient solar charging. Keep sensors free from excessive dirt or debris.

Pamérésan masalah

• Sensors Not Connecting/Displaying Data:
  • Ensure sensors are correctly installed and tightened.
  • Verify sensor batteries are not depleted. Replace if necessary.
  • If a sensor is dormant, a firm tap may activate it.
  • Check if the signal booster is correctly installed and powered, especially for long trailers.
  • Re-attempt the pairing process as per the quick start guide.
• Bacaan teu akurat:
  • Ensure sensors are correctly assigned to their respective tire positions during pairing.
  • Verify that the tire pressure gauge used for comparison is calibrated and accurate.
• Monitor Teu Diaktipkeun:
  • Charge the monitor fully using the USB charger.
  • Ensure the solar panel is clean and exposed to sunlight.
• Frequent Alarms:
  • Check actual tire pressure and temperature with a reliable gauge.
  • Verify that the alarm thresholds are set correctly on the monitor (refer to quick start guide for setting adjustments).
  • Address any underlying tire issues (e.g., slow leaks).

spésifikasi

Garansi sareng Rojongan

MIRAIDON products are designed for reliability and performance. For specific warranty details, technical assistance, or customer support, please refer to the warranty card included with your product or visit the official MIRAIDON website. Please have your model number (GT22A-4-V-13) and purchase information ready when contacting support.
