Buku Panduan Pangguna Skuter Listrik NAVEE V25

1. Pedoman Kasalametan

Before operating the NAVEE V25 Electric Scooter, please read and understand all safety instructions. Always wear appropriate protective gear, including a helmet, knee pads, and elbow pads. Ensure you are familiar with local regulations regarding electric scooter use.

• The NAVEE V25 is UL 2272 certified, ensuring compliance with electrical safety standards.
• Regularly check tire pressure and inflate as recommended.
• Ensure all locking mechanisms are securely fastened before riding.
• Avoid riding in heavy rain or through deep puddles, despite the IPX5 waterproof rating.
• Maintain a safe speed and be aware of your surroundings.

2. Setup jeung Majelis

The NAVEE V25 Electric Scooter comes partially assembled. Follow these steps for initial setup:

1. Taliti piceun Scooter tina bungkusan na.
2. Unfold the handlebar stem until it locks into place. Ensure the folding mechanism is secure.
3. Attach the handlebars to the stem using the provided screws and tools. Tighten all screws firmly.
4. Connect any visible cables according to the user manual diagrams.
5. Perform an initial charge of the battery before first use.

Figure 2.1: Fully assembled NAVEE V25 Electric Scooter.

Figure 2.2: The scooter's folding mechanism for compact storage and transport.

Panungtun Sambungan Aplikasi

For detailed instructions on connecting your scooter to the NAVEE app, please watch the official guide video:

3. Operating Your NAVEE V25 Electric Scooter

The NAVEE V25 offers a smooth and controlled riding experience with multiple features designed for convenience and safety.

Modeu Laju

The scooter supports three distinct speed modes, selectable via the LED display or the NAVEE app:

• Modeu Pedestrian: For low-speed areas or walking alongside the scooter.
• Modeu standar: Balanced speed for general commuting.
• Modeu Olahraga: Maximum speed (up to 19 MPH) for experienced riders in appropriate environments.

LED Display and App Control

The integrated LED display provides real-time information such as speed level, battery life, and vehicle status. The NAVEE app offers additional control and monitoring features, including:

• Real-time speed and mileage tracking.
• Over-temperature and vehicle failure reminders.
• Tire maintenance reminders.
• Headlight and taillight control.
• Energy recovery system adjustment.

Figure 3.1: The clear LED display on the handlebar shows essential riding information.

Figure 3.2: Control and monitor your scooter's functions via the intuitive NAVEE mobile app.

Sistem ngerem

The V25 is equipped with a dual braking system for enhanced safety:

• Front E-ABS: Electronic Anti-lock Braking System for stable stopping.
• Rem Drum Belakang: Provides reliable mechanical braking power.

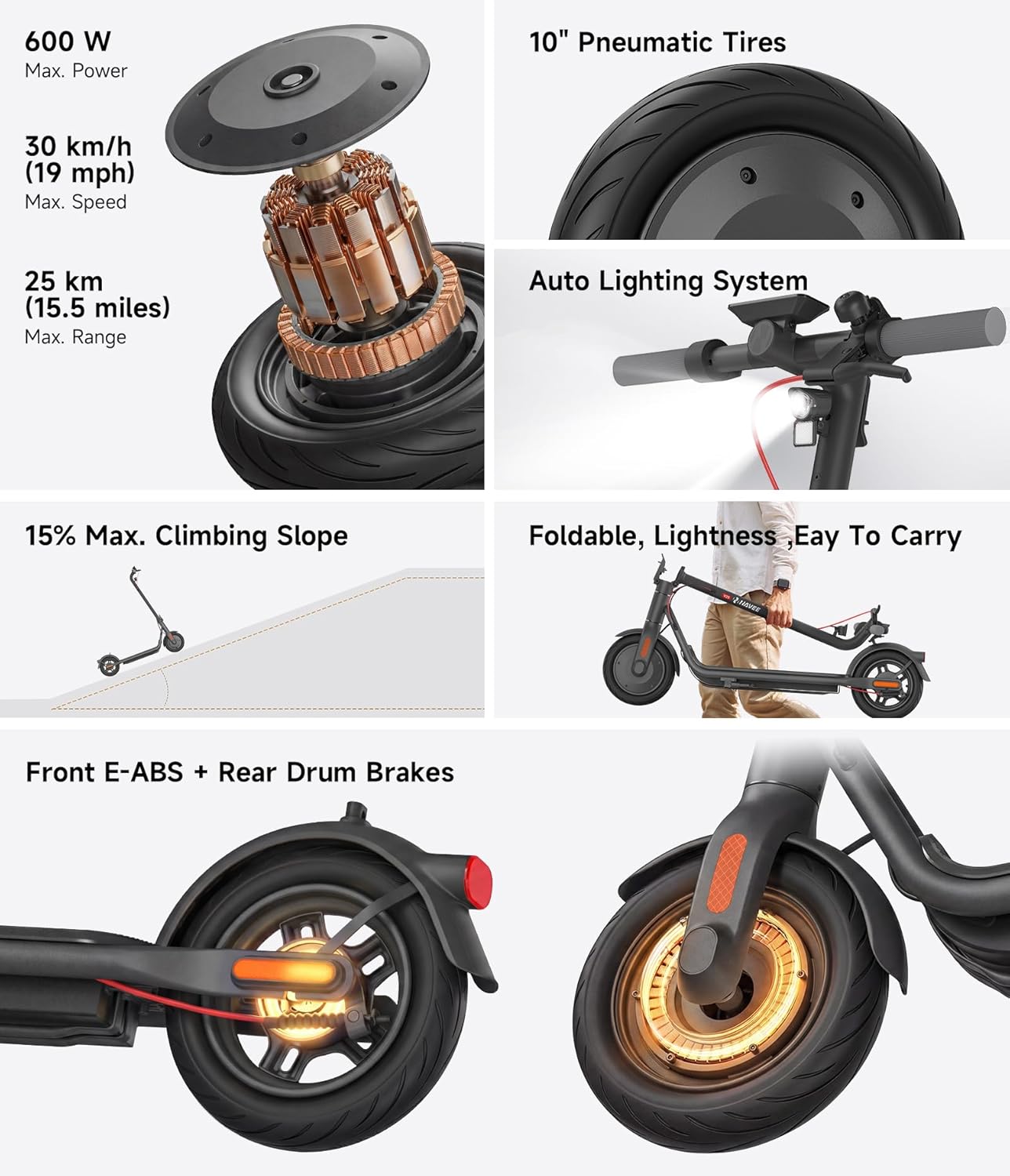

Figure 3.3: Close-up of the front E-ABS and rear drum brake for effective stopping power.

Operasi Umum Overview

Pikeun visual leuwihview of the NAVEE V25 Electric Scooter's features and operation, please watch this video:

4. Pangropéa

Proper maintenance ensures the longevity and optimal performance of your NAVEE V25 Electric Scooter.

Perawatan Ban

The V25 features 10-inch pneumatic tires for a comfortable ride. Regularly inspect tires for wear and tear, and maintain recommended pressure to prevent punctures and ensure optimal performance. The IPX5 waterproof design allows for riding in various weather conditions, but avoid submerging the scooter.

Figure 4.1: The 10-inch pneumatic tires provide enhanced grip and a comfortable ride.

Manajemén batré

The 36V 5.2Ah (183.6 Wh) large capacity battery provides a maximum travel range of up to 15.5 miles. An efficient energy recovery system helps extend the range. Always use the original adapter for charging and avoid overcharging. Store the scooter in a cool, dry place when not in use.

Figure 4.2: The scooter's battery is integrated into the deck, providing power for extended rides.

5. Cara ngungkulan

If you encounter issues with your NAVEE V25 Electric Scooter, consider the following common troubleshooting steps:

• Masalah Power On: Pastikeun batréna geus dieusian. Pariksa sadaya sambungan.
• Masalah Kinerja: Verify the selected speed mode. Check tire pressure.
• Konéktipitas Aplikasi: Ensure Bluetooth is enabled on your device and the scooter is powered on.
• Kode Kasalahan: Refer to the detailed user manual (accessible via the app) for specific error code interpretations and solutions.

6. Spésifikasi

7. Garansi jeung Rojongan

The NAVEE V25 Electric Scooter comes with a professional warranty:

• Garansi: 1-year warranty on the scooter. Specific components may have different warranty periods (e.g., 180 days). Refer to the full user manual for detailed warranty information.
• Palayanan palanggan: US-based professional 24-hour online service is available for support.
• Jaminan Uang Balik: 30 poé jaminan duit-balik.

For further assistance or to access the complete user manual, please utilize the NAVEE app or visit the official NAVEE support websitus.

8. Pamastian kualitas

NAVEE is committed to producing high-quality micro-mobility solutions. The V25 Electric Scooter undergoes rigorous testing and adheres to strict manufacturing standards.
